HD 250cd/M2 Industrial LCD Display 5.5 Inch IPS TFT LCD Screen 720x1280 Resolution
HD 250cd/M2 Industrial LCD Display 5.5 Inch IPS TFT LCD Screen 720x1280 Resolution
HD 250cd/M2 Industrial LCD Display 5.5 Inch IPS TFT LCD Screen 720x1280 Resolution
HD 250cd/M2 Industrial LCD Display 5.5 Inch IPS TFT LCD Screen 720x1280 Resolution
HD 250cd/M2 Industrial LCD Display 5.5 Inch IPS TFT LCD Screen 720x1280 Resolution
HD 250cd/M2 Industrial LCD Display 5.5 Inch IPS TFT LCD Screen 720x1280 Resolution
Specifications
Brand Name :
Jingtai
Model Number :
JT-5.5IPSHD
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
5.5 inch IPS HD
Resolution :
720*1280
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
5.5 inch IPS HD TFT LCD Display Screen
Product Specifications
Specification Value
Application Industrial Control
Number of pixels 720*1280 pixels
Active Area 68.04*120.96mm
Module Outline 70.24*127.9*1.44mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
Contrast Ratio 800MIN, 1000 (Typ)
NTSC 72% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

5.5HD-Inch TFT Display, Multi-Touch CTP TFT Display, MIPI Interface 5.5-Inch Display

5.5HD-Inch Multi-Touch CTP TFT MIPI Interface

Product Introduction

TFT (Thin Film Transistor) technology enables liquid crystal displays with fast response times and high color reproduction. The model JT-5.5IPSHD incorporates IPS technology, delivering near-180-degree wide viewing angles while maintaining color consistency and accuracy from any direction.

The capacitive touch functionality is driven by the controller chip, which supports multi-touch operations and ensures a smooth, responsive user experience. The combination of precise touch accuracy and rapid response makes this 5-inch TFT display ideal for applications requiring high-precision interaction. Jingtai Liquid Crystal Display Technology specializes in IPS-based solutions, with a portfolio of over 200 IPS products serving diverse industries.

The JT-5.5IPSHD offers a high-definition resolution of 720 × 1280 pixels, delivering sharp imagery and rich detail. With a standard brightness of 250 cd/m², it remains clearly visible even in brightly lit environments. Custom brightness options of up to 500 cd/m² or higher are available to meet specific project requirements.

This display is widely used in POS/PDA, tablets, automotive navigation systems, industrial control panels, and other applications where high-resolution visuals and intuitive multi-touch functionality are essential.

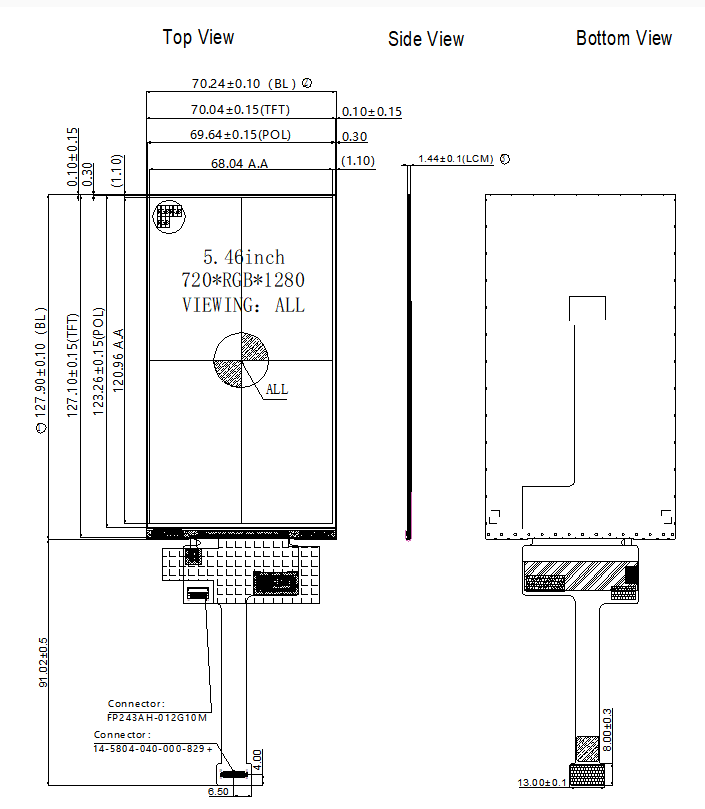

Industrial TFT Display HD 5.5 Inch, 5.5 Inch HD Industrial Capacitive Touch LCD Drawing
