3.4 Inch IPS TFT LCD Module 480×480 Smart Home Display MIPI Interface
3.4 Inch IPS TFT LCD Module 480×480 Smart Home Display MIPI Interface
Specifications
Luminance :
300 cd/m²(Typ)
Brand Name :
Jingtai
MOQ :
5pcs
CTP Structure :
GF/GFF
Model Number :
JT-3.4IPSSSH
Delivery Time :
1-5 weeks
Payment Terms :
T/T,,L/C,MoneyGram,D/A,D/P
Price :
1-20
Touch Screen :
CTP
Key Words :
3.4 Inch IPS TFT
Interface Definition :
SPI+RGB/MIPI
Resolution :
480*480
CTP Interface :
12c
Supply Ability :
2000K Pcs Per Month
Packaging Details :
Standard Exportation Package
Place of Origin :
Shenzhen/China
Certification :
ISO9001 / ISO14000
Viewing Angle :
85/85/85/85
Description

3.4 Inch IPS TFT LCD Module 480×480 Smart Home Display MIPI Interface

Overview

The 3.4 Inch IPS TFT LCD Module is a compact square display solution with 480×480 resolution, designed for smart home and embedded display applications. Featuring IPS technology and a Normally Black display mode, the module provides stable image performance and wide viewing angles for modern interface designs. With SPI, RGB, and MIPI interface support, it can be integrated into different control and display systems.


Display Features

  • 3.4 inch square IPS TFT LCD display with 480×480 resolution
  • Wide viewing angle of 85/85/85/85 for consistent screen visibility
  • Normally Black display mode helps improve display effect and contrast
  • 72% NTSC color performance for clear image presentation
  • SPI, RGB, and MIPI interfaces for flexible hardware compatibilit


Performance & Reliability

  • Contrast ratio up to 1000:1(Typ) for balanced image clarity
  • Brightness of 300 cd/m²(Typ) suitable for indoor applications
  • Compact module outline of 65.52×69.45×1.99mm
  • Operating temperature range from -30°C to +80°C
  • Stable performance for long-term embedded display use


Smart Home Applications

This TFT LCD module is suitable for smart home control panels, smart switches, automation terminals, environmental monitoring devices, and other compact embedded systems. The square display format supports modern UI layouts and information visualization while maintaining a clean appearance for smart device integration.

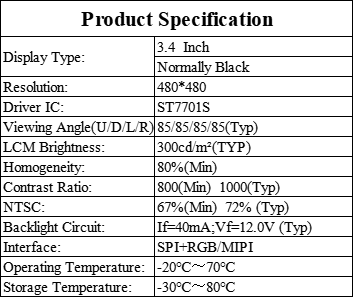

Product Specifications

Number Of Pixels

480*480pixels

Active Area

60.48*60.48mm

Module Outline

65.52*69.45*1.99mm

Aspect Ratio

1:1

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

800(Min) 1000(Typ)

NTSC

72%Typ

LCM Brightness

300 cd/m²(Typ)

Interface

SPI+RGB/MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

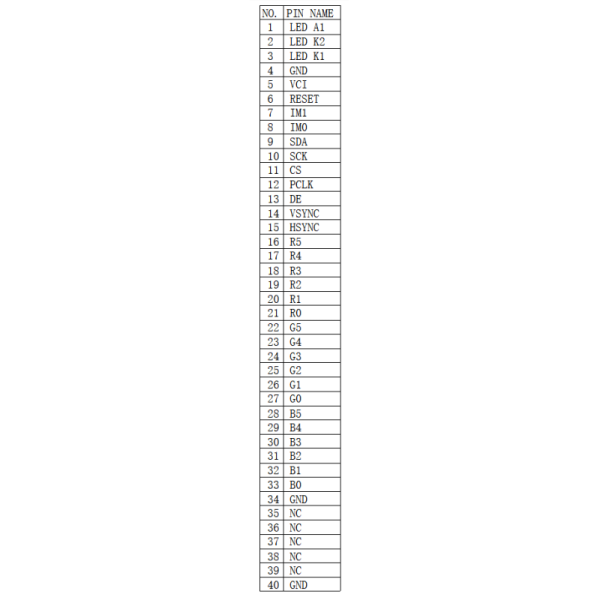

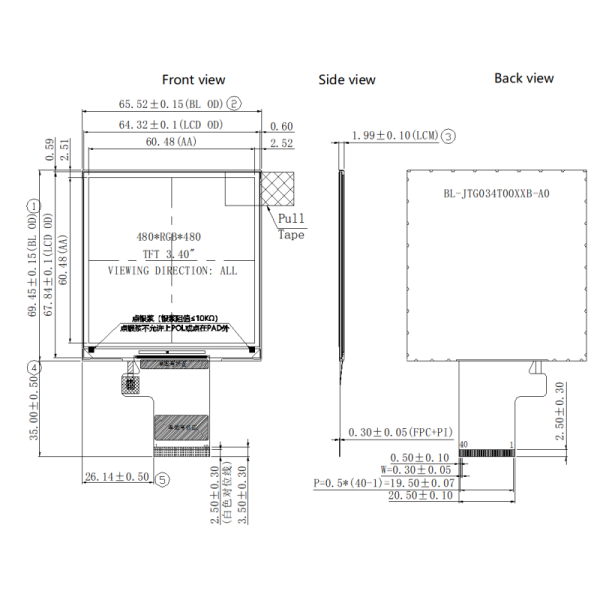

3.4 Inch IPS TFT LCD Module Drawing

3.4 Inch IPS TFT LCD Module 480×480 Smart Home Display MIPI Interface

3.4 Inch IPS TFT LCD Module 480×480 Smart Home Display MIPI Interface

3.4 Inch IPS TFT LCD Module 480×480 Smart Home Display MIPI Interface
