3.95 Inch Smart Home Display Module 480x480 IPS TFT LCD MIPI Screen
3.95 Inch Smart Home Display Module 480x480 IPS TFT LCD MIPI Screen
3.95 Inch Smart Home Display Module 480x480 IPS TFT LCD MIPI Screen
3.95 Inch Smart Home Display Module 480x480 IPS TFT LCD MIPI Screen
Specifications
Key Words :
3.95 Inch IPS TFT
Place of Origin :
Shenzhen/China
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ)
Viewing Angle :
80/80/80/80
MOQ :
5pcs
Interface Definition :
SPI+RGB/MIPI
Price :
1-20
Packaging Details :
Standard Exportation Package
Supply Ability :
2000K Pcs Per Month
Resolution :
480*480
Brand Name :
Jingtai
Touch Screen :
CTP
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Model Number :
JT-3.95IPS1SSH
Certification :
ISO9001 / ISO14000
CTP Interface :
12c
Delivery Time :
1-5 weeks
CTP Structure :
GF/GFF/GG
Description

3.95 Inch Smart Home Display Module 480x480 IPS TFT LCD MIPI Screen

Product Overview

This 3.95 Inch IPS TFT LCD Display Module features a 480×480 square resolution and is designed for Smart Home Display and Embedded Display applications. The compact square format helps maximize display space within limited installation areas, making the TFT LCD Display Module suitable for Smart Home Display systems, smart control panels and user interface applications.


Display Performance

• IPS TFT LCD technology supports clear visibility from different viewing positions.
• 480×480 square display format is suitable for Smart Home Display interfaces.
• Normally Black display mode provides stable display performance.
• Optional brightness versions are available for different installation environments.
• Suitable for Embedded Display applications requiring compact dimensions.


Interface And Integration

This TFT LCD Display Module supports MIPI Interface, SPI Interface and RGB Interface configurations. Multiple interface options provide flexibility for Embedded Display development and Smart Home Display projects. The MIPI Interface helps simplify integration with different hardware platforms and supports efficient system development.


Application Areas

• Suitable for Smart Home Display systems that require clear status monitoring and intuitive user interaction.
• Can be integrated into Embedded Display equipment to provide efficient information presentation and control functions.
• Applicable to Smart Home Controllers for displaying operating data, menu interfaces and system notifications.
• Suitable for Home Automation Display terminals that require a compact square display format and flexible interface options.
• Can be used in Automation Control Panels to support user interface display and device management functions.
• Applicable to Smart Wall Switch products where clear visual feedback and space-efficient design are important.
• Suitable for Environmental Monitoring Devices that need to display real-time operating status and parameter information.
• Can be integrated into User Interface applications requiring compact dimensions and stable display performance.

The IPS TFT LCD module is suitable for products that require compact display dimensions, efficient information presentation and flexible interface options.

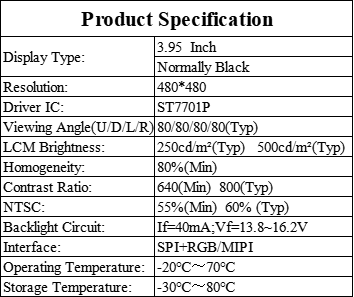

Product Specifications

Number Of Pixels

480*480pixels

Active Area

70.18*71.86mm

Module Outline

74.65*77.18*2.06mm

Aspect Ratio

1:1

Display Model

Normally Black

Viewing Angle(CR>10)

80/80/80/80

Contrast Ratio

640(Min) 800(Typ)

NTSC

60%Typ

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ)

Interface

SPI+RGB/MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

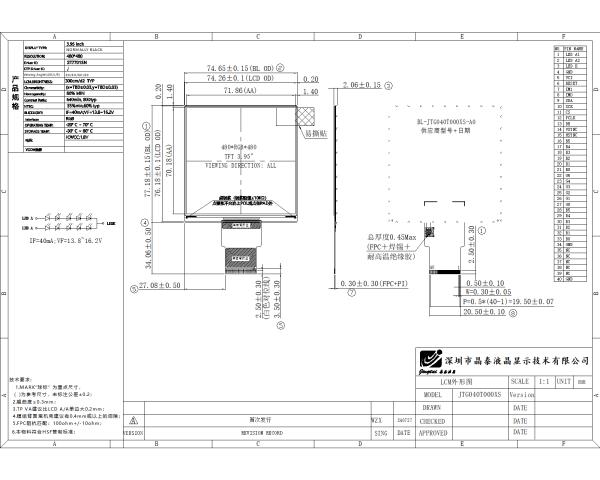

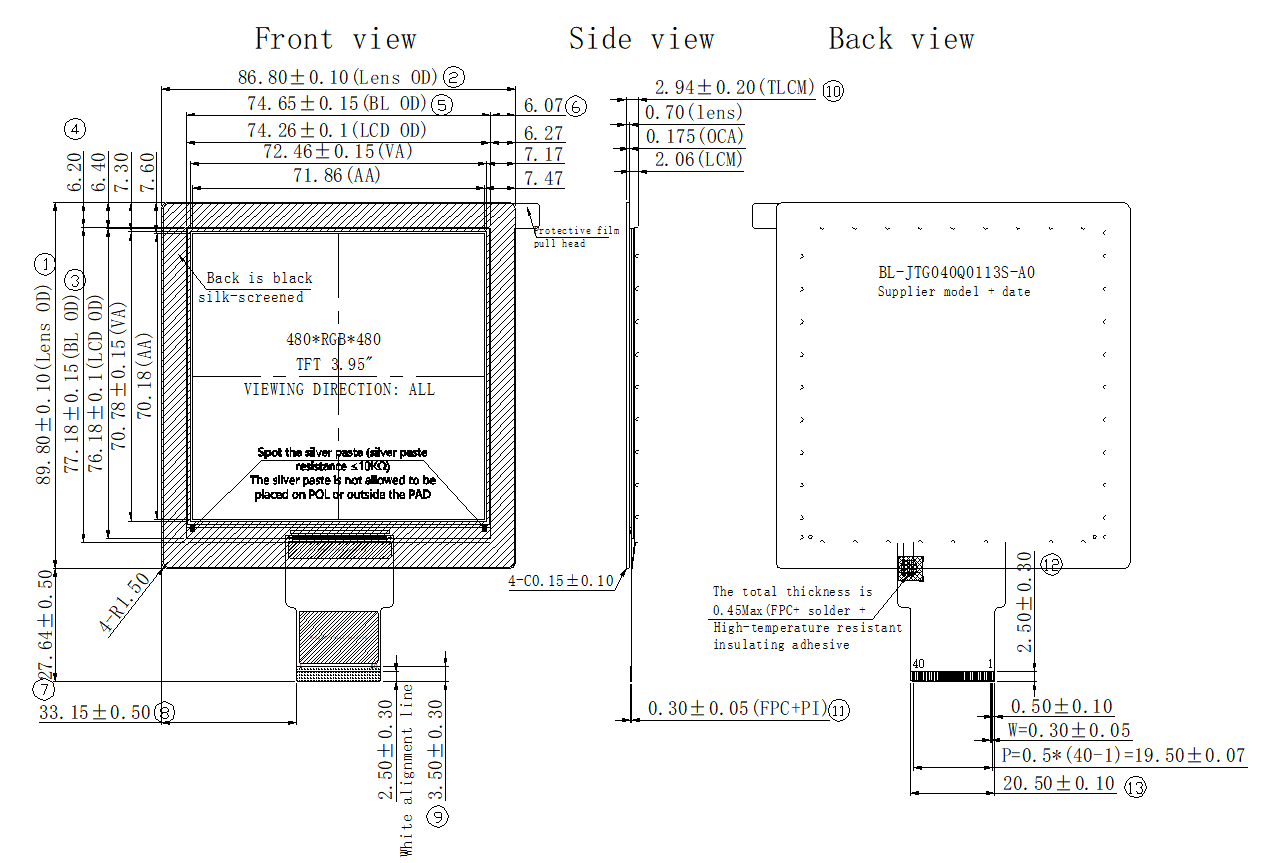

3.95 Inch Smart Home Display Module Drawing
