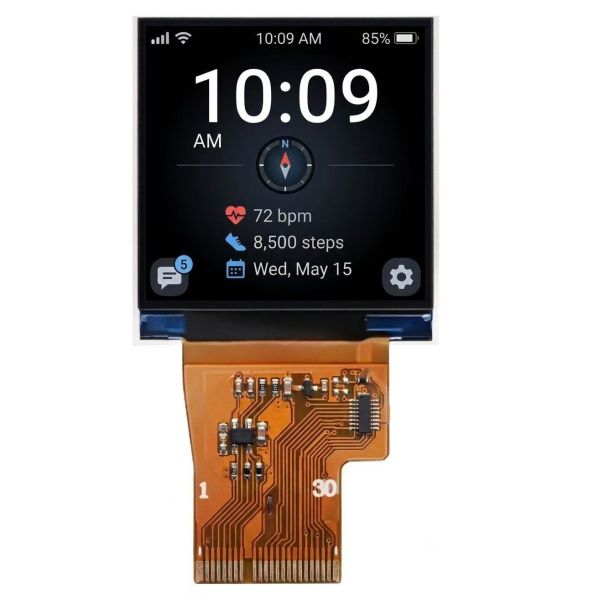

1.54 Inch IPS 240*240 CTP Touch Smart Home TFT Display Module Screen

Product Overview

- Square Design and Slim Structure
This is a small 1.54 inch square TFT LCD display module made for smart home devices, like smart wall switches and thermostats. It has a 240*240 pixel resolution and a 1:1 square ratio. The active display area is 27.72*27.72mm, and the total module size is 31.52*33.72*1.97mm. Because it is only 1.97mm ultra-thin, it is very easy to install into tiny housings or sleek household appliances.

- Wide Viewing Angle and Clear Colors
The screen uses advanced IPS display technology. It gives a real wide viewing angle of 80/80/80/80 degrees from top, bottom, left, and right sides. This means family members can see the text and icons very clearly from any position or angle in the room. The display colors stay bright and sharp, and the image will not fade or turn dark.

- Sensitive Touch Control and Easy Connection
To bring a great user experience, this module includes a sensitive GF/GFF capacitive touch screen (CTP) with an easy I2C interface. It reacts to your fingers quickly and smoothly. For hardware connection, this module supports MCU, SPI, and RGB interfaces. This flexible design helps engineers connect the display screen to different product mainboards very easily.

- Good Brightness and Reliable Durability
The display brightness is 400 cd/m2, and the contrast ratio is 900:1. This makes the user interface very easy to read under normal home indoor lighting. It can work well in cold and hot weather from -20 to +70 degrees Celsius, and can be stored safely from -30 to +80 degrees Celsius, which ensures a stable long-time work in your house.

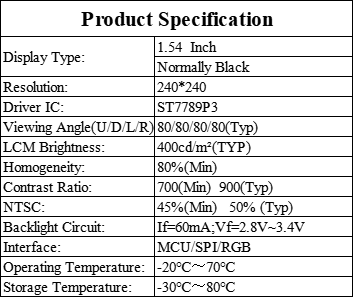

Product Specifications

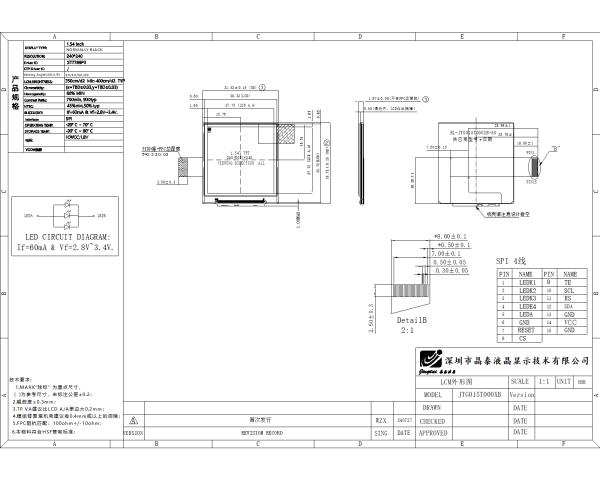

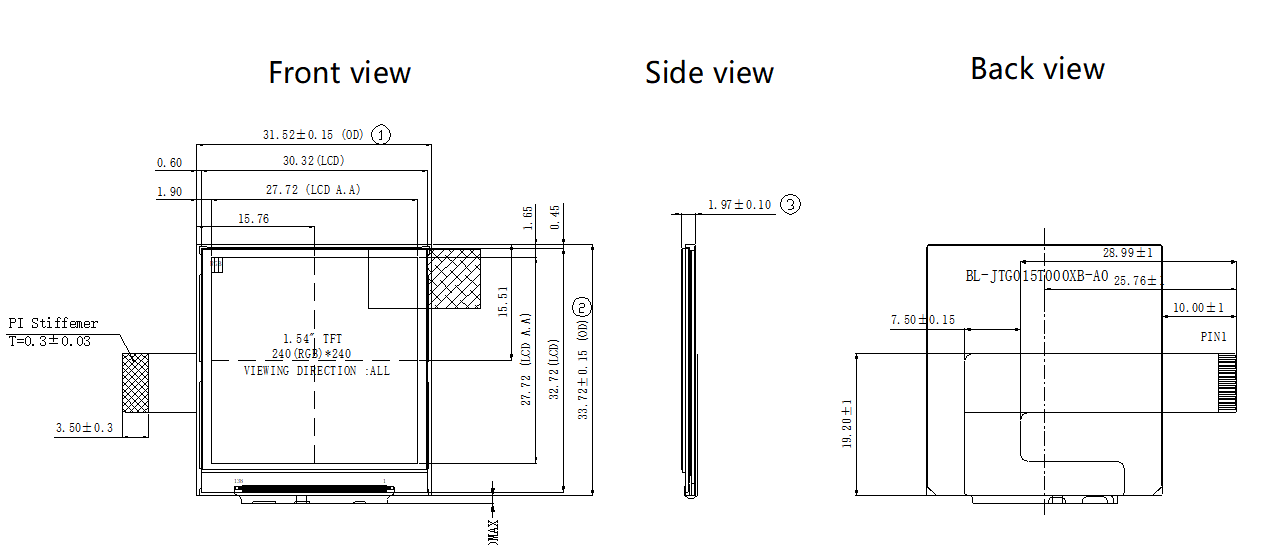

1.54 Inch IPS 240*240 CTP Touch Smart Home TFT Display Module Drawing
