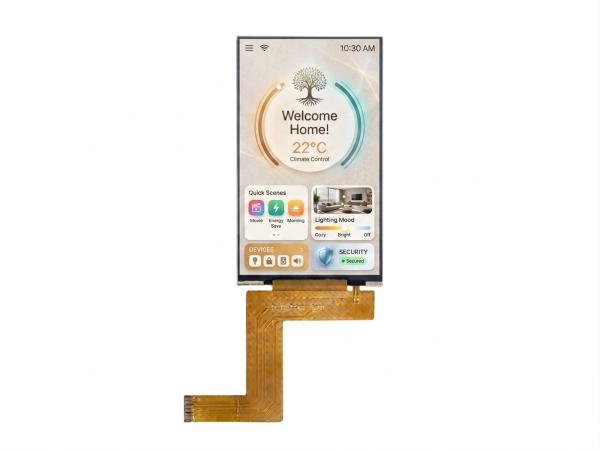

4.3 Inch 480×800 IPS TFT LCD Display for Smart Home Control Panels

Product Overview

The 4.3 inch IPS TFT LCD display is designed for smart home control panels, home automation systems, and embedded HMI applications where clear interface visibility, compact structure, and stable graphical performance are required.

It is particularly suitable for wall-mounted control interfaces such as lighting control, HVAC systems, security panels, and IoT-based smart home devices. The 480×800 portrait resolution supports modern vertical UI layouts commonly used in intelligent control terminals.

This display is not only a visual component but a user interface carrier for embedded systems, helping developers build structured and intuitive control experiences.

Why This Display Fits Smart Home Control Systems

In smart home and building automation products, display readability directly affects user interaction efficiency.

This module is designed for scenarios where:

• The display is installed at a fixed angle (wall-mounted panels)
• Multiple users interact from different positions
• UI clarity must remain stable under indoor lighting conditions
• Compact enclosure design is required without sacrificing interface readability

By addressing these practical conditions, the display supports more reliable real-world deployment in smart control environments.

IPS Technology for Multi-Angle Visibility

The IPS structure provides consistent image performance across different viewing angles, reducing color shift and contrast degradation when the screen is viewed from the side or below.

This is especially important for smart home control panels installed in living spaces, where users do not always interact directly in front of the screen.

As a result, interface elements such as icons, text, and status indicators remain clearly readable during daily operation.

Optimized 480×800 Portrait UI Structure

The 480×800 resolution is optimized for vertical interface layouts, which are widely used in smart control systems.

It allows developers to design:

• Vertical menu navigation
• Icon-based control dashboards
• Multi-level system interfaces
• Status monitoring screens with structured layout

This makes it suitable for modern HMI design trends in smart home and IoT devices.

Compact Design for Embedded System Integration

The 4.3 inch form factor provides a practical balance between display readability and hardware size constraints.

It is commonly integrated into:

• Smart wall panels
• Embedded HMI devices
• IoT control terminals
• Industrial control interfaces

Its compact structure supports enclosure optimization while maintaining sufficient display area for user interaction.

Key Features

• 4.3 inch IPS TFT LCD display
• 480×800 portrait resolution optimized for UI design
• Wide viewing angle for stable multi-position visibility
• Compact form factor for embedded integration
• Suitable for smart home and HMI applications
• Designed for structured graphical interface systems

Typical Applications

• Smart Home Control Panels
• Home Automation Systems
• Smart Thermostat Interfaces
• Building Automation Systems
• IoT Control Devices
• Smart Wall Switch Panels
• Energy Management Systems
• Security Control Interfaces
• Industrial HMI Terminals

Conclusion

The 4.3 inch IPS TFT LCD display is designed for embedded smart control systems that require stable viewing performance, structured UI layout support, and compact integration capability.

It is suitable for smart home and industrial HMI applications where interface clarity, installation flexibility, and system integration efficiency are key design requirements.

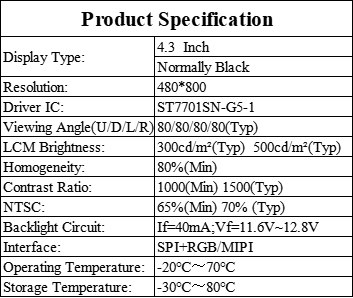

Product Specifications

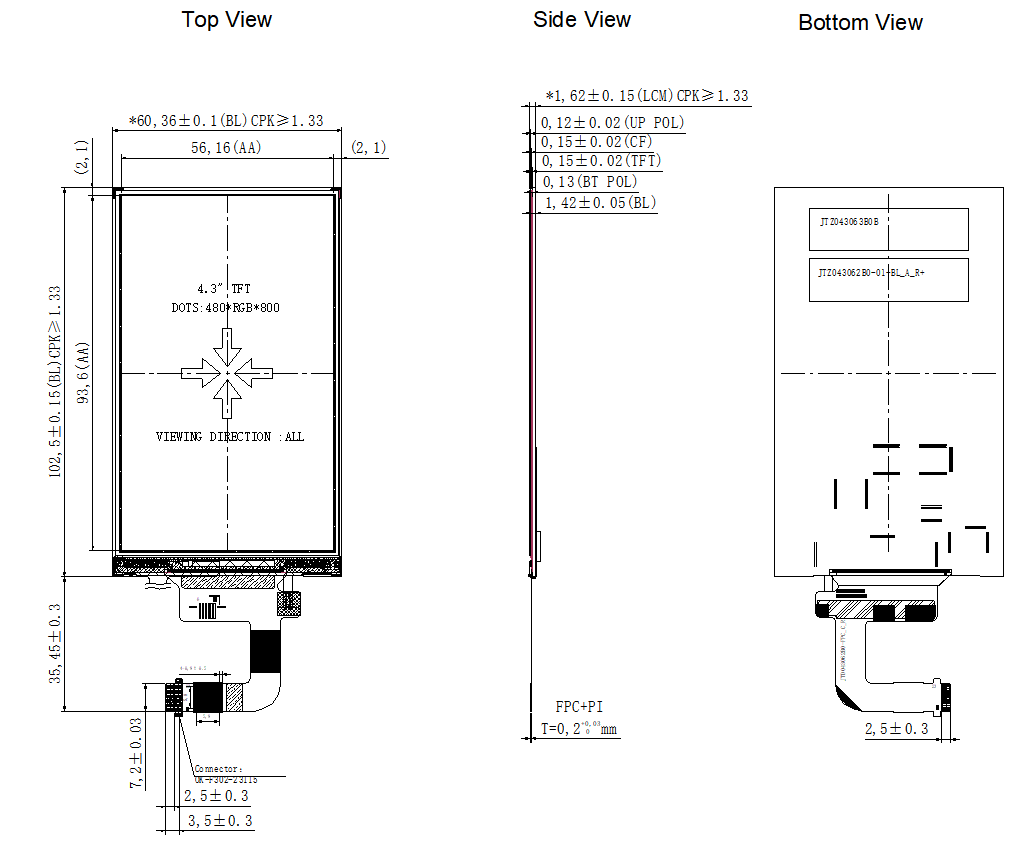

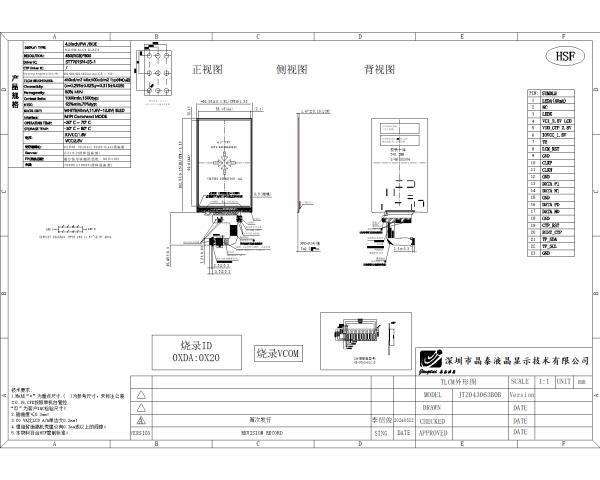

Module Drawing
