3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display
3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display
3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display
3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display
Specifications
Supply Ability :
2000K Pcs Per Month
Viewing Angle :
60/60/70/70
Certification :
ISO9001 / ISO14000
Touch Screen :
CTP
Price :
1-20
Packaging Details :
Standard Exportation Package
Model Number :
JT-3.5TNSH
CTP Structure :
GF/GFF
Delivery Time :
1-5 weeks
CTP Interface :
12c
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Brand Name :
Jingtai
Key Words :
3.5 Inch TN TFT
Interface Definition :
MCU/SPI/RGB/MIPI
Resolution :
320*480
Luminance :
250 cd/m²(Typ) 600 cd/m²(Typ)
Description

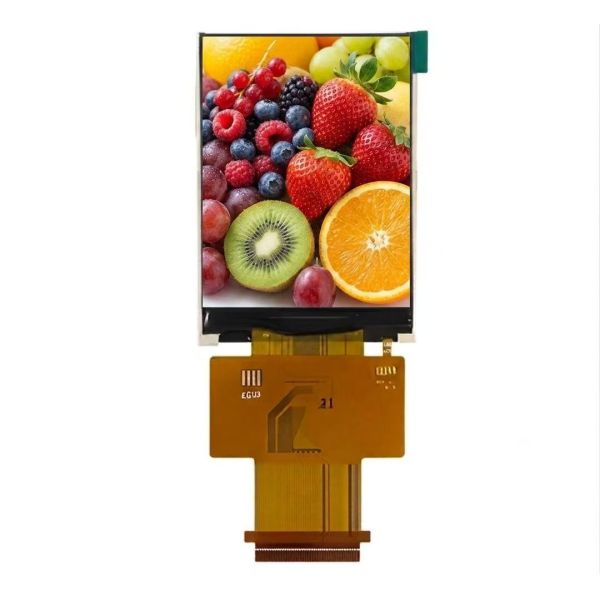

3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display


- Where You Can Use This Module
This 3.20*480 resolution 3.5 inch tft lcd display module is designed for smart home control devices. It is a very good hardware choice for smart wall switch panels, central home controllers, security alarms, and household appliance screens. Because it is simple to use and works stably, it helps global buyers build their home electronics quickly.


- Module Size and Thin Outline
The number of pixels for this screen is 320*480 with a 3:2 aspect ratio. The active area that shows pictures is 48.96*73.44mm, and the total module outline size is 54.94*85.50mm. It has a thin body with a thickness of only 2.40mm. This small and compact design makes it very easy for factory workers to install it into narrow wall boxes.


- Stable TN Panel and Clear Display
This product uses a reliable TN display panel with a 500:1 contrast ratio. It gives a good viewing angle of 60/60/70/70 degrees. This ensures that users can read the words, menus, and control icons clearly on the household smart switch screen when they stand in front of the device.


- High Brightness and Four Interfaces
This display module is very bright and can reach 600 cd/m2, so people can see the screen clearly even under bright indoor room lights. It features a sensitive capacitive touch screen (CTP) on top with a GF/GFF structure and an I2C connection for smooth touch. The best part is it supports four interfaces: MCU, SPI, RGB, and MIPI, giving your mainboard the best compatibility.

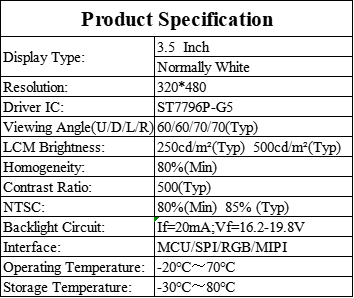

Product Specifications

Number Of Pixels

320*480pixels

Active Area

48.96*73.44mm

Module Outline

54.94*85.50*2.40mm

Aspect Ratio

3:2

Display Model

Normally White

Viewing Angle(CR>10)

60/60/70/70

Contrast Ratio

500(Typ)

NTSC

85%Typ

LCM Brightness

250 cd/m²(Typ) 600 cd/m²(Typ)

Interface

MCU/SPI/RGB/MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

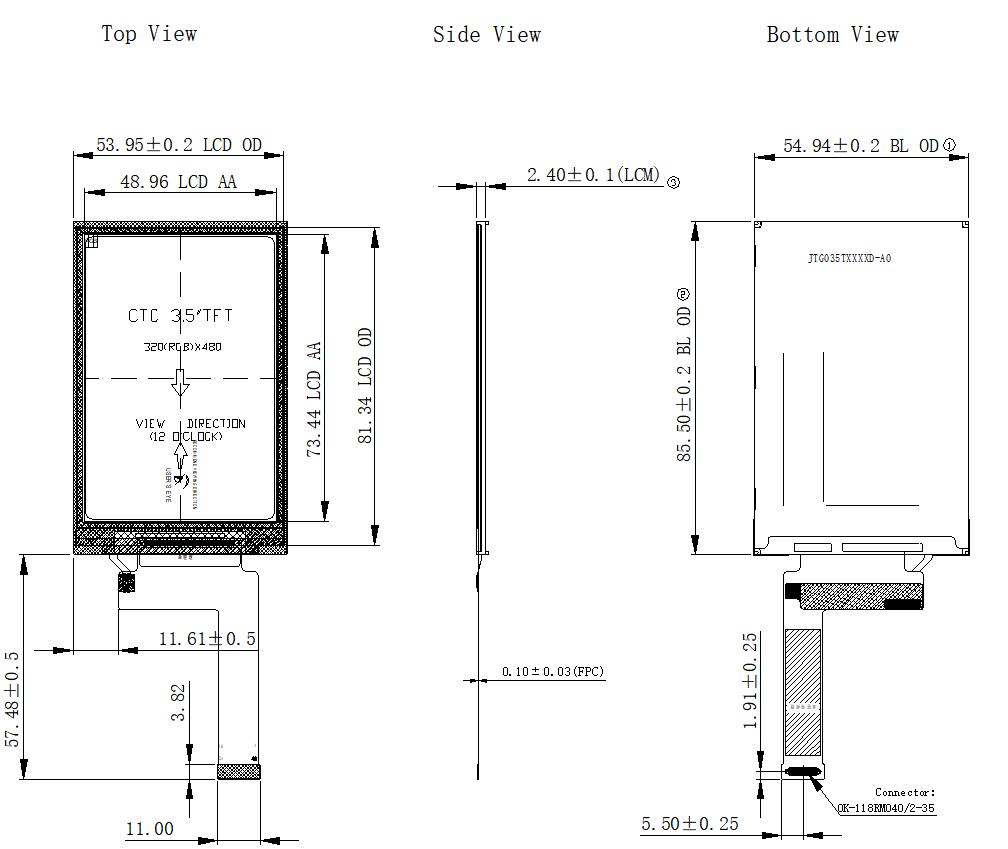

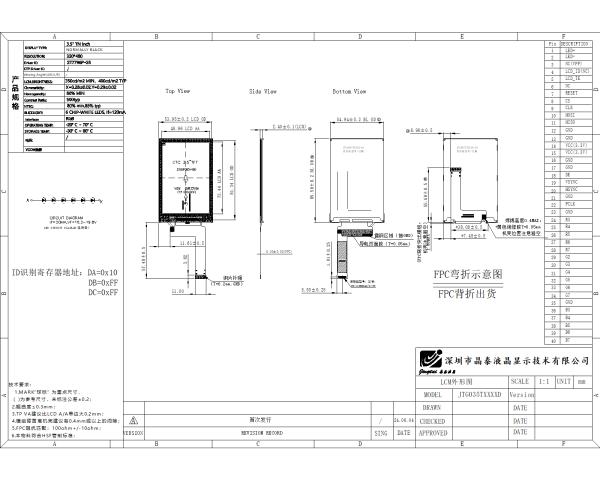

3.5 Inch TFT LCD Module Drawing

3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display

3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display

3.5 Inch 320x480 TN TFT LCD Module For Smart Home Control Display
