3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface

Product Overview

This 3.95 inch IPS TFT LCD Display Module features a 720×720 resolution and a 1:1 square display format. Designed for Smart Home Display applications, the module is suitable for Embedded Display systems, smart control terminals and automation control panels. The IPS TFT LCD structure supports a viewing angle of 85/85/85/85, helping maintain clear screen visibility from different viewing positions.

Display Performance

• The TFT LCD Display Module adopts Normally Black display mode.
• IPS TFT LCD technology provides a viewing angle of 85/85/85/85 for clear visibility from different directions.
• The display supports a typical contrast ratio of 1200:1 and a typical NTSC color gamut of 68%.
• Brightness options of 250 cd/m² and 500 cd/m² are available for different Smart Home Display requirements.

Interface And Integration

This IPS TFT LCD module supports MIPI Interface, SPI Interface and RGB Interface configurations. Multiple interface options provide flexibility for Embedded Display development and Smart Home Display products. The module can be integrated into automation control panels, user interfaces and various embedded systems requiring a compact square display solution.

Applications

• Suitable for Smart Home Display systems and Embedded Display equipment.
• Can be integrated into automation control panels and intelligent control terminals.
• Applicable to wall switches, environmental monitoring devices and smart control products.
• Suitable for user interfaces and home automation equipment requiring a compact square TFT LCD Display Module.

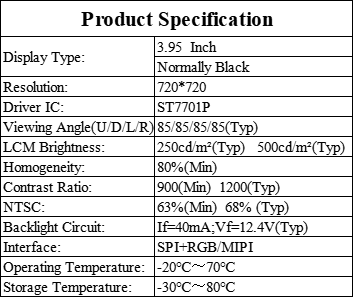

Product Specifications

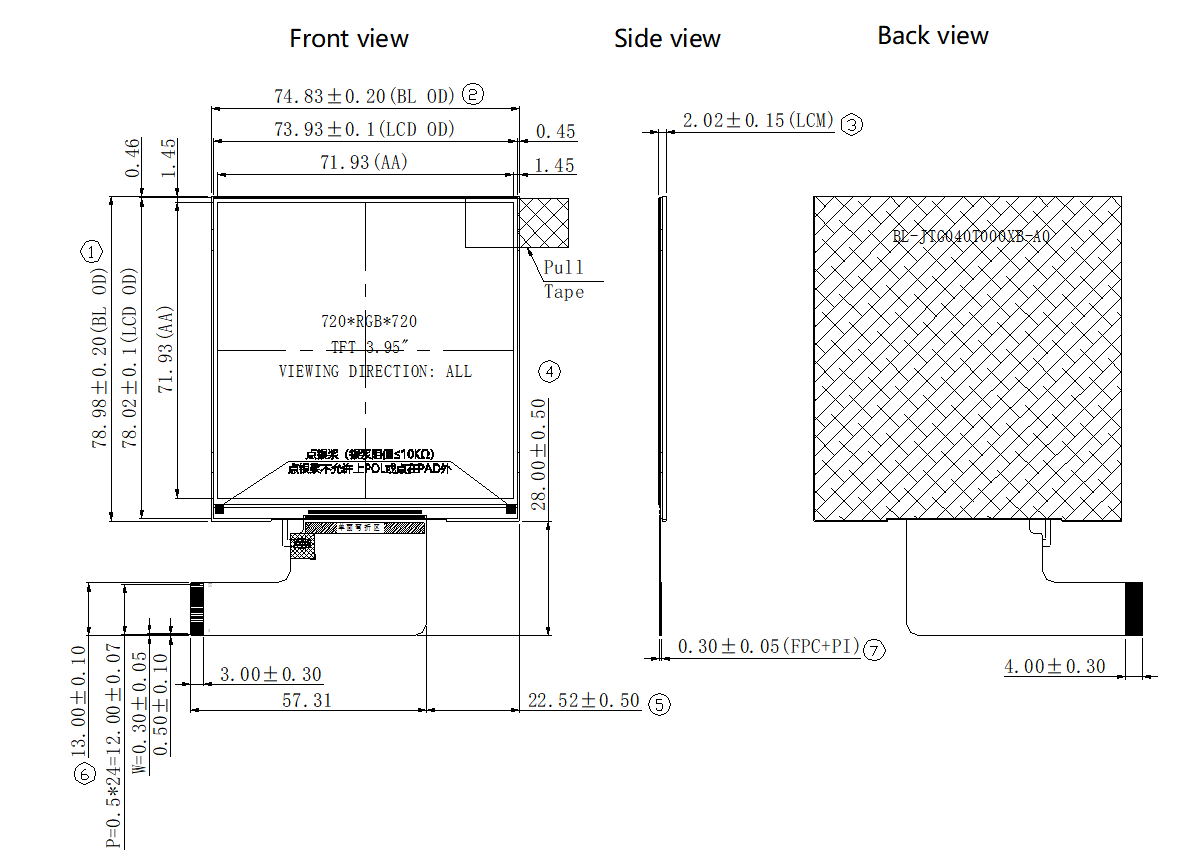

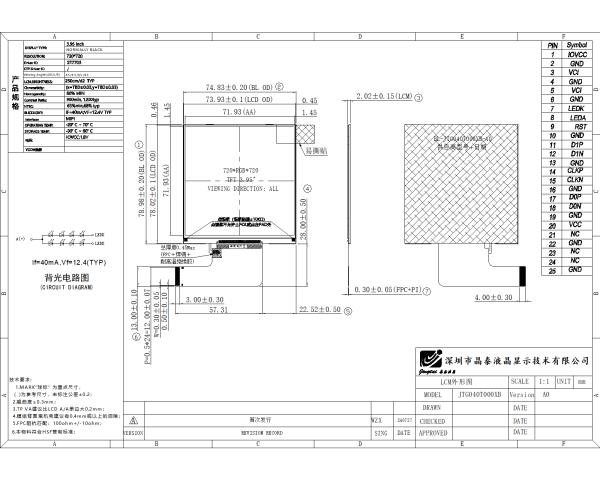

3.95 Inch IPS TFT LCD Display Module Drawing
