3.3 Inch IPS TFT LCD Module 320×480 QSPI RGB Interface With Capacitive Touch Panel
3.3 Inch IPS TFT LCD Module 320×480 QSPI RGB Interface With Capacitive Touch Panel
3.3 Inch IPS TFT LCD Module 320×480 QSPI RGB Interface With Capacitive Touch Panel
3.3 Inch IPS TFT LCD Module 320×480 QSPI RGB Interface With Capacitive Touch Panel
Specifications
Interface Definition :
QSPI/RGB
Certification :
ISO9001 / ISO14000
MOQ :
5pcs
Viewing Angle :
85/85/85/85
CTP Interface :
12c
Supply Ability :
2000K Pcs Per Month
Delivery Time :
1-5 weeks
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Resolution :
320*480
CTP Structure :
GF/GFF
Luminance :
300 cd/m²(Typ) 600 cd/m²(Typ)
Brand Name :
Jingtai
Price :
1-20
Key Words :
3.3 Inch IPS TFT
Model Number :
JT-3.3IPSSH
Place of Origin :
Shenzhen/China
Packaging Details :
Standard Exportation Package
Touch Screen :
CTP
Description

3.3 Inch IPS TFT LCD Module 320×480 QSPI RGB Interface With Capacitive Touch Panel


This 3.3 inch TFT LCD module is designed for smart home control panels, HMI devices, and a wide range of embedded applications. The IPS display technology ensures a wide viewing angle and stable image performance, making the screen easy to read from different directions. Its compact and lightweight design allows seamless integration into space-limited devices while maintaining reliable operation.


The module supports both QSPI and RGB interfaces, enabling engineers to quickly integrate it into diverse control systems and electronic products. Combined with a capacitive touch panel, it allows smooth user interaction and supports modern graphical user interfaces. It is built to be durable, capable of operating under a wide temperature range, making it suitable for both indoor and industrial environments.


This LCD module is ideal for smart home terminals, industrial controllers, IoT equipment, smart appliances, and other interactive display solutions. Its precise touch response, high contrast ratio, and bright IPS panel provide a premium user experience while maintaining energy efficiency. Engineers and designers will find it a versatile choice for developing professional-grade embedded devices.


In addition, this module is designed for easy integration into control panels, medical devices, portable instruments, and industrial monitoring equipment. It offers consistent performance even under continuous operation and provides clear visibility in various lighting conditions. Its stable and responsive touch functionality ensures smooth operation in demanding applications, making it a reliable solution for both commercial and industrial products.


Key Features

  • IPS wide viewing angle technology
  • Capacitive touch operation
  • QSPI and RGB interface support
  • Compact module design
  • Suitable for embedded systems
  • Stable display performance
  • Designed for smart home and HMI applications


Applications

  • Smart Home Control Panels
  • HMI Devices
  • Industrial Controllers
  • IoT Equipment
  • Smart Appliances
  • Portable Electronic Devices
  • Medical Instruments
  • Industrial Monitoring Equipment

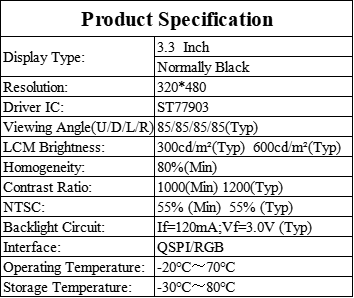

Product Specifications

Number Of Pixels

320*480pixels

Active Area

46.46*69.7mm

Module Outline

49.76*78.36*2.21mm

Aspect Ratio

3:2

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

1000(Min) 1200(Typ)

NTSC

60%Typ

LCM Brightness

300 cd/m²(Typ) 600 cd/m²(Typ)

Interface

QSPI/RGB

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

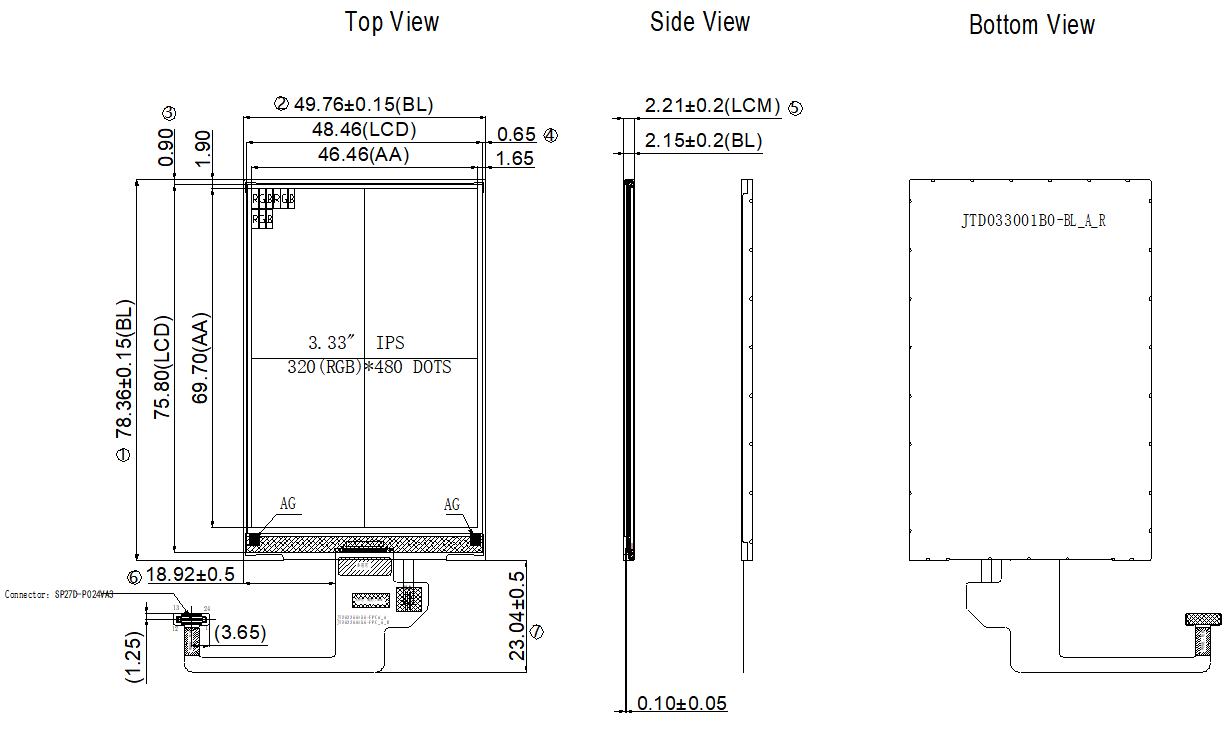

3.3 Inch TFT LCD Module Drawing
