Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠
Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠
Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠
Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠
Specifications
Key Words :
3.2 Inch IPS TFT
Luminance :
600 cd/m²(Typ)
CTP Structure :
GF/GFF
Brand Name :
Jingtai
Place of Origin :
Shenzhen/China
Model Number :
JT-3.2IPSSH
Viewing Angle :
80/80/80/80
Price :
1-20
MOQ :
5pcs
Supply Ability :
2000K Pcs Per Month
Packaging Details :
Standard Exportation Package
Certification :
ISO9001 / ISO14000
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Interface Definition :
MCU/SPI/RGB
Touch Screen :
CTP
Resolution :
240*320
CTP Interface :
12c
Delivery Time :
1-5 weeks
Description

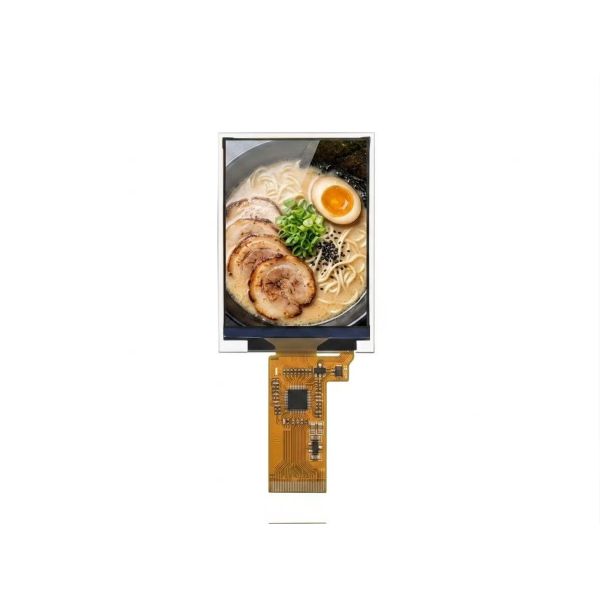

3.2 Inch IPS 240*320 CTP Touch Smart Home TFT LCD Display Module

- Where You Can Use This Module
This 3.2 inch tft lcd display module is very good for many smart home applications. It is a perfect choice for modern wall switches, digital thermostat display units, house security alarms, and small kitchen appliance controllers. Because it is simple to use and fits wall boxes easily, it can help global buyers upgrade their house hardware equipment without any trouble.


- Module Size and Slim Body
The resolution of this tft display module is 240*320 pixels. The glass part that shows clear pictures is 48.6*64.8mm, and the total module outer size is 53.6*73.0mm. It has a very thin body with a thickness of only 2.88mm. This small and compact design makes it very easy for factory workers to install it into tiny plastic housings.


- Clear IPS Panel and Wide View
This product uses an advanced tft lcd module panel with high-grade IPS technology. It gives a very wide viewing angle of 80 degrees from the top, bottom, left, and right sides. This means users can see the control icons and words very clearly from any direction in the room, and the image colors will not change or blur.


- Bright Display and Easy Finger Touch
This is a bright display with 600 cd/m2, making it very easy to read even under bright indoor room lights. It features a sensitive capacitive touch screen on top with an I2C connection, so it responds to your finger touch quickly and smoothly. It supports MCU, SPI, and RGB interfaces to match different mainboards, ensuring a stable long-time work.

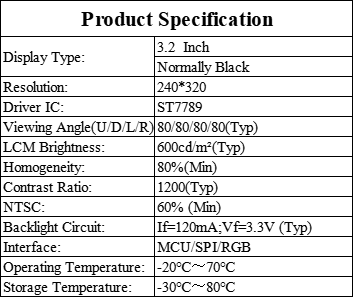

Product Specifications

Number Of Pixels

240*320pixels

Active Area

48.6*64.8mm

Module Outline

53.6*73.0*2.88mm

Aspect Ratio

4:3

Display Model

Normally Black

Viewing Angle(CR>10)

80/80/80/80

Contrast Ratio

1200(Typ)

NTSC

60%Typ

LCM Brightness

600 cd/m²(Typ)

Interface

MCU/SPI/RGB

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

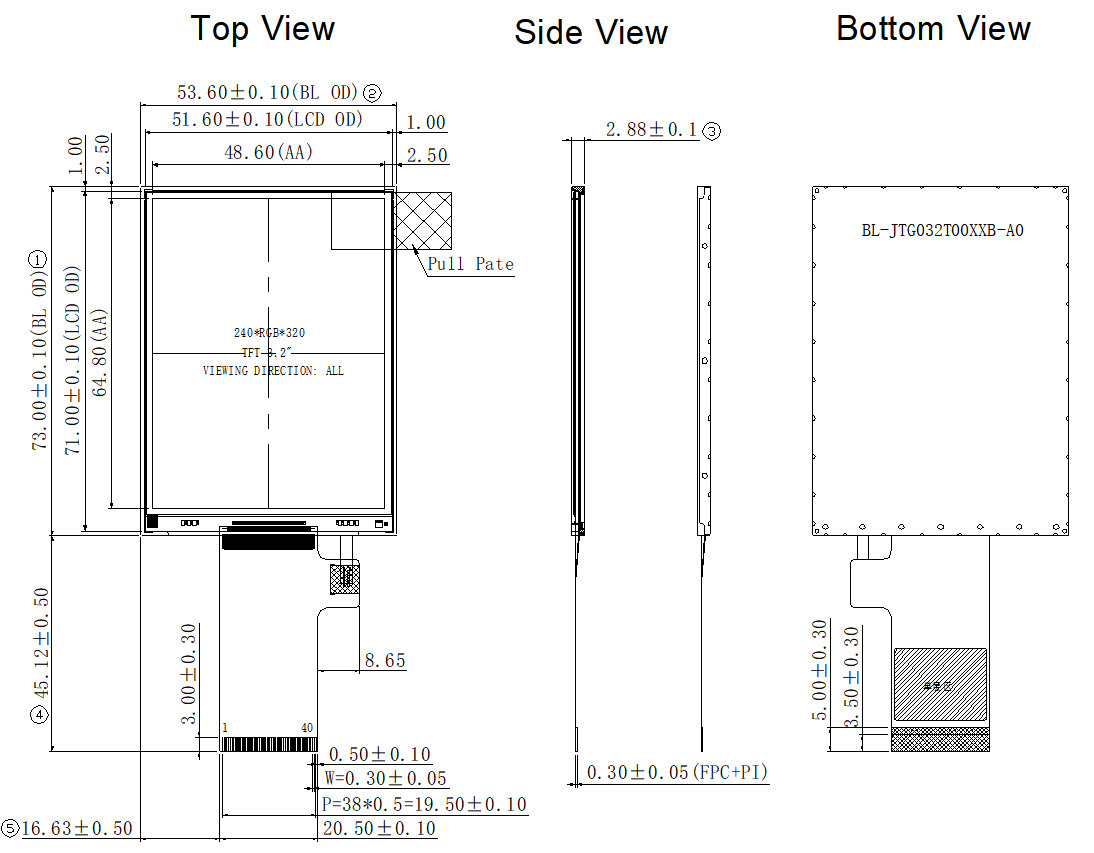

3.2 Inch TFT LCD Module Drawing


Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠

Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠

Bright 3.2 Inch IPS 240x320 CTP Touch Smart Home Display Module⁠
