3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home
3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home
3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home
3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home
Specifications
Packaging Details :
Standard Exportation Package
Interface Definition :
SPI+RGB/MIPI
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Resolution :
480*800
Place of Origin :
Shenzhen/China
Price :
1-20
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K Pcs Per Month
Brand Name :
Jingtai
Delivery Time :
1-5 weeks
CTP Interface :
12c
CTP Structure :
GF/GFF
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ)
Model Number :
JT-3.53IPSSH
Viewing Angle :
85/85/85/85
Key Words :
3.53 Inch IPS TFT
MOQ :
5pcs
Touch Screen :
CTP
Description

3.53 Inch IPS TFT LCD Display Module with Capacitive Touch


Product Description

This 3.53 inch IPS TFT LCD display module is designed for smart home control systems, HMI devices, and embedded electronic products. With a 480×800 resolution and capacitive touch technology, it provides clear image presentation and responsive touch operation for modern user interfaces.


The IPS panel delivers wide viewing angles and stable color performance, allowing information to remain visible from different directions. This makes the module suitable for applications where users interact with the display frequently, such as control panels, smart terminals, and automation equipment.

The integrated capacitive touch panel offers smooth and accurate touch response, helping users navigate menus and operate functions more efficiently. Combined with a compact structure, the module can be easily integrated into devices where installation space is limited.


Supporting SPI, RGB, and MIPI interfaces, the display provides flexible integration options for different hardware platforms. Its reliable performance makes it suitable for a wide range of interactive display applications.


Key Features

  • IPS technology helps provide clear images and stable color performance from multiple viewing angles.
  • The capacitive touch panel enables smooth and responsive interaction for modern graphical user interfaces.
  • 480×800 resolution supports clear display of icons, graphics, and operating information.
  • SPI, RGB, and MIPI interface options offer flexibility for product development and system integration.
  • Compact module design allows easy installation in embedded and space-limited devices.


Applications

  • Suitable for smart home control panels used for lighting, security, and environmental management.
  • Ideal for HMI equipment requiring clear display performance and convenient touch operation.
  • Can be integrated into IoT terminals, smart appliances, and portable electronic devices.
  • Applicable to industrial control equipment, monitoring systems, and other embedded display applications.

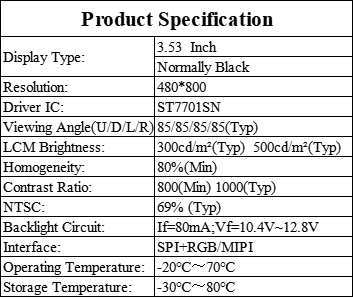

Product Specifications

Number Of Pixels

480*800pixels

Active Area

45.36*75.6mm

Module Outline

51.32*86.61*3.56mm

Aspect Ratio

5:3

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

800(Min) 1000(Typ)

NTSC

69%Typ

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ)

Interface

SPI+RGB/MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

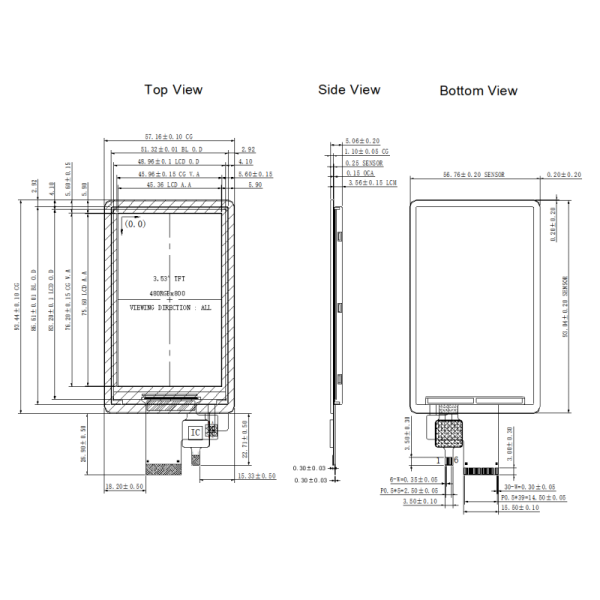

3.53 Inch TFT LCD Module Drawing

3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home

3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home

3.53 Inch IPS TFT LCD Module 480×800 Capacitive Touch For Smart Home
