Three Piece Welded Ball Valve For High Precision Fields BA EP Grade
Three Piece Welded Ball Valve For High Precision Fields BA EP Grade
Specifications
Brand Name :
WEYO
Model Number :
BA/EP
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Material :
Stainless steel
Description

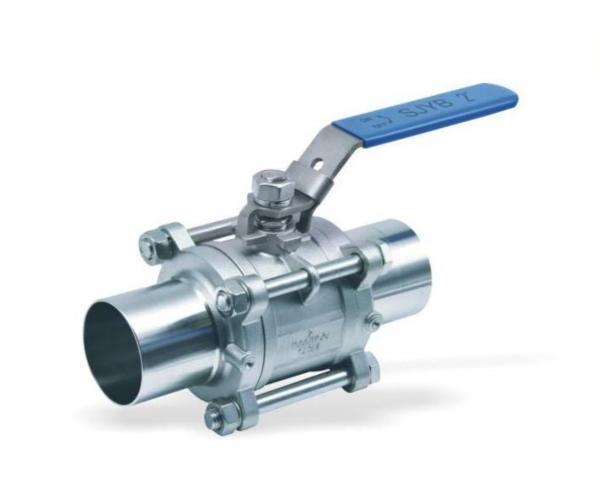

BA/EP grade three-piece welded ball valve with excellent sealing performance , made of corrosion-resistant stainless steel , Suitable for high-precision fields such as vacuum

BA/EP grade three-piece welded ball valve with excellent sealing performance, made of corrosion-resistant stainless steel, ensures the purity of the medium. Suitable for high-precision fields such as vacuum and semiconductors, it enables quick opening and closing, ensuring stable and safe system operation.

Three Piece Welded Ball Valve For High Precision Fields BA EP Grade

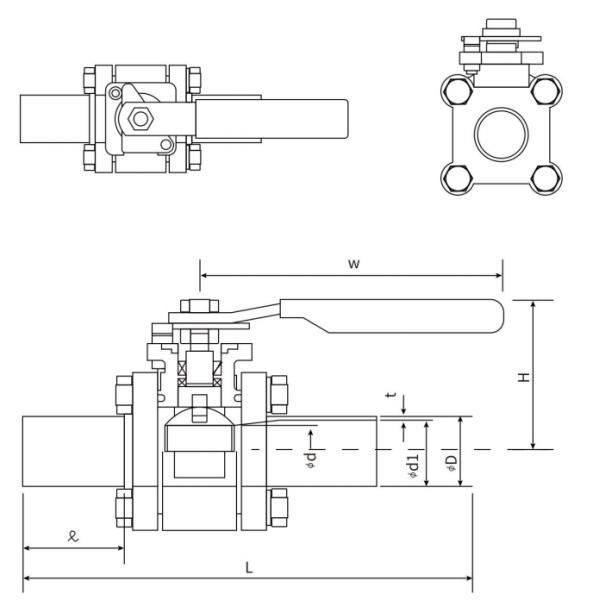

size φd φd1 φD t H L Q W
15A 15.0 18.4 21.7 1.65 59 129.8 40.0 130
20A 20.0 23.9 27.2 1.65 63 140.9 40.0 130
25A 25.0 30.7 34.0 1.65 75 186 76.2 165
32A 31.8 39.4 42.7 1.65 79 177 76.2 165
40A 38.1 45.3 48.6 1.65 94 190 38.1 200

(Sch 5S)

name of parts material
ASTM JIS
Valve opening degree CF3M SCS16A
valve body CF8M SCS14A
valve ball CF8M SCS14A
ball seat PTFE
V-shaped valve stem packing PTFE
handle SUS304

Three Piece Welded Ball Valve For High Precision Fields BA EP GradeThree Piece Welded Ball Valve For High Precision Fields BA EP GradeThree Piece Welded Ball Valve For High Precision Fields BA EP Grade

name of parts material
ASTM JIS
Valve opening degree CF3M SCS16A
valve body CF8M SCS14A
valve ball CF8M SCS14A
ball seat PTFE
V-shaped valve stem packing PTFE
handle SUS304

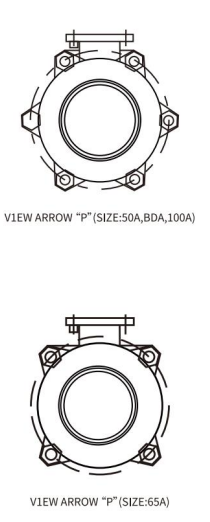

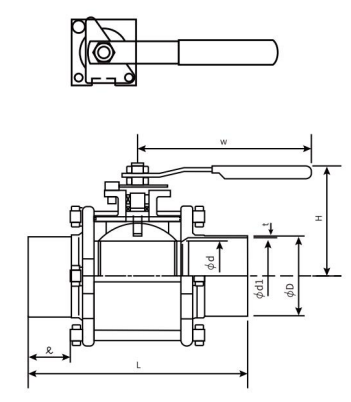

size φd ød1 φD t H L Q W
50A 50.8 57.2 60.5 1.65 99 204 76.2 200
65A 65.0 72.1 76.3 2.1 161 290 76.2 400
80A 80.0 84.9 89.1 2.1 171 302 76.2 400
100A 100.0 110.1 114.3 2.1 182 327 76.2 500

Three Piece Welded Ball Valve For High Precision Fields BA EP GradeThree Piece Welded Ball Valve For High Precision Fields BA EP Grade

name of parts material
ASTM JIS
Valve opening degree CF3M SCS16A
valve body CF8M SCS14A
valve ball CF8M SCS14A
ball seat PTFE
V-shaped valve stem packing PTFE
gear case ——

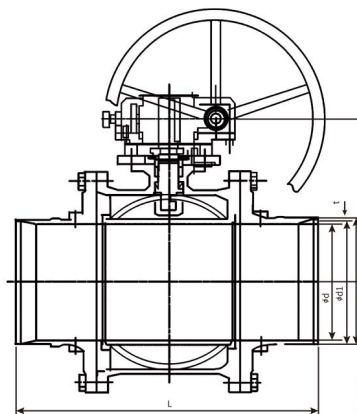

size ød ød1 φD t H L L1 L2 W
125A 125 134.2 139.8 3.8 218 333 211 81 350
150A 150 159.6 165.2 2.8 245 365 211 81 350
200A 200 210.7 216.3 2.8 281 521 211 81 350
250A 250 260.6 267.4 3.4 341 559 211 81 457
300A 300 310.5 318.5 4.0 383 635 211 81 610

Three Piece Welded Ball Valve For High Precision Fields BA EP Grade

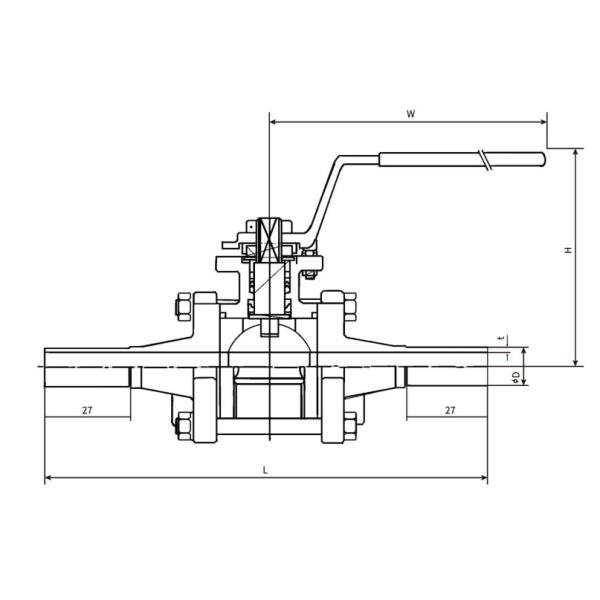

size φD t H L W
1/2" 12.7 1.24 82 139.7 135
3/4" 19.05 1.65 86 139.7 135
1" 25.4 1.65 98 163 165
1 · 1/2" 38.1 1.65 101 190.5 165
2" 50.8 1.65 115 203.2 200
2 · 1/2" 63.5 1.65 124 254.0 200
3" 76.2 1.65 160 279.4 250

name of parts material
ASTM JIS
Valve opening degree CF3M SCS16A
valve body CF8M SCS14A
valve ball CF8M SCS14A
ball seat PTFE
V-shaped valve stem packing PTFE
handle SUS304
