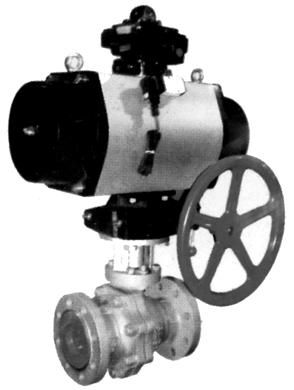

High Pressure O Type Pneumatic Ball Valve Three Piece Cast PN 16MPa
High Pressure O Type Pneumatic Ball Valve Three Piece Cast PN 16MPa
Specifications
Brand Name :
WEYO
Model Number :
ZSHR
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Three-piece cast ball valve
Nominal diameter :
25, 32, 40, 50, 80, 100mm
Nominal pressure :
PN16MPa
Connection type :
Flanged type, standard in accordance with JB/T79.2 (male-female face)
Material :
ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2
Medium temperature :
-40℃~+180℃
Packing :
Polytetrafluoroethylene (PTFE)
Description

The ZSHR pneumatic high-pressure O-type ball valve is a kind of ball valve with a 90° rotation angle. Its ball core adopts a fixed structure, requiring small operating torque. The polytetrafluoroethylene valve seat uses a floating embedded structure, featuring excellent sealing performance. The actuator adopts an RC high-performance cylinder piston actuator, which has a simple structure and large output torque. This ball valve is suitable for controlling high-pressure or high-pressure difference fluids containing fibers and particles.

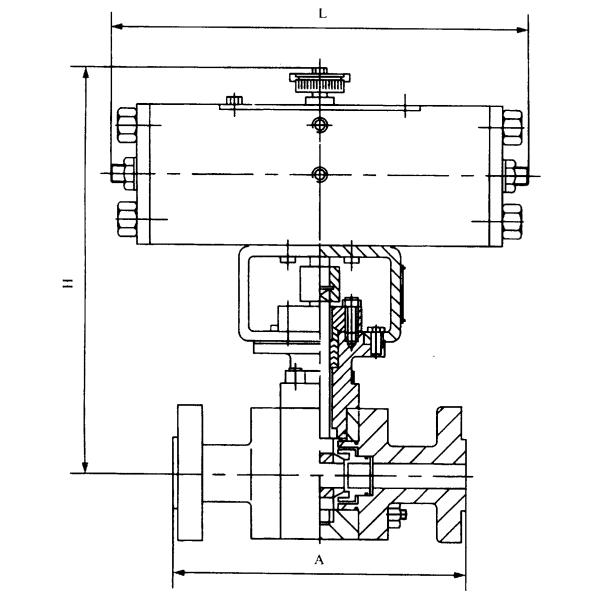

Overall dimensions are shown in the figure and table.

High Pressure O Type Pneumatic Ball Valve Three Piece Cast PN 16MPa

Nominal diameter actuator A H L
double-acting single-acting double-acting single-acting
25 RC40-DA RC40-SR 345 469 320 460
32
40 RC60-SR - - 320 680
50 RC60-DA 473 556 548 680
80 RC80-SR 576 685 548 920
100 RC80-DA - - 640 920

Ordering Information
  1. Model
  2. Nominal diameter
  3. Nominal pressure
  4. Operating temperature
  5. Valve body material
  6. Actuator model
