Compact Pneumatic O Type Three Way Ball Valve 15-200mm Nominal Diameter
Compact Pneumatic O Type Three Way Ball Valve 15-200mm Nominal Diameter
Specifications
Brand Name :
WEYO
Model Number :
ZSQRJ
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Two-piece cast ball valve
Nominal diameter :
15～200mm
Nominal pressure :
PN1.6, 4.0, 6.4MPa; JIS10; ANSI 150
Connection type :
Flanged type
Flange standards :
JB/T79.1 (PN1.6MPa); JB/T79.2 (male-female face); ANSI B16.5; JIS B2201
Material :
ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2
Medium temperature :
Normal temperature type: -40℃~+180℃
Packing :
Polytetrafluoroethylene (PTFE) packing
Description

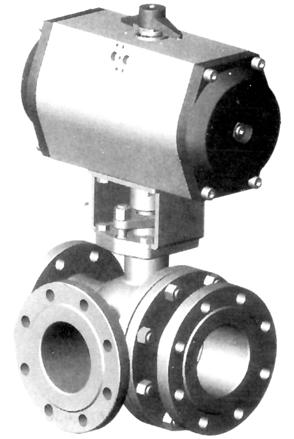

ZSQRJ Compact Pneumatic Three-Way O-Type Ball Valve

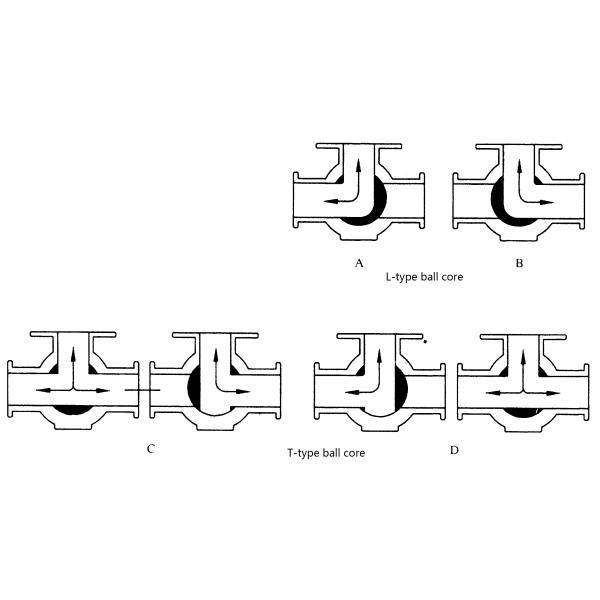

The standard ball core of the ZSQRJ compact pneumatic three-way ball valve has L-type three-way double-port channels and T-type three-port channels. By changing the relative angle between the ball core and the pipeline, different combination controls of fluids in the three branch pipes can be realized. The T-type channel can connect three orthogonal pipelines to each other, or connect two of the pipelines while cutting off the other. The L-type channel can only connect two mutually orthogonal pipelines or switch directions. That is, the T-type channel plays the role of splitting and converging, and the L-type channel plays the role of distribution. The three-way O-type ball valve is equipped with a double-acting or single-acting RC pneumatic piston actuator (large-caliber ones are equipped with ZSH horizontally installed piston actuators).

Compact Pneumatic O Type Three Way Ball Valve 15-200mm Nominal Diameter

Normal temperature ball valve (polytetrafluoroethylene valve seat), test medium is water Table 1
Nominal diameter(mm) 15 20 25 40 50 65 80 100 150
leakage
ml/min		 PN1.6 0.08 0.11 0.13 0.21 0.27 0.35 0.43 0.53 0.8
PN4.0 0.32 0.43 0.53 0.85 1.1 1.4 1.7 2.1 3.2
PN6.4

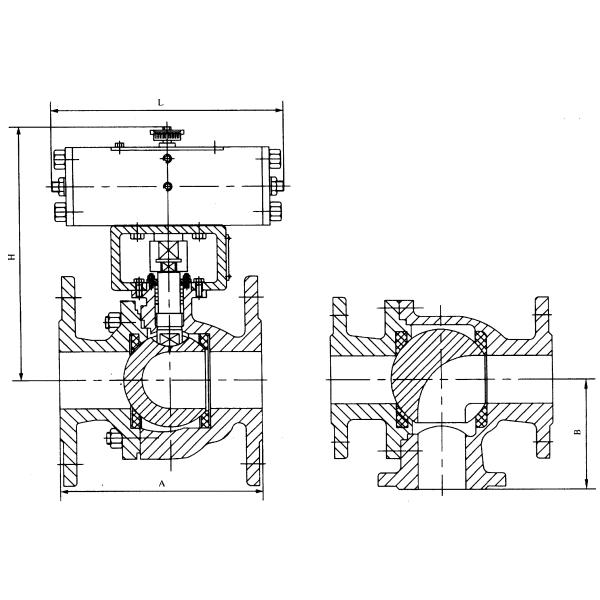

Figure 3 Outline Dimension Drawing

Compact Pneumatic O Type Three Way Ball Valve 15-200mm Nominal Diameter

PN1.6MPa Table 2 Unit: mm
Nominal diameter actuator A L H B
double-acting single-acting
15 RC20-DA RC20-SR 150 140(178) 185 70
25 RC40-SR 180 164(214) 197 82.5
40 RC40-DA 220 210(295) 255 115
50 RC60-SR 240 247(340) 286 115
65 260 276(398) 330 135
80 280 308(438) 349 145
100 RC60-DA 320 348(562) 421 175
150 RC80-SR 440 524(928) 582 220
200 ZSH-7 ZSH-7S 550 648(1033) 702 290
Note: The dimensions in parentheses are for single-acting actuators.

PN4.0, 6.4MPa Table 3 Unit: mm
Nominal diameter actuator A L H B
double-acting single-acting
15 RC40-DA RC40-SR 195 320(460) 290.5 97.5
25 230 300 115
40 RC60-SR 250 320(680) 387.5 125
50 RC60-DA 290 548(680) 415 145
65 320 439 160
80 RC80-SR 350 452 175
100 RC80-DA 406 640(920) 616 203
150 ZSH-7S 530 640(1387) 740 265
Note: The dimensions in parentheses are for single-acting actuators.

Ordering Instructions
  1. Model
  2. Nominal diameter
  3. Nominal pressure
  4. Valve body material
  5. Flange connection type
  6. Ball core type (T-type or L-type)
  7. Control mode (A, B, C, D)
  8. Actuator model
  9. Accessories (solenoid valve, travel switch, handwheel)
