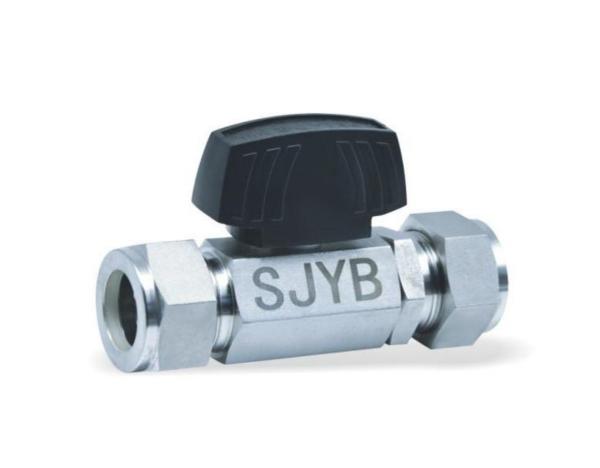

BA EP Grade Sleeve Ball Valves Industrial Field High Pressure Ball Valve
BA EP Grade Sleeve Ball Valves Industrial Field High Pressure Ball Valve
Specifications
Brand Name :
WEYO
Model Number :
BA/EP
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Performance :
Superior
Application scenarios :
Wide
Maintenance :
Simple
Description

BA/EP grade sleeve ball valves play an important role in the industrial field due to their unique sleeve connection technology

BA/EP grade sleeve ball valves play an important role in the industrial field due to their unique sleeve connection technology, superior performance, and wide application scenarios. Its appearance not only improves the sealingand reliability of the system, but also reduces the cost and maintenance difficulty of the system.

BA EP Grade Sleeve Ball Valves Industrial Field High Pressure Ball Valve

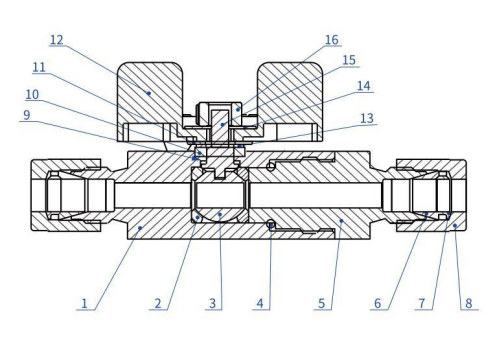

serial number Name material

1		 Valve body SS316
2 Ball seal ring PTFE/PEEK
3 Steel ball SS316

4		 O-ring fluororubber

5		 Joint SS316

6		 Front ferrule SS316
7 Rear ferrule SS316

8		 Ferrule nut SS316

9		 Lower gasket PTFE/PEEK
10 Upper gasket PTFE/PEEK
11 Flat gasket SS316
12 Butterfly knob
ZnA14-1
13 Compression ring SS316
14 Nameplate 1060 alloy
15 Knob rod SS316
16 Nut SS304

BA EP Grade Sleeve Ball Valves Industrial Field High Pressure Ball Valve

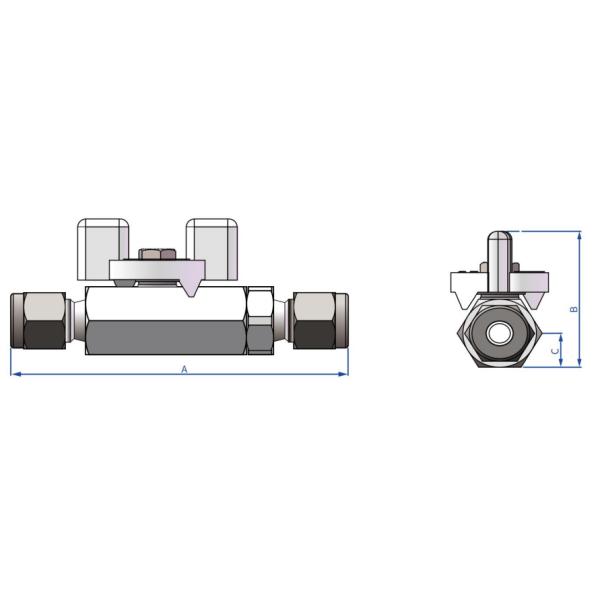

model mm size
A B C
mm mm mm mm
BV200-TF04-TF04 5 64.9 34.9 9.58
BV200-TF06-TF06 7.5 75 42.5 11.2
BV200-TF08-TF08 9 81 48.3 13.5
