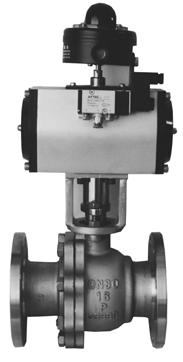

Pneumatic Fluoro Plastic Lined O Type Shut Off Ball Valve
Pneumatic Fluoro Plastic Lined O Type Shut Off Ball Valve
Specifications
Brand Name :
WEYO
Model Number :
ZSRJF
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Place of Origin :
China
Description

ZSRJF Pneumatic Fluoroplastic-Lined O-Type Shut-Off Ball Valve

The ZSRJF-10 pneumatic piston-type fluoroplastic-lined corrosion-resistant O-type shut-off ball valve consists of a pneumatic actuator and a plastic-lined ball valve. All parts in contact with the medium are lined with F46 (perfluoroethylene-propylene copolymer), so it can work well in various strongly corrosive media such as acids, alkalis, salts, and other organic solvents. It also has advantages such as precise regulation, reliable shut-off, and low flow resistance. It can ensure long-term use within the range of -50～+150℃, making it a relatively ideal corrosion-resistant regulating and shut-off ball valve in China currently. It is widely used in automatic control systems of industrial sectors such as petroleum, chemical industry, light industry, and pesticides.

Basic technical parameters

Nominal diameter

DNmm

 15 20 25 32 40 50 65 80 100 125 150 200
rated flow coefficient Kv 20 38 72 110 170 270 380 510 940 1400 2200 3590
nominal pressure MPa 1
actuator output torque
N-m		 96 167 334 574 1085
air supply pressure
MPa		 0.35～0.5
rated rotation angle 90°
flow characteristic Regulating and shut-off type, approximately equal percentage two-position shut-off type, quick opening
operating temperature (℃) -50～+150
valve body material ZG270-500 lined with F46
flange standard JB/T79
allowable pressure difference (MPa) 1
basic error (%) ≤±6%
hysteresis (%) ≤±5%
dead band (%) ≤+3
rated rotation angle deviation (%) ≤±5
leakage class GB/T4213 Class Ⅵ

Materials of main components
Name Material
Valve body and ball core ZG25 lined with F46
Valve seat PTFE

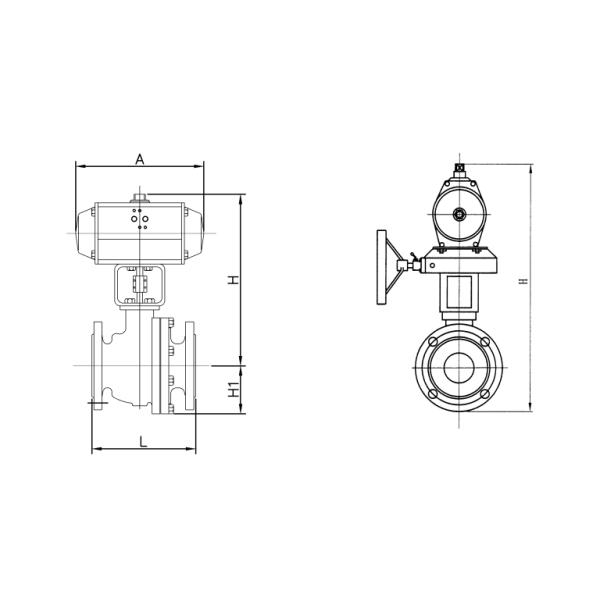

Pneumatic Fluoro Plastic Lined O Type Shut Off Ball Valve

Nominal diameter DN L H H1 A
15 130 360 48 300
20 140 53
25 150 375 58
32 165 385 68
40 180 390 73
50 200 395 83
65 220 405 90 374
80 250 415 98
100 280 425 108
125 320 480 123 522
150 360 520 140 600
200 400 600 167 700

Ordering Instructions
  1. Product model
  2. Nominal diameter
  3. Pressure class
  4. Operating temperature
  5. Action mode
  6. Accessories
