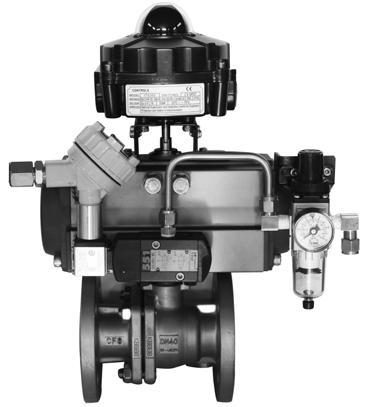

PN1.6 6.4MPa ANSI 150 JIS 10K Compact Pneumatic O Type Shut Off Ball Valve
PN1.6 6.4MPa ANSI 150 JIS 10K Compact Pneumatic O Type Shut Off Ball Valve
Specifications
Brand Name :
WEYO
Model Number :
ZSRJ
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Straight-through split cast ball valve
Nominal diameter :
15～400mm
Nominal pressure :
PN1.6, 6.4MPa; ANSI 150, JIS 10K
Connection type :
Flange type RF. Flange standards are in accordance with JB/T79.1 (PN1.6MPa), JB/T79.2 (male-female face), JIS B2201 or ANSI B16.5
Material :
ZG25, ZC1Cr18Ni9 and ZG0Cr17Ni12Mo2
Medium temperature :
-40～+180℃
Packing :
Wedge-shaped polytetrafluoroethylene (PTFE)
Description

ZSRJ Compact Pneumatic O-type Shut-off Ball Valve

ZSRJ compact O-type shut-off ball valve is designed on the basis of absorbing the advantages of several ball valves with different structures. The ball core adopts a hollow sphere, which is light in weight, causes little wear to the valve seat, features excellent sealing performance and has a long service life. The packing adopts two wedge-shaped packings installed in a staggered and inverted manner, which not only improves the tightness of the stuffing box, but also reduces the height by about half. The actuator adopts a high-performance RC cylinder piston actuator, which has a simple structure, large output torque, and the output torque basically meets the starting torque requirements of the ball valve. The single-acting O-type ball valve is characterized in that once the power source fails, the ball valve will be in the closed or open position according to the requirements of the control system.

Pneumatic

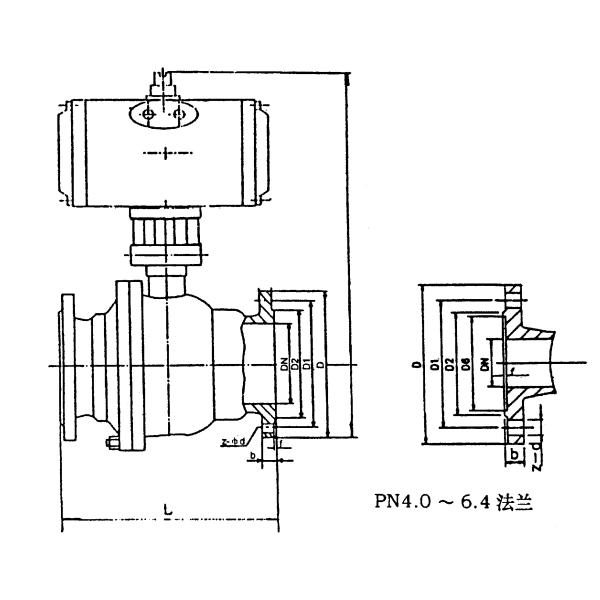

Main Connection Dimensions of Soft and Hard Sealed Floating Ball Valves (GB Specification) Table (2)
Nominal pressure
PN(Mpa)		 nominal diameter
DN(mm)		 size(mm)
L D D1 D2 b f Z-￠d H
1.6 15 130 95 65 45 14 2 4-14 244
20 140 105 75 55 14 2 4-14 244
25 150 115 85 65 14 2 4-14 323
32 165 135 100 78 16 2 4-18 323
40 180 145 110 85 16 3 4-18 391
50 200 160 125 100 16 3 4-18 391
65 220 180 145 120 18 3 4-18 476
80 250 195 160 135 20 3 8-18 476
100 280 215 180 155 20 3 8-18 545
125 320 245 210 185 22 3 8-18 641
150 360 280 240 210 24 3 8-23 641
200 400 335 295 265 26 3 12-23 948
2.5 15 130 95 65 45 16 2 4-14 244
20 140 105 75 55 16 2 4-14 244
25 150 115 85 65 16 2 4-14 323
32 165 135 100 78 18 2 4-18 323
40 180 145 110 85 18 2 4-18 391
50 200 160 125 100 20 3 4-18 391
65 220 180 145 120 22 3 8-18 476
80 250 195 160 135 22 3 8-18 476
100 280 230 190 160 24 3 8-23 545
125 320 270 220 188 28 3 8-25 641
150 360 300 250 218 30 3 8-25 732
200 400 360 310 278 34 3 12-25 948

Nominal pressure
PN(Mpa)		 nominal diameter
DN(mm)		 size(mm)
L D D1 D2 D6 b-f Z-￠d H
4 15 130 95 65 45 40 4-16 4-14 244
20 140 105 75 55 51 4-16 4-14 244
25 150 115 85 65 58 4-16 4-14 323
32 180 135 100 78 66 4-18 4-18 323
40 200 145 110 85 76 4-18 4-18 391
50 220 160 125 100 88 4-20 4-18 391
65 250 180 145 120 110 4-22 8-18 476
80 280 195 160 135 121 4-22 8-18 476
100 320 230 190 160 150 24-4.5 8-23 545
125 400 270 220 188 176 28-4.5 8-25 641
150 400 300 250 218 204 30-4.5 8-25 732
200 550 375 320 282 260 38-4.5 12-30 948
6.4 15 195 105 75 55 40 4-18 4-14 244
20 195 125 90 68 51 4-20 4-18 244
25 240 135 100 78 58 4-22 4-18 323
32 240 150 110 82 66 4-24 4-23 323
40 250 165 125 95 76 4-24 4-23 391
50 280 175 135 105 88 4-26 4-23 391
65 300 200 160 130 110 4-28 8-23 476
80 310 210 170 140 121 4-30 8-23 476
100 370 250 200 168 150 32-4.5 8-25 545
125 395 295 240 202 176 36-4.5 8-30 641
150 500 340 280 240 204 38-4.5 8-34 732
200 630 405 345 300 260 44-4.5 12-34 948

Pneumatic soft-sealed floating ball valve

PN1.6 6.4MPa ANSI 150 JIS 10K Compact Pneumatic O Type Shut Off Ball Valve

Ordering Instructions
  1. Model
  2. Nominal diameter
  3. Nominal pressure
  4. Actuator model
  5. Medium temperature
  6. Valve body and internal valve materials
  7. Valve action type (air-to-open, air-to-close)
  8. Accessories
