PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems
PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems
Specifications
Brand Name :
WEYO
Model Number :
V400-BA
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Body Type :
Two piece cast ball valve
Valve Size :
Floating ball: ½”,¾”,1”,1¼”,1½”,2”,2½”,3”,4”,5 ”,6”,8” (DN15,20,25,32,40,50,65,80,100,125,150,200) ；Trunnion ball:2”,2½”,3”,4”,5”,6”,8”,10”,12”,14”,16 ”,18”,20” (DN50,65,80,100,125,150,200,250,300,350,400,450, 500)
Pressure Rating :
ANSI Class 150,300,600(PN16,25,40,63,100)
End Connections :
Flanged:RF,FM,RJ ；Welded:BW
Flange Standard :
ANSI B16.5,JB/T 79,HG/T 20592,HG/T 20615,SH 3406
Body & Bonnet Materials :
A216 WCB/A105,A217 WC6/A182 F11,WC9/A182 F22 ；A351 CF8/A182 F304, A351 CF8M/A182 F316, A351 CF3/A182 F304L；A351 CF3M/A182 F316L Other special materials are available
Trim Materials :
A276 410,A959 S17400,630(17-4PH) A182 F304,A182 F316,A182 F304L,A182 F316L Sealing surface or full hard chromium plating, stellite alloy overlay hot spraying, outer layer tungsten carbide spraying, chromium carbide spraying, cerement and embedded PTFE,
Spring :
GB/T 1222 60Si2Mn A182 F304 A959 S17700,631(17-7PH) B637 Inconel X-750
Seal Ring :
Nitrile-Butadiene Rubber(NBR)，Silicone rubber(SR)，Fluoroelastomer(Viton)，Fluorosilicone gum(FVMQ)，Graphite
Packing :
PTFE:-45~150℃ ，Graphite: -196~620℃
Shaft Guide Bushing :
A182 F304+PTFE,A182 F316+PTFE,A182 F304L+PTFE,A182 F316L+PTFE ，Self-lubricating bearing，Guide surface satellite alloy overlay welding are available
Bonnet Type :
Standard type:-45~300℃，Fin-extension type:300~540℃，Extenson:-100~-45℃，Long extenson:-196~-100℃，Steam jacket type (body-bonnet)
Ball Type :
Cylindrical through hole ball
Seat leakage standard :
ANSI B16.104, ANSI/FCI 70-2, MSS SP-61, API 598, GB/T 4213, GB/ T 13927
Leakage :
Metal to metal seal: Class V,VI ；Soft seal: Class VI
Flow characteristics :
Approximate EQ-%
Dual-Piston Gear-Rack Spring Return Cylinder Type :
Acting type:Air-to-close, Air-to-open，Size:SR63~700，Supply pressure:0.4~0.5MPa，Handwheel: Side handwheel
Dual-Piston Gear-Rack Double Acting Cylinder Type :
Acting type: Air-to-close, Air-to-open，Size:DA45~600，Supply pressure: 0.4~0.5MPa，Handwheel: Side handwheel
Electric Motor :
Optional
Hydraulic Cylinder :
Optional
Description
The V400-BA series ball valves are suitable for two-position and sequence control in the process control systems of industrial production such as chemical, light industry, papermaking, etc.
Ball valve has smooth flow passage whose diameter is the same as the pipe at full opening, which features superior shut-off performance, simple construction, small size and light weight among other advantages. Ball valve is suitable for two type and sequential control in petrochemical, chemical, light industry, paper and other industrial process control systems.Ball valve can be divided into two types, floating ball and trunnion ball by construction.Floating ball has simple construction, the bigger the operating pressure, the bigger the operating torque.
Soft-seated floating ball valve has no limitation for its flow direction which can guarantee bi-directional sealing, therefore it is suitable for medium temperature and medium pressure occasions. However metal-seated floating ball valve has outlet seat sealing construction, the inlet seat construction adopts helical compression spring or butterfly spring -loaded, therefore unidirectional sealing.Trunnion ball valve seat combination adopts helical compression spring or butterfly spring-loaded, also the operating torque is small and the flow direction is not limited therefore bi-directional sealing. According to different usages, metal-seated ball valve’s sphere and seat can have sealing surface hardening treatment through hot spray cobalt-based, nickel-based alloys or sprayed tungsten carbide, chromium carbide, cermet and other technologies, therefore long time reliable sealing is guaranteed. Metal-seated trunnion ball is suitable for high temperature, high pressure and fluid containing particles and slurry. Soft-seated trunnion ball valve adopts non-metallic plastic for its seat and is suitable for larger diameter or higher pressure occasions.Valve stem features anti-washed off and back seal construction. Packing exchange is possible for working conditions (with pressure). Anti-static and fire construction is optional.Pneumatic ball valve is usually equipped with dual-piston gear-rack cylinder actuator, spring return or double acting cylinder is optional. Other actuator types such as electric motor and hydraulic cylinder are also available.
Products Range
Floating Ball
Valve Size
inch(mm)		 (5 26) 1
(25)		 132) 146 (50 65 3
(80)		 4
(100)		 5
(125)		 6
(150)		 8
(200)
Soft seal PN16 O O O O O O O O O O O O
PN25 O O O O O O O O O O O O
PN40 O O O O O O O 0 O O O O
PN63 O O O O O O 0 0 O 一 一 一
PN100 O O O O O O O O O 一 一 一
ANSI150
PN20		 O O O O O O O O O O O O
ANSI300
PN50		 O O O O O O O O O O O O
ANSI600
PN110		 O O O O O O O O O 一 一 一
Metal to
Metal
seal		 PN16 O O O O O O O O O O O O
PN25 O O O O O O O O O O O O
PN40 O O O O O O O O O 一 一 一
PN63 O O O O O 0 O O 一 一 一 一
PN100 O O O O O O O O 一 一 一 一
ANSI150
PN20		 O O O O O O O O O O O O
ANSI300
PN50		 O O O O O O O O O 一 一 一
ANSI600
PN110		 O O O O O O O O 一 一 一 一
Trunnion ball
Valve Size
inch(mm)		 2
(50)		 21/2”
(65)		 3
(80)		 4
(100)		 5
(125)		 6
(150)		 8
(200)		 10
(250)		 12
(300)		 14
(350)		 16
(400))		 18
(450)		 20
(500)
Soft
seal		 PN16 一 一 一 一 一 O O O O O O O O
PN25 一 一 一 一 一 O O O O O O O O
PN40 一 一 一 一 一 O O O O O O O O
PN63 一 一 一 O O O O O O O O 一 一
PN100 O O O O O O O O O O O 一 一
ANSI150
PN20		 一 一 一 O O O O O O O O O O
ANSI300
PN50		 一 一 一 O O O O O O O O O O
ANSI600
PN110		 O O O O O O O O O O O O O
Maetal
to
Metal
seal		 PN16 一 一 一 O O O O O O O O O O
PN25 一 一 一 O O O O O O O O O O
PN40 一 一 一 O O O O O O O O O
PN63 一 一 一 O O O O O O O O 一 一
PN100 一 一 一 O O O O O O O O 一 一
ANSI150
PN20		 一 一 一 O O O O O O O O O O
ANSI300
PN50		 一 一 一 O O O O O O O O O O
ANSI600
PN110		 一 一 一 O O O O O O O O 一 一

Table 1 Body Materials Temperature - Pressure Range MPa
ANSI Class 600 ANSI Class 300 ANSI Class 150 (℃)
Temp.
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.93 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.15 1.90 1.90 1.98 1.98 1.96

-29

~38
9.62 9.56 10.34 10.34 10.02 4.81 4.78 5.17 5.17 5.01 1.84 1.83 1.95 1.95 1.92 50
8.44 8.17 10.30 10.30 9.32 4.22 4.09 5.15 5.15 4.66 1.62 1.57 1.77 1.77 1.77 100
7.70 7.40 10.03 9.95 9.02 3.85 3.70 5.03 4.97 4.51 1.48 1.42 1.58 1.58 1.58 150
7.13 6.90 9.72 9.59 8.76 3.57 3.45 4.86 4.80 4.38 1.37 1.32 1.38 1.38 1.38 200
6.68 6.50 9.27 9.27 8.39 3.34 3.25 4.63 4.63 4.19 1.21 1.21 1.21 1.21 1.21 250
6.32 6.18 8.57 8.57 7.96 3.16 3.09 4.29 4.29 3.98 1.02 1.02 1.02 1.02 1.02 300
6.18 6.04 8.26 8.26 7.74 3.09 3.02 4.14 4.14 3.87 0.93 0.93 0.93 0.93 0.93 325
6.07 5.93 8.04 8.04 7.51 3.03 2.96 4.03 4.03 3.76 0.84 0.84 0.84 0.84 0.84 350
5.98 5.81 7.76 7.76 7.27 2.99 2.90 3.89 3.89 3.64 0.74 0.74 0.74 0.74 0.74 375
5.89 5.69 7.33 7.33 6.94 2.94 2.84 3.65 3.65 3.47 0.65 0.65 0.65 0.65 0.65 400
5.83 5.60 7.00 7.00 5.75 2.91 2.80 3.52 3.52 2.88 0.55 0.55 0.55 0.55 0.55 425
5.77 5.48 6.77 6.77 2.88 2.74 3.37 3.37 0.46 0.46 0.46 0.46 450
5.73 5.39 6.34 6.34 2.87 2.69 3.17 3.17 0.37 0.37 0.37 0.37 475
5.65 5.30 5.65 5.15 2.82 2.65 2.82 2.57 0.28 0.28 0.28 0.28 500
5.00 4.89 3.69 2.98 2.52 2.44 1.84 1.49 0.14 0.14 0.14 0.14 538
3.13 2.54 1.56 1.27 550
2.11 1.76 1.05 0.88 575

Table 2 Trim IMaterials Temperature Range
INo. Mlatcerials Temperature
Range (C°)		 Remark
1 GB/T 1222
60Si2Mm		 -29~230 Heat treatmenmt
2 A276410 -29~427 Heat treatmemt
3 A959
S17400,630
(17-4PH)		 -40~427 Heat treatmemt
4 A959
S17700,631
(17-7PH)		 -40~427 Heat treatmemt
5 B637-06
Inconel X-7750		 -196~540 Hleat treatmemt
6 A182 F304
A182 F304+STL		 -196~300
-196~550		 Sealing sunface or full stellie alloy owerlay
weldling are available
7 A182 F316
A182 F³16+STIL		 -196~300
-196~550		 Sealing sunface or full stellie alloy owerlay
weldling are available
8 A182 F3041L.
A182 F304L+STL		 -196~300
-196~450		 Sealing sunface or full stellie alloy owerlay
weldling are available
9 A182 F³16IL
A182 F3161L.4STL		 -196~300
-196~450		 Sealing sunface or full stellie alloy owerlay
weldling are available

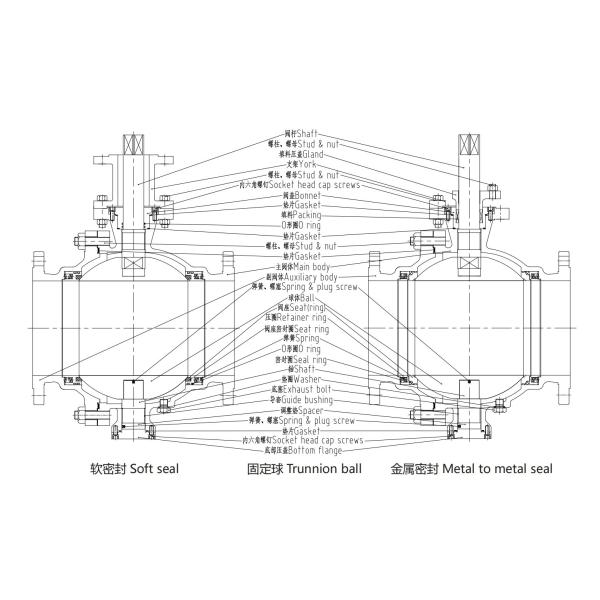

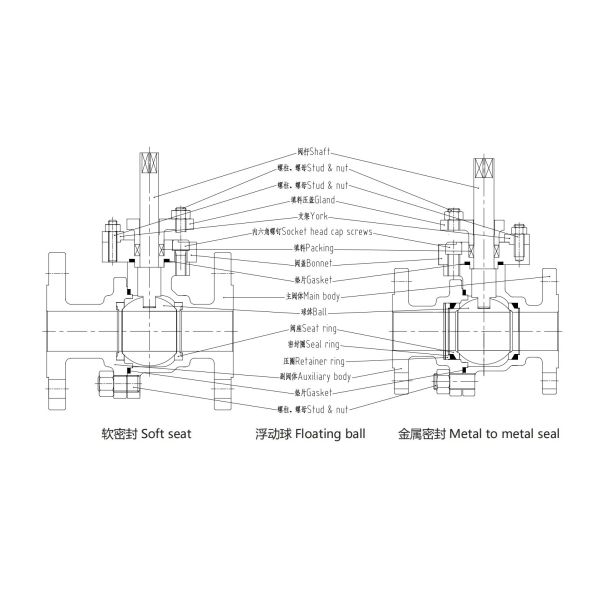

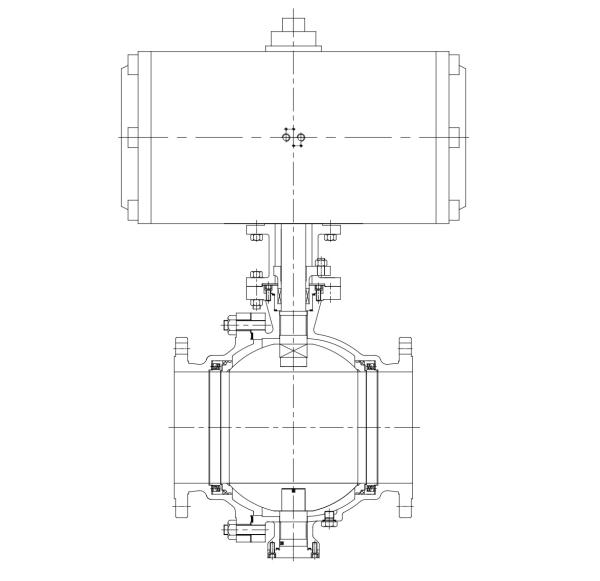

Valve Internal Construction
PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems
PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems

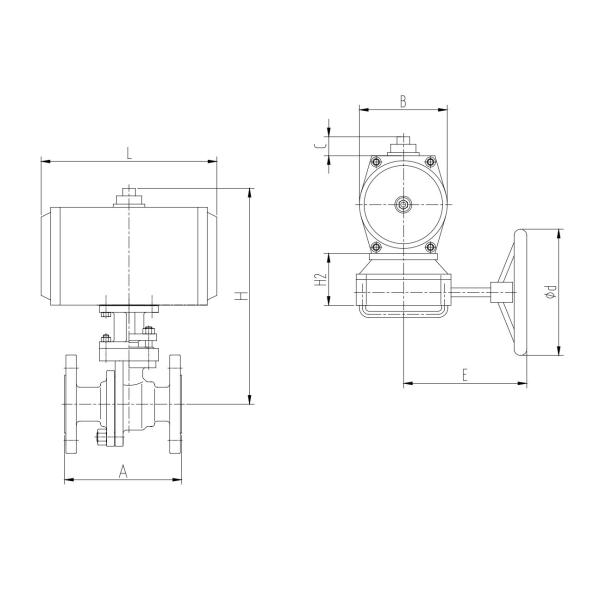

External Dimensions
Floating Ball
PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems
Face-to-Face Dimensions mm
Valve size
inch(mm)		 A
PN16 PN25 PN40 PN63 PN100 JIS 10K JIS 20K
½(15)
 130 130 130 140 165 108 140
¾(20)
 140 140 140 152 190 117 152
1(25) 150 150 150 165 216 127 165
1¼(32)
 165 165 180 178 229 140 178
1½(40)
 180 180 200 190 241 165 190
2(50) 200 200 220 216 292 178 216
2½(65)
 220 220 250 241 330 190 241
3(80) 250 250 280 283 356 203 283
4(100) 280 320 320 305 432 229 305
5(125) 320 400 400 一 一 356 381
6(150) 360 400 400 一 一 394 403
8(200) 400 550 550 一 一 457 502
Valve size
inch(mm)		 A
ANSI 150RF
PN20RF		 ANSI 150RJ
PN20RJ		 ANSI 300RF
PN50RF		 ANSI 300RJ
PN50RJ		 ANSI 600RF
PN110RF		 ANSI 600RJ
PN110RJ
½(15)
 108 119 140 151 165 165
¾(20)
 117 130 152 165 190 190
1 (25) 127 140 165 178 216 216
1¼(32)
 140 153 178 191 229 229
1½(40)
 165 178 190 203 241 241
2(50) 178 191 216 232 292 295
2½(65)
 190 203 241 257 330 333
3(80) 203 216 283 298 356 359
4(100) 229 242 305 321 432 435
5(125) 356 369 381 397 一 一
6(150) 394 407 403 419 一 一
8(200) 457 470 502 518 一 一

Soft Seal
Valve size
inch(mm)		 Actuator
size		 H Cylinder Handwheel
C L B H2 E Ød
½(15)
 45 207 20 150 58 99 155 200
52 216 20 150 59 99 155 200
63 230 20 165 72 99 155 200
75 242 20 187 83 99 155 200
83 252 20 214 91 117 195 200
¾(20)
 45 214 20 150 58 99 155 200
52 223 20 150 59 99 155 200
63 237 20 165 72 99 155 200
75 249 20 187 83 99 155 200
83 259 20 214 91 117 195 200
92 269 20 266 104 117 195 200
1(25) 52 227 20 150 59 99 155 200
63 241 20 165 72 99 155 200
75 253 20 187 83 99 155 200
83 263 20 214 91 117 195 200
92 273 20 266 104 117 195 200
105 286 20 276 114 117 195 200
125 323 30 306 137 117 195 200
1¼(32)
 63 247 20 165 72 99 155 200
75 259 20 187 83 99 155 200
83 269 20 214 91 117 195 200
92 279 20 266 104 117 195 200
105 292 20 276 114 117 195 200
125 329 30 306 137 117 195 200
1½(40)
 75 273 20 187 83 99 155 200
83 283 20 214 91 117 195 200
92 293 20 266 104 117 195 200
105 306 20 276 114 117 195 200
125 343 30 306 137 117 195 200
140 355 30 400 152 118 205 300
2(50) 83 295 20 214 91 117 195 200
92 305 20 266 104 117 195 200
105 318 20 276 114 117 195 200
125 355 30 306 137 117 195 200
140 367 30 400 152 118 205 300
160 392 30 460 174 118 205 300
Valve size
inch(mm)		 Actuator
size		 H Cylinder Handwheel
C L B H2 E Ød
2½(65)
 83 327 20 214 91 117 195 200
92 337 20 266 104 117 195 200
105 350 20 276 114 117 195 200
125 387 30 306 137 117 195 200
140 399 30 400 152 118 205 300
160 424 30 460 174 118 205 300
3(80) 105 373 20 276 114 117 195 200
125 410 30 306 137 117 195 200
140 422 30 400 152 118 205 300
160 447 30 460 174 118 205 300
190 480 30 530 206 118/148 205/245 300/400
210 505 30 535 226 118/148 205/245 300/400
4(100) 125 440 30 306 137 117 195 200
140 452 30 400 152 118 205 300
160 477 30 460 174 118 205 300
190 510 30 530 206 118/148 205/245 300/400
210 535 30 535 226 118/148 205/245 300/400
240 570 30 602 256 148/150 245/265 400/600
270 600 30 722 294 148/150 245/265 400/600
5(125) 140 462 30 400 152 118 205 300
160 487 30 460 174 118 205 300
190 520 30 530 206 118/148 205/245 300/400
210 545 30 535 226 118/148 205/245 300/400
240 580 30 602 256 148/150 245/265 400/600
270 610 30 722 294 148/150 245/265 400/600
6(150) 160 544 30 460 174 118 205 300
190 577 30 530 206 118/148 205/245 300/400
210 602 30 535 226 118/148 205/245 300/400
240 637 30 602 256 148/150 245/265 400/600
270 667 30 722 294 148/150 245/265 400/600
300 695 30 742 324 150 265 600
350 749 30 860 380 150/195 265/410 600/800
8(200) 210 639 30 535 226 118/148 205/245 300/400
240 674 30 602 256 148/150 245/265 400/600
270 704 30 722 294 148/150 245/265 400/600
300 732 30 742 324 150 265 600
350 786 30 860 380 150/195 265/410 600/800
400 848 30 924 514 195 410/430 800
Note:In the "Handwheel"column,the left value refers to double acting cylinder,while the
right refers to spring return cylinder.

Metal to metal seal
Valve size
inch(mm)		 Actuator
size		 H Cylinder Handwheel
C L B H2 E Ød
½(15)
 63 230 20 165 72 99 155 200
75 242 20 187 83 99 155 200
83 252 20 214 91 117 195 200
92 262 20 266 104 117 195 200
105 275 20 276 114 117 195 200
125 312 30 306 137 117 195 200
¾(20)
 75 249 20 187 83 99 155 200
83 259 20 214 91 117 195 200
92 269 20 266 104 117 195 200
105 282 20 276 114 117 195 200
125 319 30 306 137 117 195 200
140 331 30 400 152 118 205 300
1 (25) 83 263 20 214 91 117 195 200
92 273 20 266 104 117 195 200
105 286 20 276 114 117 195 200
125 323 30 306 137 117 195 200
140 335 30 400 152 118 205 300
160 360 30 460 174 118 205 300
1¼(32)
 92 279 20 266 104 117 195 200
105 292 20 276 114 117 195 200
125 329 30 306 137 117 195 200
140 341 30 400 152 118 205 300
160 366 30 460 174 118 205 300
190 399 30 530 206 118/148 205/245 300/400
210 424 30 535 226 118/148 205/245 300/400
1½(40)
 125 343 30 306 137 117 195 200
140 355 30 400 152 118 205 300
160 380 30 460 174 118 205 300
190 413 30 530 206 118/148 205/245 300/400
210 438 30 535 226 118/148 205/245 300/400
2(50) 125 355 30 306 137 117 195 200
140 367 30 400 152 118 205 300
160 392 30 460 174 118 205 300
190 425 30 530 206 118/148 205/245 300/400
210 450 30 535 226 118/148 205/245 300/400
240 485 30 602 256 148/150 245/265 400/600
Valve size
inch(mm)		 Actuator
size		 H Cylinder Handwheel
C L B H2 E
Ød
2½(65)
 140 399 30 400 152 118 205 300
160 424 30 460 174 118 205 300
190 457 30 530 206 118/148 205/245 300/400
210 482 30 535 226 118/148 205/245 300/400
240 517 30 602 256 148/150 245/265 400/600
270 547 30 722 294 148/150 245/265 400/600
3(80) 160 447 30 460 174 118 205 300
190 480 30 530 206 118/148 205/245 300/400
210 505 30 535 226 118/148 205/245 300/400
240 540 30 602 256 148/150 245/265 400/600
270 570 30 722 294 148/150 245/265 400/600
300 598 30 742 324 150 265 600
350 652 30 860 380 150/195 265/410 600/800
4(100) 190 510 30 530 206 118/148 205/245 300/400
210 535 30 535 226 118/148 205/245 300/400
240 570 30 602 256 148/150 245/265 400/600
270 600 30 722 294 148/150 245/265 400/600
300 628 30 742 324 150 265 600
350 682 30 860 380 150/195 265/410 600/800
5(125) 210 545 30 535 226 118/148 205/245 300/400
240 580 30 602 256 148/150 245/265 400/600
270 610 30 722 294 148/150 245/265 400/600
300 638 30 742 324 150 265 600
350 692 30 860 380 150/195 265/410 600/800
400 754 30 924 514 195 410/430 800
6(150) 270 667 30 722 294 148/150 245/265 400/600
300 695 30 742 324 150 265 600
350 749 30 860 380 150/195 265/410 600/800
400 811 30 924 514 195 410/430 800
8(200) 300 732 30 742 324 150 265 600
350 786 30 860 380 150/195 265/410 600/800
400 848 30 924 514 195 410/430 800
500 1054 60 1550 640 250 550 1000
Note:In the "Handwheel"column,the left value refers to double acting cylinder,while the
right refers to spring return cylinder.

Send your message to this supplier
Send Now

PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems

Ask Latest Price
Product Detail
Brand Name :
WEYO
Model Number :
V400-BA
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Contact Supplier
PN16 25 40 63 100 Ball Valves For Two Position Sequence Control In Process Control Systems

WEYO AUTO TECH

Verified Supplier
2 Years
shanghai, shanghai
Since 2003
Business Type :
Manufacturer, Seller
Main Products :
Control Valves, Servo Valves, Proportional Valve
Total Annual :
141790014-161450000
Employee Number :
1000~1200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Ball Valves
MachineU China Products
Contact Supplier
Submit Requirement
