Hard Sealed O Type Ball Valves 15-300mm Nominal Diameter PN1.6 4.0MPa 6.4MPa
Hard Sealed O Type Ball Valves 15-300mm Nominal Diameter PN1.6 4.0MPa 6.4MPa
Specifications
Brand Name :
WEYO
Model Number :
ZSGR
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Straight-through two-piece or three-piece cast ball valve
Nominal diameter :
15～300mm
Nominal pressure :
PN1.6, 4.0, 6.4MPa
Connection type :
Flange type. Standards conform to JB/T79.1 (PN1.6MPa) and JB/T79.2 (male-female face)
Material :
ZG25, ZC1Cr18Ni9 and ZG0Cr17Ni12Mo2
Medium temperature :
-30～+540℃
Packing :
Flexible graphite
Description

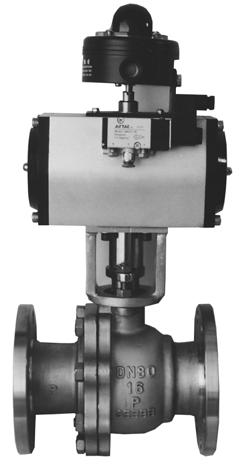

ZSGR-1 Hard-sealed O-type Ball Valve

ZSGR-1 hard-sealed O-type ball valve features a novel structure, high temperature resistance, wear and corrosion resistance, and resistance to damage from solid particles, cavitation and flashing. It also has excellent sealing performance, reaching the bubble level. Applied in automatic control systems, it can realize the cut-off or circulation of the medium in the pipeline.

Main Connection Dimensions of Pneumatic Soft and Hard Sealed Floating Ball Valves (GB Specification)
Nominal pressure
PN(Mpa)		 nominal diameter
DN(mm)		 size(mm)
L D D1 D2 b f Z-￠d H
1.6 50 216 160 125 100 16 3 4-18 391
65 241 180 145 120 18 3 4-18 476
80 283 195 160 135 20 3 8-18 476
100 305 215 180 155 20 3 8-18 545
125 356 245 210 185 22 3 8-18 641
150 394 280 240 210 24 3 8-23 732
200 457 335 295 265 26 3 12-23 948
250 533 405 355 320 30 3 12-25
300 610 460 410 375 30 4 12-25
2.5 50 216 160 125 100 20 3 4-18
65 241 180 145 120 22 3 8-18 476
80 283 195 160 135 22 3 8-18 476
100 305 230 190 160 24 3 8-23 545
125 381 270 220 188 28 3 8-25 641
150 403 300 250 218 30 3 8-25 732
200 502 360 310 278 34 3 12-25 948
250 568 425 370 332 36 3 12-30
300 648 485 430 390 40 4 16-30
Nominal pressure
PN(Mpa)		 nominal diameter
DN(mm)		 size(mm)
L D D1 D2 D6 B-f Z-￠d H
4 50 216 160 125 100 88 4-20 4-18 391
65 241 180 145 120 110 4-22 8-18 476
80 283 195 160 135 121 4-20 8-18 476
100 305 230 190 160 150 24-4.5 8-23 545
125 381 270 220 188 176 28-4.5 8-25 641
150 403 300 250 218 204 30-4.5 8-25 732
200 502 375 320 282 260 38-4.5 12-30 948
250 568 445 385 345 313 42-4.5 12-34
300 648 510 450 408 364 46-4.5 16-34
6.4 50 280 175 135 105 88 4-26 4-23 391
65 300 200 160 130 110 4-28 8-23 476
80 310 210 170 140 121 4-30 8-23 476
100 370 250 200 168 150 32-4.5 8-25 545
125 395 295 240 202 176 36-4.5 8-30 641
150 500 340 280 240 204 38-4.5 8-34 732
200 630 405 345 300 260 44-4.5 12-34 948
