CE RoHS Solar Battery Home Backup 51..2V 10.44kWh ESS Solar Battery
CE RoHS Solar Battery Home Backup 51..2V 10.44kWh ESS Solar Battery
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1800-2000
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Certifications :
CE, RoHS, UN38.3
Grid Transfer Time (ms) :
20MS
Description

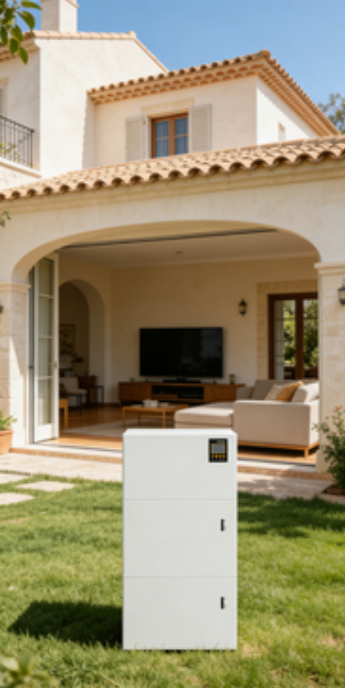

CE RoHS Solar Battery Home Backup 10.44kWh ESS Solar Battery

serving as a wall-mounted home energy hub, this all-in-one unit scales from 10.44kWh and integrates the inverter and PV input. It optimizes solar self-consumption for homes, secures power for villas or home offices, and switches to backup within 20ms during grid failures.

Key Features:

● Cost-Effective & Durable
Employing Lithium Iron Phosphate (LiFePO4) technology, cycle life up to 6000 cycles, supports daily use for over 15 years, reducing long-term operational costs.
● Single MPPT PV Input
Supports up to 5kW PV input, MPPT range 150-500V, compatible with most PV modules.
● Adjustable Power Factor
Power factor adjustable from 0.8 leading to 0.8 lagging, compatible with various grid requirements.
● High Efficiency&Low THDi
Output THDi＜3%, high power quality, safe for sensitive electronics.
● Fast Grid Transfer
Grid transfer time 20ms, ensuring uninterrupted operation of important appliances.
● Smart Communication
Supports CAN/RS485 communication for integration with energy management systems, enabling remote monitoring and O&M to improve management efficiency.
● Modern Design
Wall-mounted design, saving floor space and reducing cleaning.

CE RoHS Solar Battery Home Backup 51..2V 10.44kWh ESS Solar Battery

Battery Data
Model W5-10K
Cell Chemistry LFP/ 102Ah
Rated Energy (kWh) 10.44kWh
Pack Configuration 2P16S
Rated Voltage (V) 51.2V
Operating Voltage Range (VDC) 44.8-57.6VDC
PV Input
Max. PV Input Power (W) 5,000W
Max. PV Input Voltage (V) 500V
MPPT Voltage Range (V) 150-500V
Start-up Voltage (V) 370V
Number of MPPTs (Pcs) 1
Max. PV Input Current per MPPT (A) 60A
AC Input & Output
Rated Input/ Output Power (W) 5,000W
Rated Input/ Output Voltage (V) 220V/ 230V/ 240V (Adjustable)
Rated AC Frequency (Hz) 50/ 60Hz
Max. Output Current (A) 22A
Total Harmonic Distortion (THDi) <3%
Power Factor 0.8 Leading to 0.8 Lagging
Grid Transfer Time (ms) 20ms
Grid Connection Single Phase
General Data
Dimensions (W*D*H) (mm) 600x163x1,005
Weight (kg) 108
Altitude (m) 4,000m (Derating above 1,000m)
Display LCD Display
Safety Protection High/Under Voltage Protection, Short Circuit Protection, Overload Protection.
BMS Communication CAN/RS485
IP Rating IP21
Operating Temperature (℃) -15~60℃ (Battery: 0~40℃)
Relative Humidity 20%~95% (No Condensing)
Cycle Life 6,000 Cycles
Installation Method Wall-Mounted
Certifications CE, RoHS, UN38.3
