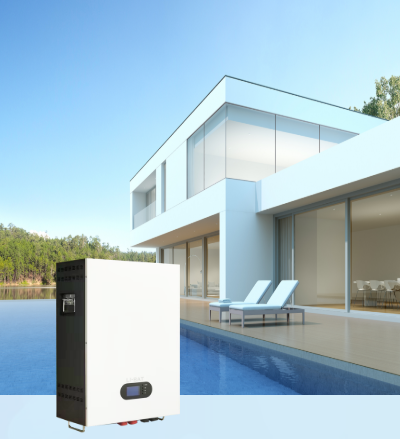

9.6kWh 48V 200Ah Home Lithium Battery Storage Wall Hanging Save Space
9.6kWh 48V 200Ah Home Lithium Battery Storage Wall Hanging Save Space
Specifications
Certification :
CE
Place of Origin :
Chian
MOQ :
1
Price :
$1300-1500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

Product introduction
The product adopts modular design, higher integration,saves installation space; adopts high-perfomance lithiumiron phosphate positive electrode material, the battery cell has good consistency, and the designed service life is more than 10 years; one-key switch machine, front operation, front wiring, easy installation, convenient maintenance and operation; various functions, over-temperature alarm protection, over-charge and over-discharge protection.short-circuit protection; strong compatiblity, seamless connection with UPS, photovoltaic power generation and other main equipment various forms of communication interfaces. CAN/RS485, etc. can be customized according to customer needs, which is convenient for remote monitoring and flexible use of the system High-energy, low-power lithium-ion battery equipment achieves higher energy supply, lower energy consumption and reduces environmental pollution; all-round, multi-level battery protection strategies and fault isolation measures are adopted to ensure the safe operation of the system.

Product Highlights

1.Wall-hanging installation, save space.

2.Multiple in parallel, easy for expand,Automatic addressing, no need to dial a code.
3.Standard configuration with LCD display, real time knowing battery status,Screen direct selection of invertercommunication.
4.Environmentally friendly non-polluting materials, free of heavy metals, green and environmentally friendly.
5.Standard cycle life is more than 5000 times.

Other
Factory Direct Supply: Own production base ensures efficient order processing.
Flexible Production Capacity: Supports small batch trial orders (MOQ 1 unit).
Customization Service: Product parameters (e.g., voltage, interface) can be customized per customer requirements.
9.6kWh 48V 200Ah Home Lithium Battery Storage Wall Hanging Save Space
Model CH—GBP48-200W
Nominal Voltage (V) 48
Cell Specification 100
Nominal Capacity(Ah) 200
Nominal Energy (kWh) 9.6
Operating Voltage Range(V) 42~54.75
Recommended Charging Voltage(V) 51.75
Recommended Discharge Cut-off Voltage(V) 45
Standard Charge/Discharge Current (A) 0.5C
Maximun Continuous Charge/Discharge Current(A) 1C(Customizable)
Operating Temperature(°C) -30~60(Recommended 10~35 )
Allowable Humidity Range(%RH) <85
Storage Temperature(°C) -20~65(Recommended 10~35)
Charging Temperature(°C) 0~55
Discharging Temperature(°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension(D*W*H)mm 682*465*276
Weight(kg) 93
