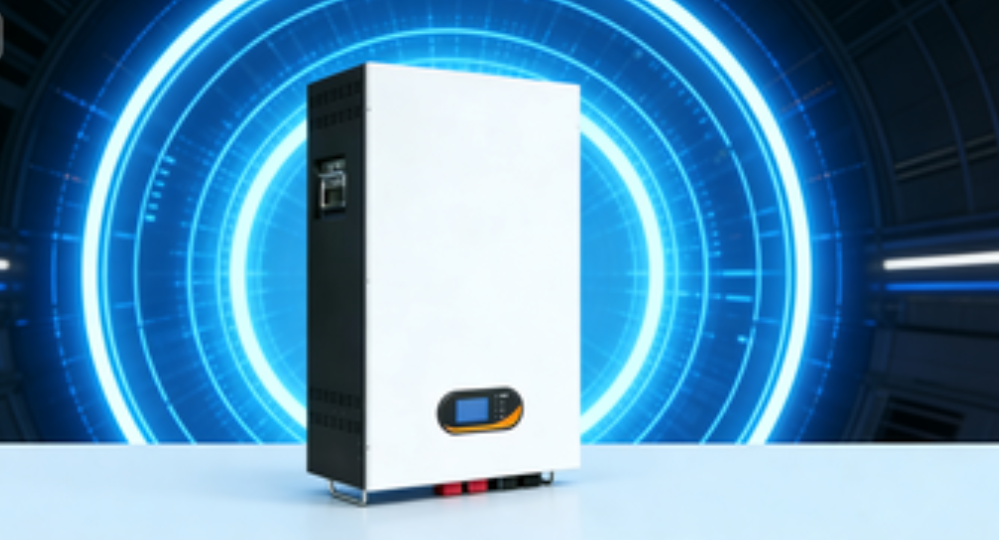

LiFePO4 Wall Mounted Battery Storage For Home 48V 200Ah 9.6kWh 5000 Cycles
LiFePO4 Wall Mounted Battery Storage For Home 48V 200Ah 9.6kWh 5000 Cycles
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1300-1500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Dimensions :
682*465*276
Voltage :
48 V
Installation :
Wall-mounted
Certifications :
CE,
Cycle Life :
5000 cycles
Weight :
93 kg
Description
Home Storage Wall-Mounted LiFePO4 Battery 48V 9.6 kWh
Product Overview
This wall-mounted lithium iron phosphate battery features modular design with high integration for space-saving installation. Utilizing premium LiFePO4 cathode material with excellent cell consistency, it offers a design lifespan exceeding 10 years and includes a comprehensive 5-year warranty.
Key Features
  • Wall-mounted installation saves valuable space
  • Parallel expansion capability with automatic addressing
  • Integrated LCD display for real-time status monitoring
  • Direct inverter communication selection via display
  • Environmentally friendly materials free of heavy metals
  • Standard cycle life exceeding 5000 cycles at 80% DOD
  • Front operation and wiring for easy installation and maintenance
  • Comprehensive protection systems including over-temperature, over-charge, over-discharge, and short-circuit protection
  • LiFePO4 Wall Mounted Battery Storage For Home 48V 200Ah 9.6kWh 5000 Cycles
Technical Specifications
Model CH--GBP48-200W
Nominal Voltage 48V
Nominal Capacity 200Ah
Nominal Energy 9.6 kWh
Operating Voltage Range 42V - 54.75V
Recommended Charging Voltage 51.75V
Standard Charge/Discharge Current 0.5C
Operating Temperature -30°C to 60°C (Recommended: 10°C to 35°C)
Cycle Life 5000+ cycles at 80% DOD
Dimensions (D*W*H) 682 * 465 * 276 mm
Weight 93 kg
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Compatibility & Communication
Seamless integration with UPS systems, photovoltaic power generation, and other primary equipment. Multiple communication interfaces including CAN/RS485, customizable according to customer requirements for remote monitoring and flexible system usage.
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and quality control.
Flexible Production: Supports small batch trial orders with minimum order quantity of 1 unit.
Customization Service: Product parameters including voltage and interface specifications can be customized to meet specific customer requirements.
