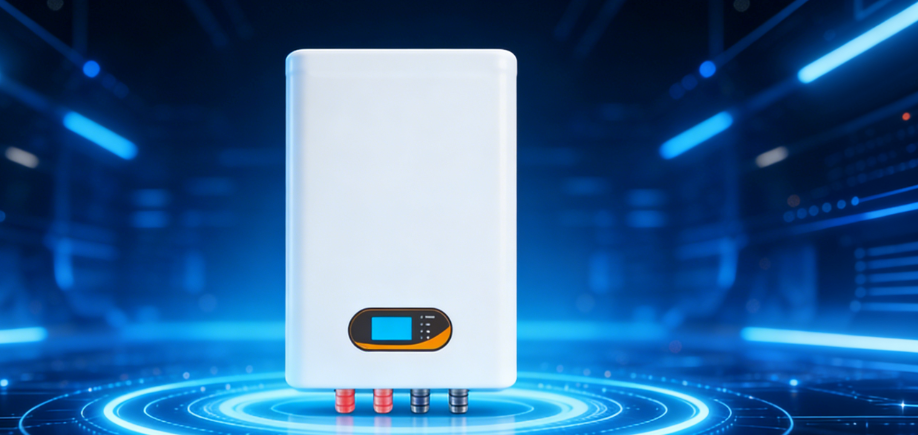

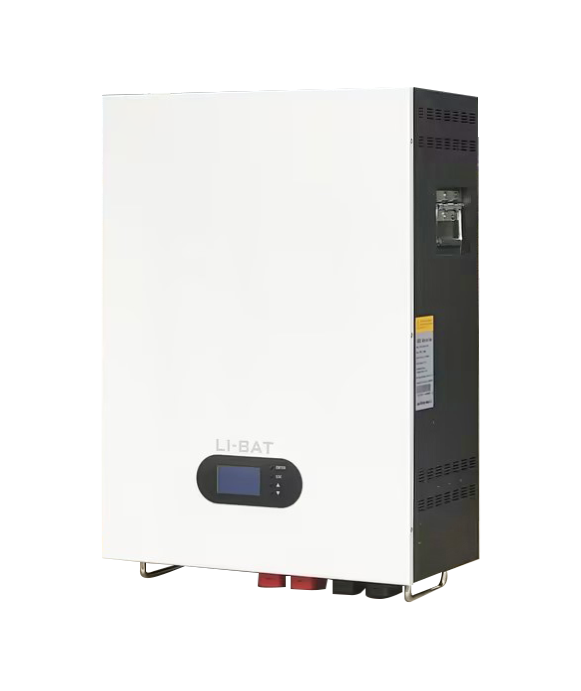

5.12kWh 25.6V 200Ah Wall Mounted Battery Storage LiFePO4 Home Storage Battery Systems
5.12kWh 25.6V 200Ah Wall Mounted Battery Storage LiFePO4 Home Storage Battery Systems
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$700-$1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Weight :
49 kg
Protection Model :
IP20
Dimensions :
687*450*186
Operating Temperature（℃） :
-30~60（Recommend 10~35）
Installation Type :
Wall-mounted
Description
Home Storage Wall-Mounted LiFePO4 Battery 25.6V 5 kWh
5KWH Power Wall Type Lithium Iron Phosphate Battery with 5-Year Warranty
Product Overview
This modular-designed power wall battery features high integration for space-saving installation. Utilizing high-performance lithium iron phosphate cathode material, the battery cells demonstrate excellent consistency with a design lifespan exceeding 10 years. Front-facing operation, wiring, and one-key power switching enable easy installation, maintenance, and operation.
Advanced Protection & Compatibility
Comprehensive safety functions include over-temperature alarm protection, over-charge and over-discharge protection, and short-circuit protection. The system offers strong compatibility with seamless integration to UPS systems, photovoltaic power generation, and other primary equipment. Multiple communication interfaces including CAN/RS485 can be customized according to customer requirements for remote monitoring and flexible system utilization.
Key Product Features
  • Wall-mounted installation saves valuable space
  • Multiple parallel connection capability for easy system expansion with automatic addressing (no manual coding required)
  • Standard LCD display for real-time battery status monitoring and direct inverter communication selection
  • Environmentally friendly materials free from heavy metals and pollutants
  • Standard cycle life exceeding 5000 cycles
Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters (such as voltage, interface) can be customized according to customer requirements
5.12kWh 25.6V 200Ah Wall Mounted Battery Storage LiFePO4 Home Storage Battery Systems5.12kWh 25.6V 200Ah Wall Mounted Battery Storage LiFePO4 Home Storage Battery Systems
5.12kWh 25.6V 200Ah Wall Mounted Battery Storage LiFePO4 Home Storage Battery Systems
Technical Specifications
Model CH-GBP24-200W
Nominal Voltage (V) 25.6
Cell Specification 100
Nominal Capacity (Ah) 200
Nominal Energy (kWh) 5.12
Operating Voltage Range (V) 22.4~29.2
Recommended Charging Voltage (V) 27.6
Recommended Discharge Cut-off Voltage (V) 24
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 687*450*186
Weight (kg) 49
