6000 Cycles Residential Energy Storage 5.12kWh 51.2V 100Ah Home Energy Battery Storage
6000 Cycles Residential Energy Storage 5.12kWh 51.2V 100Ah Home Energy Battery Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$700-900
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Master LED Indicator :
6LED (SOC:16.6%~100%),3LED(ON/OFF,RUN,ALARM)
Storage Temperature(℃) :
-20~+35
Description

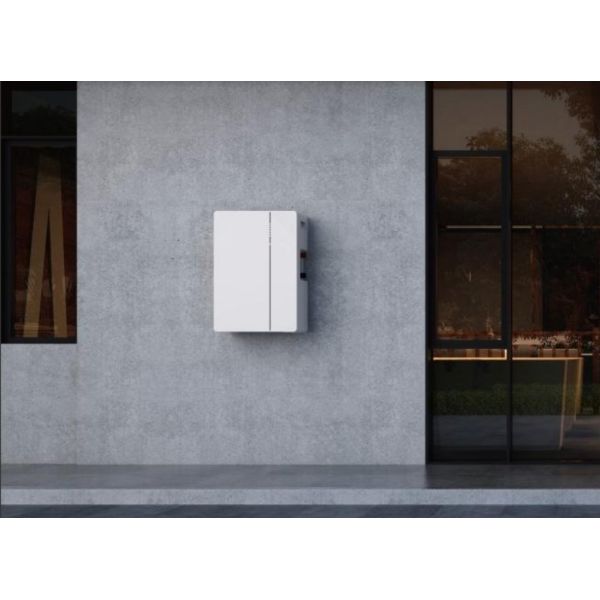

5kWh Wall-Mounted Rechargeable Lithium Iron Battery
This low-voltage energy storage battery provides efficient and reliable energy storage solutions for households, businesses, and specialized applications. Featuring top-tier lithium iron phosphate battery cells with high safety, stability, energy density, and long cycle life. The built-in intelligent Battery Management System (BMS) comprehensively monitors and controls the energy storage system to ensure safe, stable, and high-performance operation.
Product Highlights
Safety Features
  • A-grade lithium iron phosphate battery with high safety performance
  • Intelligent BMS with multiple safety functions for enhanced protection
  • Optional pre-installed fire extinguisher system
Long Lifespan
  • Cycle life exceeding 6000 cycles (70% State of Health)
  • High parallel balancing current ensures battery consistency
Convenient & Smart Operation
  • Bluetooth/WiFi connectivity for real-time monitoring via mobile app
  • Remote software upgrade capability
  • Bluetooth/WiFi inverter protocol configuration for quick setup
  • Automatic battery module networking for easy maintenance
Flexible Design
  • Compact size with high power density for space-constrained installations
  • Dual-positive and dual-negative terminal design enables direct stacking and parallel connection without additional busbars
  • Compatible with mainstream low-voltage energy storage inverters
Manufacturing Advantages
  • Factory direct supply with efficient order processing
  • Flexible production capacity supporting small batch trial orders (MOQ 1 unit)
  • Customization services for product parameters including voltage and interface specifications
6000 Cycles Residential Energy Storage 5.12kWh 51.2V 100Ah Home Energy Battery Storage
Technical Specifications
Model CH-LVWES05-G1
Main Parameters
Battery Type LiFePO4
Battery Rated Energy (kWh) 5.12
Battery Rated Capacity (Ah) 100
Scalability Parallel connection of up to 16 units
Nominal Voltage (V) 51.2
Operating Voltage (V) 43.2~58.4
Charge/Discharge Current (A) - Recommended 50
Charge/Discharge Current (A) - Maximum 100
Additional Parameters
Recommended Depth of Discharge (%) ≤ 90
System Dimension (W/H/D, mm) 480×500×155
System Weight (kg) 47
Master LED Indicator 6 LED (SOC: 16.6%~100%), 3 LED (ON/OFF, RUN, ALARM)
IP Rating of Enclosure IP20
Operating Temperature (°C) Charge: 0~+60 / Discharge: -20~+60
Storage Temperature (°C) -20~+35
Cycle Life (25±2°C, 0.5C/0.5C, 70% EOL) ≥ 6000
Installation Wall-Mounted / Floor-Mounted
Fire Prevention System Prefabricated whole fluorine ketone fire extinguishing device (optional)
Communication Methods CAN2.0 / RS485
Warranty Period (years) 10
Certification IEC62619-CB, CE, UN38.3
Compatible Inverters SMA, VICTRON, SE, DEYE, SOLIS, GOODWE, GROWATT, LUXPOWERTEK, SENERGY, SRD, etc.
