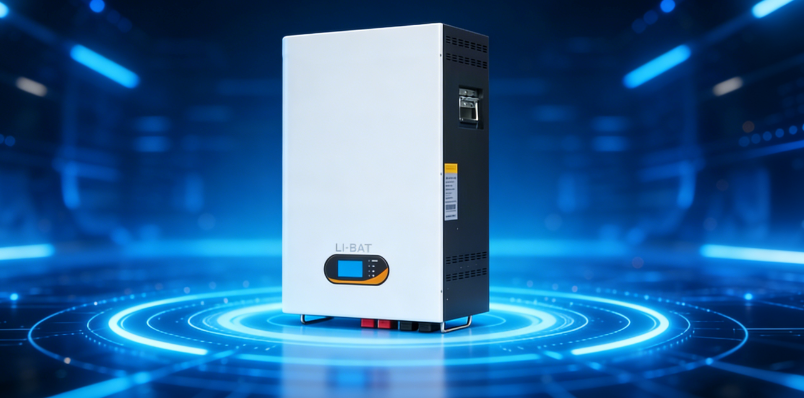

5.12kWh Residential Energy Storage 51.2V 100Ah Wall Mounted Battery Storage
5.12kWh Residential Energy Storage 51.2V 100Ah Wall Mounted Battery Storage
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$700-1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Safety Features :
Overcharge protection, Short circuit protection.
Battery Type :
Lithium-ion
Cycle Life :
6000 cycles
Weight :
50 kg
Working Temp :
-20~60℃
Description
Wall-Mounted LiFePO4 Battery 51.2V 5.12kWh Home Solar System
Product Overview
This wall-mounted lithium iron phosphate battery features modular design with high integration, saving valuable installation space. Built with high-performance LiFePO4 cathode material, the battery cells offer excellent consistency and a design lifespan exceeding 10 years. Front-facing operation and wiring simplify installation, maintenance, and operation.
Key Features & Protection
Comprehensive safety features include over-temperature alarm protection, over-charge and over-discharge protection, and short-circuit protection. Strong compatibility enables seamless integration with UPS systems, photovoltaic power generation, and other main equipment. Multiple communication interfaces (CAN/RS485) can be customized for remote monitoring and flexible system use.
Product Highlights
  • Wall-mounted installation saves space
  • Multiple units in parallel for easy expansion with automatic addressing
  • Standard LCD display for real-time battery status monitoring
  • Screen-direct selection of inverter communication
  • Environmentally friendly materials free of heavy metals
  • Standard cycle life exceeding 5000 cycles
5.12kWh Residential Energy Storage 51.2V 100Ah Wall Mounted Battery Storage
Technical Specifications
Model CH--GBP51.2-100W
Nominal Voltage (V) 51.2
Cell Specification 100
Nominal Capacity (Ah) 100
Nominal Energy (kWh) 5.12
Operating Voltage Range (V) 44.8~58.4
Recommended Charging Voltage (V) 55.2
Recommended Discharge Cut-off Voltage (V) 48
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 687*450*186
Weight (kg) 49
Manufacturing & Customization
Factory direct supply from our own production base ensures efficient order processing. We support flexible production capacity with minimum order quantity of 1 unit for trial orders. Customization services available for product parameters including voltage and interface specifications to meet specific customer requirements.
Warranty: 5 Years Comprehensive Warranty
