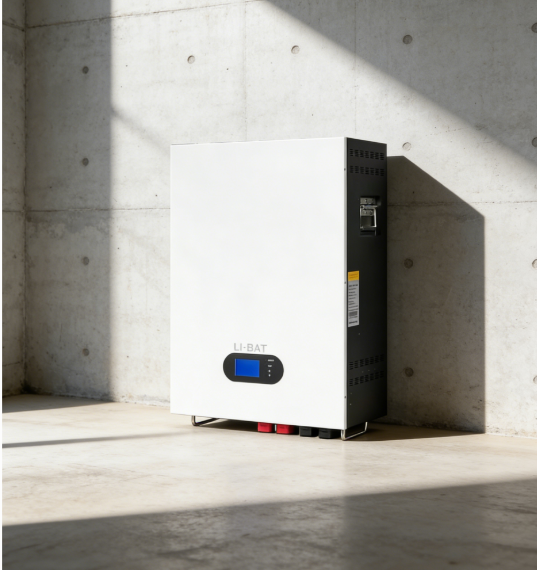

Home Solar Battery Storage 10.24kWh 51.2V 200Ah Solar Power Batteries For Home
Home Solar Battery Storage 10.24kWh 51.2V 200Ah Solar Power Batteries For Home
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1400-1600
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Weight :
50 kg
Application :
Residential and Commercial Energy Storage
Installation :
Wall-mounted
Battery Type :
Lithium-ion
Dimensions :
600mm x 400mm x 150mm
Operating Temperature Range :
-20°C to 60°C
Communication Interface :
Wi-Fi / RS485
Safety Features :
Overcharge, Over-discharge, Short circuit protection
Description
10.24 kWh 51.2V LiFePO4 Wall-Mounted Storage Battery
5-Year Warranty | Factory Direct Supply
Product Overview
This modular wall-mounted storage battery features high integration for space-saving installation and utilizes high-performance lithium iron phosphate (LiFePO4) cathode material with excellent cell consistency and a design life exceeding 10 years.
Key Features
  • Wall-mounted installation saves valuable space
  • Parallel capability for easy system expansion with automatic addressing
  • Standard LCD display for real-time battery status monitoring
  • Direct screen selection of inverter communication protocols
  • Environmentally friendly materials free of heavy metals
  • Standard cycle life exceeding 5000 cycles at 80% depth of discharge
  • Front operation and wiring for easy installation and maintenance
  • Comprehensive protection systems including over-temperature, over-charge, over-discharge, and short-circuit protection
Compatibility & Communication
Seamlessly connects with UPS systems, photovoltaic power generation equipment, and other main equipment. Features multiple communication interfaces including CAN/RS485, customizable to customer requirements for remote monitoring and flexible system use.
Home Solar Battery Storage 10.24kWh 51.2V 200Ah Solar Power Batteries For Home
Technical Specifications
Parameter Specification
Model CH--GBP51.2-200W
Nominal Voltage 51.2V
Cell Specification 100
Nominal Capacity 200Ah
Nominal Energy 10.24 kWh
Operating Voltage Range 44.8~58.4V
Recommended Charging Voltage 55.2V
Recommended Discharge Cut-off Voltage 48V
Standard Charge/Discharge Current 0.5C
Maximum Continuous Charge/Discharge Current 1C (Customizable)
Operating Temperature -30~60°C (Recommended 10~35°C)
Allowable Humidity Range <85% RH
Storage Temperature -20~65°C (Recommended 10~35°C)
Charging Temperature 0~55°C
Discharging Temperature -10~55°C
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimensions (D*W*H) 682*465*276 mm
Weight 96 kg
Home Solar Battery Storage 10.24kWh 51.2V 200Ah Solar Power Batteries For Home
Manufacturing & Customization
Factory direct supply from our own production base ensures efficient order processing. We support flexible production capacity with minimum order quantity of 1 unit for trial orders. Customization services available for product parameters including voltage, interfaces, and other specifications to meet specific customer requirements.
