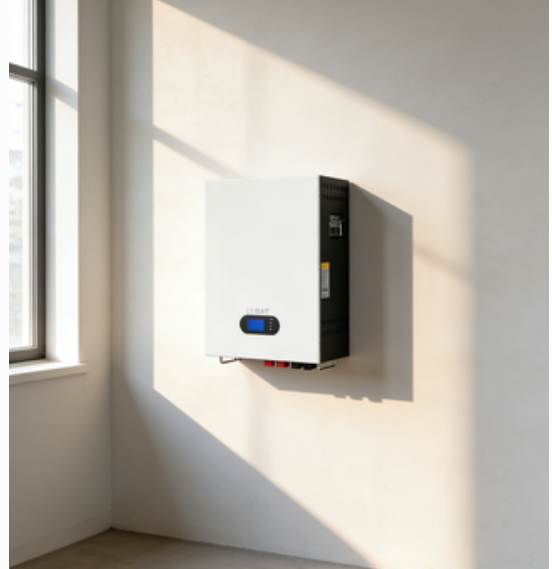

CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use
CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use
Specifications
Certification :
CE
Place of Origin :
China
Price :
$700-$1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1
Battery Type :
Lithium-ion
Type :
Energy Storage System
Dimensions :
687mm x 450mm x 186mm
Weight :
46kg
Warranty :
10 years
Voltage :
48 V
Installation :
Wall-mounted
Description
Home Storage Wall-Mounted LiFePO4 Battery 48V 4.8 kWh
5-Year Warranty | Factory Direct Supply
Product Overview
This modular wall-mounted battery system features high integration for space-saving installation. Utilizing high-performance lithium iron phosphate (LiFePO4) technology, it delivers exceptional cell consistency with a design life exceeding 10 years. Front-facing operation and wiring simplify installation, maintenance, and operation.
Key Features & Benefits
  • Wall-mounted design saves valuable floor space
  • Parallel expansion capability with automatic addressing
  • Integrated LCD display for real-time status monitoring
  • Direct inverter communication selection via screen
  • Environmentally friendly materials, free of heavy metals
  • Standard cycle life exceeding 5000 cycles
  • Comprehensive protection: over-temperature, over-charge, over-discharge, short-circuit
  • Strong compatibility with UPS, photovoltaic systems, and main equipment
  • Customizable communication interfaces (CAN/RS485)
Manufacturing Advantages
Factory direct supply ensures efficient order processing. Flexible production capacity supports small batch trial orders (MOQ 1 unit). Customization services available for product parameters including voltage and interface specifications.
CE Wall Mounted Battery Storage 4.8kWh 48V 100Ah Solar Batteries For Home Use
Technical Specifications
Model CH--GBP48-100W
Nominal Voltage (V) 48
Cell Specification 100
Nominal Capacity (Ah) 100
Nominal Energy (kWh) 4.8
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 0.5C
Maximum Continuous Charge/Discharge Current (A) 1C (Customizable)
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling/Intelligent Fan
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 687*450*186
Weight (kg) 46
