5.22kWh ESS Energy Storage 51.2V Home Battery Power Storage 1P16S
5.22kWh ESS Energy Storage 51.2V Home Battery Power Storage 1P16S
Specifications
Payment Terms :
,Western Union,T/T,D/P,D/A,L/C
Place of Origin :
CHINA
Grid Transfer Time (ms) :
20ms
Certification :
CE
Cell Chemistry :
LFP/ 102Ah
MOQ :
1
Price :
$1200-1400
Description

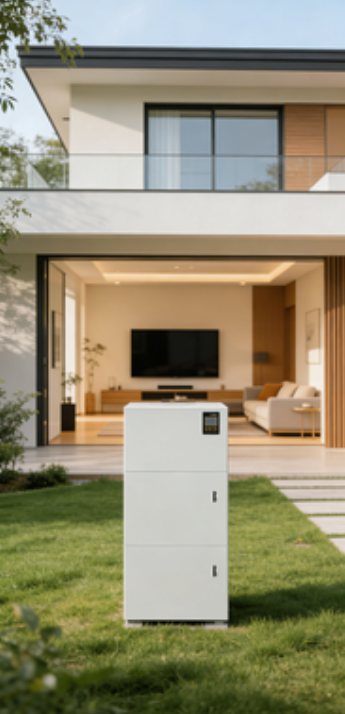

5.22kWh 5kW 51.2V Wall-mounted All-In-One Energy Storage System
This wall-mounted home energy hub scales from 5.22kWh to 20.88kWh and integrates both inverter and PV input functionality. It optimizes solar self-consumption for residential applications, provides secure power for villas and home offices, and switches to backup power within 20ms during grid failures.
Key Features
  • Cost-Effective & Durable: Utilizes Lithium Iron Phosphate (LiFePO4) technology with cycle life up to 6000 cycles, supporting daily use for over 15 years while reducing long-term operational costs.
  • Single MPPT PV Input: Supports up to 5kW PV input with MPPT range of 150-500V, compatible with most photovoltaic modules.
  • Adjustable Power Factor: Power factor adjustable from 0.8 leading to 0.8 lagging for compatibility with various grid requirements.
  • High Efficiency & Low THDi: Output THDi <3% ensures high power quality and safe operation for sensitive electronics.
  • Fast Grid Transfer: 20ms grid transfer time ensures uninterrupted operation of critical appliances.
  • Smart Communication: Supports CAN/RS485 communication for integration with energy management systems, enabling remote monitoring and O&M to improve management efficiency.
  • Modern Design: Wall-mounted design saves floor space and simplifies maintenance.
5.22kWh ESS Energy Storage 51.2V Home Battery Power Storage 1P16S
Specifications - Model WSL48100
Battery Data
Model W5-5K
Cell Chemistry LFP/102Ah
Rated Energy 5.22kWh
Pack Configuration 1P16S
Rated Voltage 51.2V
Operating Voltage Range 44.8-57.6VDC
PV Input
Max. PV Input Power 5,000W
Max. PV Input Voltage 500V
MPPT Voltage Range 150-500V
Start-up Voltage 370V
Number of MPPTs 1
Max. PV Input Current per MPPT 60A
AC Input & Output
Rated Input/Output Power 5,000W
Rated Input/Output Voltage 220V/230V/240V (Adjustable)
Rated AC Frequency 50/60Hz
Max. Output Current 22A
Total Harmonic Distortion (THDi) <3%
Power Factor 0.8 Leading to 0.8 Lagging
Grid Transfer Time 20ms
Grid Connection Single Phase
General Data
Dimensions (W*D*H) 600*163*655 mm
Weight 60.8 kg
Altitude 4,000m (Derating above 1,000m)
Display LCD Display
Safety Protection High/Under Voltage Protection, Short Circuit Protection, Overload Protection
BMS Communication CAN/RS485
IP Rating IP21
Operating Temperature -15~60℃ (Battery: 0~40℃)
Relative Humidity 20%~95% (No Condensing)
Cycle Life 6,000 Cycles
Installation Method Wall-Mounted
Certifications CE, RoHS, UN38.3
