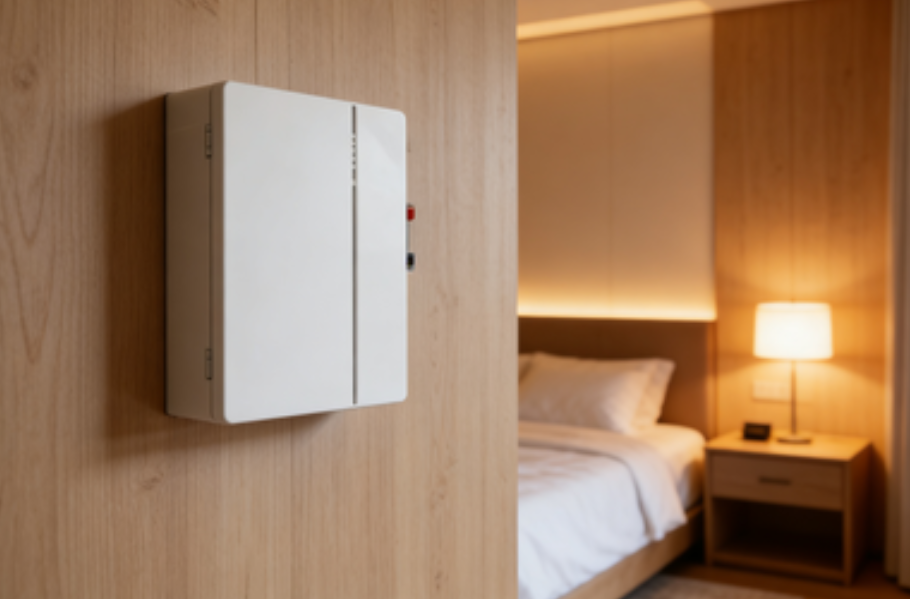

14.34kWh 51.2V 280Ah Home Solar Energy Storage Residential Energy Storage
14.34kWh 51.2V 280Ah Home Solar Energy Storage Residential Energy Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1600-1800
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description
15kWh 51.2V Lithium Iron Phosphate Battery with 6000 Cycles for Wall-Mounted Energy Storage System
This low-voltage energy storage battery delivers efficient and reliable energy storage solutions for residential, commercial, and specialized applications. Featuring top-tier lithium iron phosphate battery cells, it offers exceptional safety, stability, energy density, and long cycle life. The integrated intelligent Battery Management System (BMS) provides comprehensive monitoring and control to ensure safe, stable, and high-performance operation.
Product Highlights
Safety Features
  • A-grade lithium iron phosphate battery with superior safety performance
  • Intelligent BMS with multiple safety protection functions
  • Optional integrated fire extinguisher system
Long Service Life
  • Cycle life exceeding 6000 cycles (70% State of Health)
  • High parallel balancing current ensures battery consistency
Smart Connectivity
  • Bluetooth/WiFi connectivity for real-time monitoring via mobile app
  • Remote software upgrade capability
  • Automatic battery module networking for easy maintenance
Flexible Installation
  • Compact size with high power density for space-constrained installations
  • Dual-positive and dual-negative terminal design enables direct stacking and parallel connection
  • Compatible with mainstream low-voltage energy storage inverters
14.34kWh 51.2V 280Ah Home Solar Energy Storage Residential Energy Storage
Technical Specifications
Model CH--LVWES15-G1
Battery Type LiFePO4
Rated Energy 14.34 kWh
Rated Capacity 280 Ah
Scalability Parallel connection up to 16 units
Nominal Voltage 51.2 V
Operating Voltage 43.2-57.6 V
Recommended Charge/Discharge Current 140 A
Maximum Charge/Discharge Current 200 A
Recommended Depth of Discharge ≤90%
Dimensions (W/H/D) 520 * 680 * 232 mm
Weight 114 kg
IP Rating IP20
Operating Temperature Charge: 0-55°C / Discharge: -20-55°C
Storage Temperature -20-35°C
Cycle Life ≥8000 cycles (25±2°C, 0.5C/0.5C, 70% EOL)
Installation Wall-Mounted/Floor-Mounted (optional wheels)
Communication CAN2.0/RS485
Warranty 10 years
Certifications IEC62619-CB, CE, UN38.3
Compatible Inverters SMA, VICTRON, SE, DEYE, SOLIS, GOODWE, GROWATT, LUXPOWERTEK, SENERGY, SRD, etc.
Manufacturing Advantages
  • Factory Direct Supply: Own production base ensures efficient order processing
  • Flexible Production Capacity: Supports small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters (voltage, interface) can be customized per requirements
