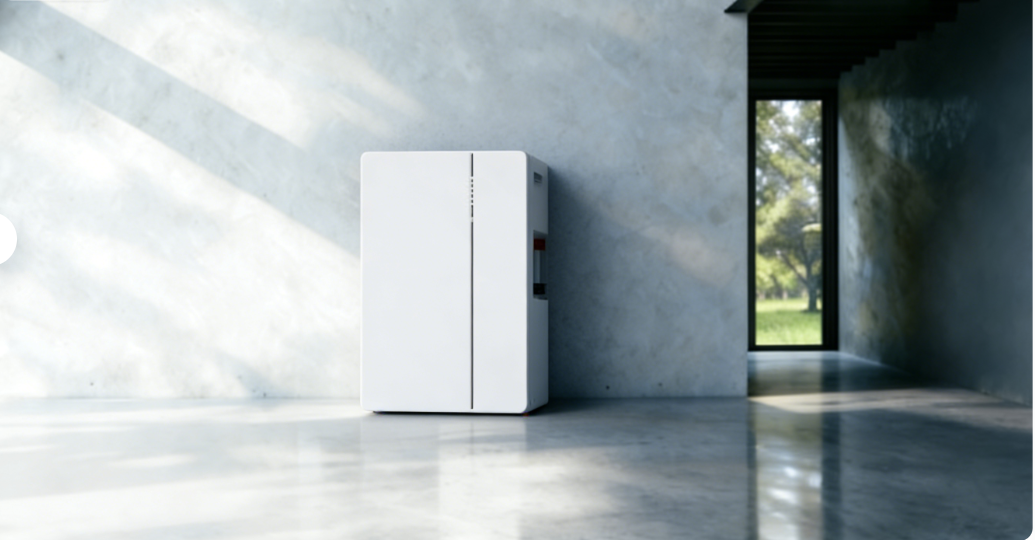

10.24kWh 51.2V 200Ah Lithium Iron Phosphate Home Energy Storage LiFePO4
10.24kWh 51.2V 200Ah Lithium Iron Phosphate Home Energy Storage LiFePO4
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1300-1500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Battery Type :
LiFePO4
Rated Energy :
10.24kwh
Dimensions (W/H/D) :
600×720×160 mm
Communication :
CAN2.0/RS485
Weight :
87kg
Scalability :
Parallel connection of up to 16 units
Description
10.24kWh 51.2V Lithium Iron Phosphate Battery
This low-voltage energy storage battery provides efficient and reliable energy storage solutions for households, businesses, and specialized applications. Featuring top-tier lithium iron phosphate battery cells with high safety, stability, energy density, and long cycle life. Built-in intelligent battery management system (BMS) comprehensively monitors and controls the energy storage system to ensure safe, stable, and high-performance operation.
Product Highlights
Safety Features
  • A-grade lithium iron phosphate battery with high safety performance
  • Intelligent BMS with multiple safety functions for enhanced protection
  • Optional pre-setting fire extinguisher system available
Long Lifespan
  • Cycle life exceeding 6000 cycles (70% SOH)
  • High parallel balancing current ensures battery consistency
Convenient & Smart Operation
  • Bluetooth/WiFi connectivity for real-time monitoring via mobile app
  • Remote software upgrade capability
  • Automatic battery module networking for easy maintenance
Flexible Installation
  • Compact size with high power density for space-constrained installations
  • Dual-positive and dual-negative terminal design enables direct stacking and parallel connection without additional busbars
  • Compatible with mainstream low-voltage energy storage inverters

10.24kWh 51.2V 200Ah Lithium Iron Phosphate Home Energy Storage LiFePO4

Technical Specifications
Model CH--LVWES10-G1
Battery Type LiFePO4
Rated Energy 10.24 kWh
Rated Capacity 200 Ah
Scalability Parallel connection of up to 16 units
Nominal Voltage 51.2 V
Operating Voltage 43.2~58.4 V
Charge/Discharge Current (Recommended) 100 A
Charge/Discharge Current (Maximum) 200 A
Recommended Depth of Discharge ≤90%
Dimensions (W/H/D) 600×720×160 mm
Weight 87 kg
IP Rating IP20
Operating Temperature Charge: 0~+60°C / Discharge: -20~+60°C
Storage Temperature -20~+35°C
Cycle Life ≥6000 cycles (25±2°C, 0.5C/0.5C, 70% EOL)
Installation Wall-Mounted/Floor-Mounted (optional wheel)
Communication CAN2.0/RS485
Warranty Period 10 years
Certification IEC62619-CB, CE, UN38.3
Compatible Inverters
SMA, VICTRON, SE, DEYE, SOLIS, GOODWE, GROWATT, LUXPOWERTEK, SENERGY, SRD, and other mainstream low-voltage energy storage inverters.
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing.
Flexible Production Capacity: Supports small batch trial orders (MOQ 1 unit).
Customization Service: Product parameters (voltage, interface, etc.) can be customized per customer requirements.
