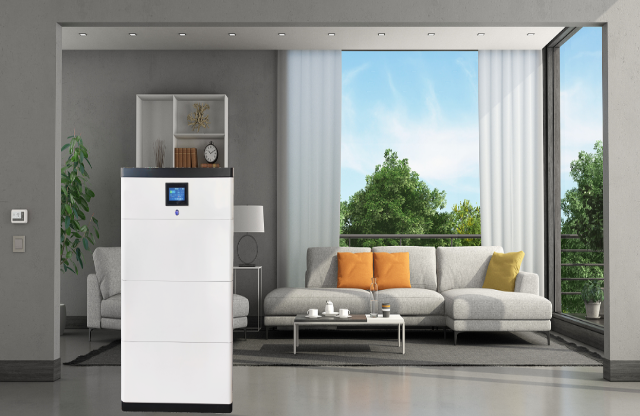

38.4kWh Low Voltage Battery Pack Residential PV Storage LFP48V 200Ah
38.4kWh Low Voltage Battery Pack Residential PV Storage LFP48V 200Ah
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$5450-5650
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Color :
white
Rated Voltage :
48V
Description
38.4kWh Lithium-ion Battery Stack System
Flexible expansion stack design for residential PV storage with LFP48V/200Ah configuration
Product Overview
This advanced battery stack system features a modular stacked design for flexible expansion and elegant aesthetics. The system offers one-button startup with side-hidden wiring for customer convenience, and includes direct communication compatibility with mainstream inverter protocols.
Key Features
  • Bilingual display (Chinese/English) with comprehensive PACK information summary
  • Direct inverter communication protocol selection via display interface
  • Master power switch for one-touch system operation
  • Modular stack design supporting flexible battery capacity expansion
  • Multiple cluster parallel connection supporting up to 8 battery packs
Technical Specifications
Model CH--GLV2-P40
Battery Module Model LFP48V/200Ah
Battery Module Nominal Energy 9.6 kWh
Rated Voltage 48V
Number of Cell Modules in Single Cluster 4
Single Cluster Battery Energy 38.4 kWh
Maximum Number of Clusters in Parallel 8
Operating Voltage Range 42-54.75V
Recommended Charging Voltage 51.75V
Recommended Discharge Cut-off Voltage 45V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D×W×H) 479×700×1408 mm
Unit Cluster Weight 420 kg
Communication Mode CAN/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended: 10°C to 35°C)
Storage Temperature -20°C to 65°C (Recommended: 10°C to 35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
Safety & Reliability
Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe system operation, making it ideal for small commercial and residential energy storage applications.
Manufacturing Advantages
Factory Direct Supply: Own production base with direct order processing for optimal supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters (voltage, interface) tailored to customer requirements
