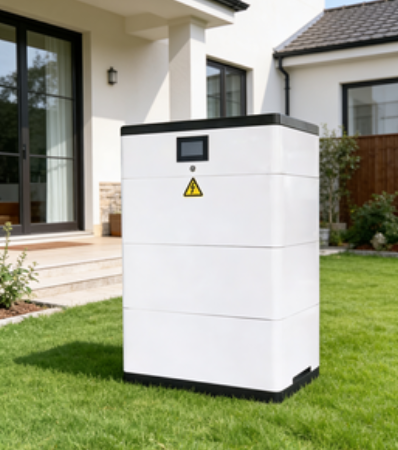

Modular Stack Solar PV Battery Storage 28.8kWh 48V 200Ah 5000 Times PV Energy Storage
Modular Stack Solar PV Battery Storage 28.8kWh 48V 200Ah 5000 Times PV Energy Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$4100-4300
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Color :
white
Rated Voltage :
48V
Description
28.8kWh Modular Stack Lithium Iron Phosphate Battery System
This advanced home solar storage system features a modular stack design with flexible expansion capabilities. The LFP48V/200Ah battery system offers convenient one-button startup and side-hidden wiring for easy customer use. With direct compatibility for mainstream inverter protocols and comprehensive multi-level protection strategies, this system ensures safe operation for small commercial and residential energy storage applications.
Key Product Features
  • Bilingual Chinese/English display with comprehensive PACK information summary
  • Direct inverter communication protocol selection via display screen
  • One-button system startup and shutdown functionality
  • Modular stack design for flexible battery capacity expansion
  • Multiple cluster parallel capability supporting up to eight battery packs
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and reliable supply chain
Flexible Production Capacity: Support for small batch trial orders with MOQ of 1 unit
Customization Service: Product parameters including voltage and interface can be customized to customer requirements
Modular Stack Solar PV Battery Storage 28.8kWh 48V 200Ah 5000 Times PV Energy Storage
Technical Specifications
Model CH--GLV2-P30
Battery Module Model LFP48V/200Ah
Battery Module Nominal Energy 9.6 kWh
Rated Voltage 48V
Number of Cell Modules in Single Cluster 3
Single Cluster Battery Energy 28.8 kWh
Maximum Number of Clusters in Parallel 8
Operating Voltage Range 42-54.75V
Recommended Charging Voltage 51.75V
Recommended Discharge Cut-off Voltage 45V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D*W*H) 479*700*1128 mm
Unit Cluster Weight 324 kg
Communication Mode CAN/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended: 10°C to 35°C)
Storage Temperature -20°C to 65°C (Recommended: 10°C to 35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
