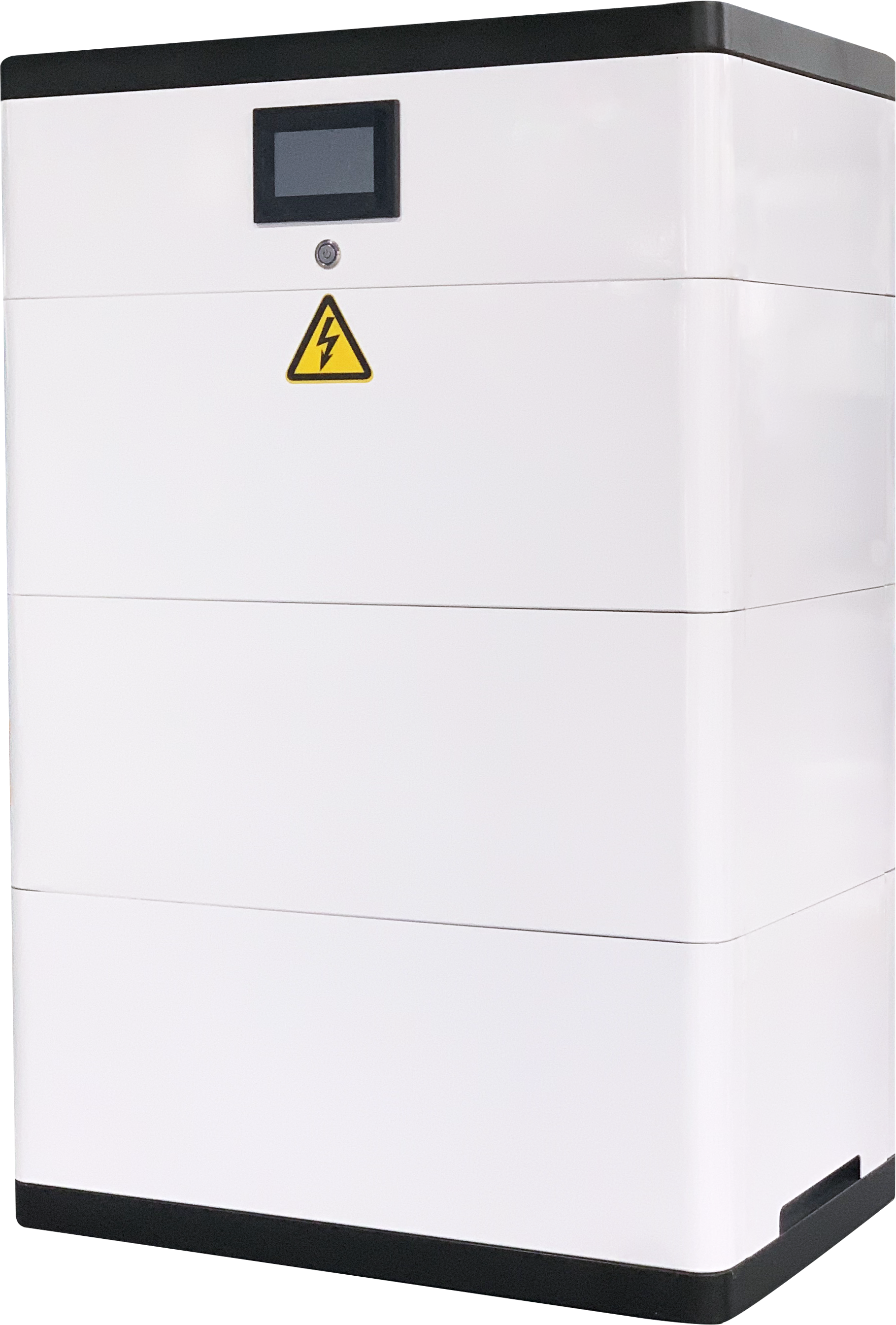

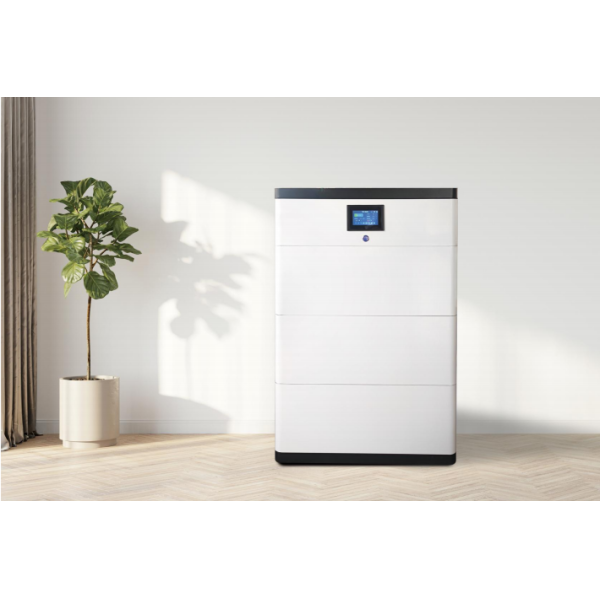

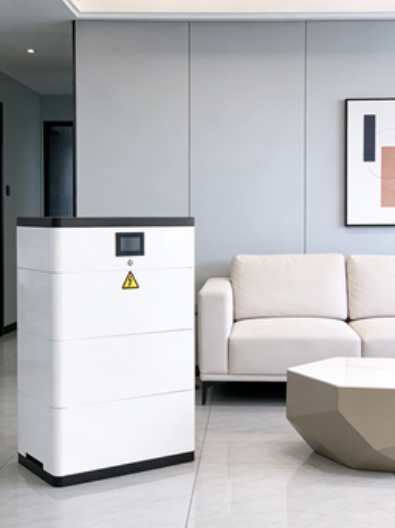

LFP48V 100Ah Solar Pv Energy Storage 9.6kwh Photovoltaic Battery Backup
LFP48V 100Ah Solar Pv Energy Storage 9.6kwh Photovoltaic Battery Backup
Specifications
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
$2000-3000
Battery Type :
Lithium-ion Battery
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Application :
Residential
Description
9.6kWh Low Voltage Stack System
Product Overview

This advanced energy storage system features a stacked design for flexible expansion and elegant aesthetics. The system offers one-button startup with side-hidden wiring for convenient customer operation. The display interface supports direct selection of mainstream inverter protocols for seamless communication.

Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe system operation, making it ideal for small commercial and residential energy storage applications.

Key Features
  • Bilingual display (Chinese/English) summarizing all PACK information
  • Direct inverter communication protocol selection via screen interface
  • Master power switch for one-touch system control
  • Stackable design supporting flexible battery capacity expansion
  • Multiple cluster parallel connection supporting up to eight battery packs
Manufacturing Advantages
Factory Direct Supply: Own production base with direct order processing for optimal supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters including voltage and interface can be customized to meet specific requirements
LFP48V 100Ah Solar Pv Energy Storage 9.6kwh Photovoltaic Battery Backup
LFP48V 100Ah Solar Pv Energy Storage 9.6kwh Photovoltaic Battery Backup
Model CH—GLV1-P10
Battery Module Model LFP48V/100Ah
Battery Module Nominal Energy(kWh) 4.8
Rated Voltage(V) 48
Number of Cell Modules in Single Cluster 2
Single Cluster Battery Energy (kWh) 9.6
Maximum number of Clusters in Parallel 8
Operating Voltage Range(V) 42~54.75
Recommended Charging Voltage(V) 51.75
Recommended Discharge Cut-off Voltage(V) 45
Maximum Charge/Discharge Current (A) 0.5C
Unit Cluster Size (D*W*H)mm 425*700*672
Unit Cluster Weight(kg) 145
Communication Mode CNA/485/Bluetooh
Proper Temperature(℃) -30~60(Recommended 10~35)
Storage Temperature(℃) -20~65(Recommended 10~35)
Humidity(%RH) <85
Protection Level IP20
Cooling Method Natural Air Cooling
Number of Cycle ≥5000
Standard of Security CE, UN38.3,MSDS
