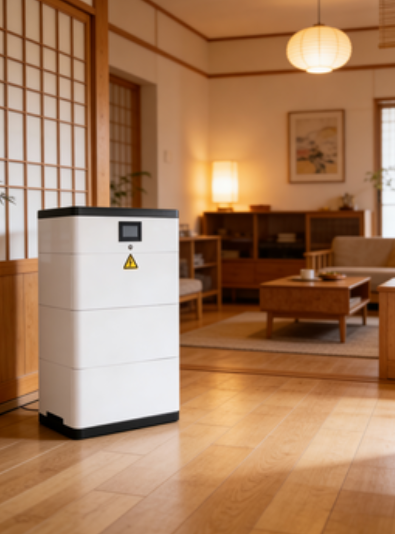

Residential Low Voltage Battery Pack 14.4kWh Solar PV Battery Storage
Residential Low Voltage Battery Pack 14.4kWh Solar PV Battery Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$2400-2600
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Color :
white
Rated Voltage :
48V
Description
14.4kWh Lithium-Ion Battery Stack System

Featuring flexible expansion and stackable architecture for residential PV storage applications.

Product Overview

This advanced battery system features a stacked design with flexible expansion capabilities and an aesthetically pleasing form factor. The system offers one-button startup and side-hidden wiring for customer convenience. With direct compatibility for mainstream inverter protocols and comprehensive multi-level protection strategies, this system ensures safe operation for small commercial and residential energy storage applications.

Key Features
  • Bilingual display (Chinese/English) with comprehensive PACK information summary
  • Direct inverter communication protocol selection via display interface
  • Master power switch for one-touch system operation
  • Stackable design supporting flexible battery capacity expansion
  • Multiple cluster parallel capability supporting up to eight battery packs
Manufacturing Advantages
Factory Direct Supply: Own production base with direct order processing for optimal supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
Customization Service: Product parameters including voltage and interface can be customized to customer requirements
Residential Low Voltage Battery Pack 14.4kWh Solar PV Battery Storage
Technical Specifications
Parameter Specification
Model CH--GLV1-P15
Battery Module Model LFP48V/100Ah
Battery Module Nominal Energy 4.8 kWh
Rated Voltage 48 V
Number of Cell Modules in Single Cluster 3
Single Cluster Battery Energy 14.4 kWh
Maximum number of Clusters in Parallel 8
Operating Voltage Range 42-54.75 V
Recommended Charging Voltage 51.75 V
Recommended Discharge Cut-off Voltage 45 V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D*W*H) 425*700*864 mm
Unit Cluster Weight 199 kg
Communication Mode CAN/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended 10°C to 35°C)
Storage Temperature -20°C to 65°C (Recommended 10°C to 35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
Application: Ideal for residential photovoltaic storage systems, small commercial energy storage, and backup power applications requiring scalable, reliable lithium-ion battery solutions.
