Scalable Low Voltage Battery Pack 9.6kWh 48V 100Ah Solar Inverters And Battery Storage
Scalable Low Voltage Battery Pack 9.6kWh 48V 100Ah Solar Inverters And Battery Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$2000-3000
Application :
Residential
Battery Type :
Lithium-ion Battery
Description

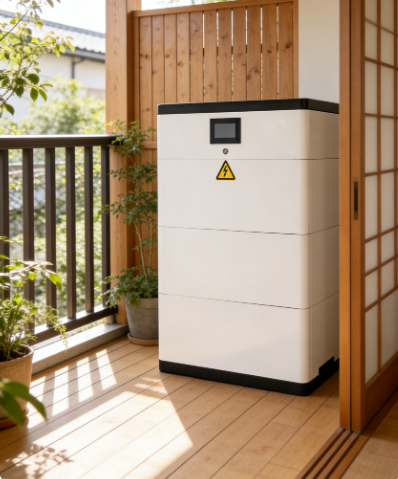

9.6kWh Scalable Lithium-Ion Battery Stack System
Residential photovoltaic energy storage solution with flexible expansion capabilities
Product Overview
This advanced battery stack system features a modular design for flexible expansion and elegant aesthetics. With one-button startup and concealed side wiring, the system offers exceptional user convenience. Pre-configured with mainstream inverter protocols for direct communication, it ensures seamless integration with your photovoltaic setup.
Key Features
  • Bilingual display (Chinese/English) with comprehensive PACK information summary
  • Direct inverter communication protocol selection via display interface
  • Master power switch for one-touch system operation
  • Modular stack design supporting flexible battery capacity expansion
  • Parallel cluster capability supporting up to eight battery packs
Manufacturing Advantages
Factory Direct Supply
Own production base with direct order processing for optimal supply efficiency
Flexible Production
Support for small batch trial orders (MOQ 1 unit)
Customization Service
Product parameters (voltage, interface) tailored to customer requirements
Scalable Low Voltage Battery Pack 9.6kWh 48V 100Ah Solar Inverters And Battery Storage
Technical Specifications
Parameter Specification
Model CH-GLV1-P10
Battery Module Model LFP48V/100Ah
Battery Module Nominal Energy 4.8 kWh
Rated Voltage 48V
Number of Cell Modules in Single Cluster 2
Single Cluster Battery Energy 9.6 kWh
Maximum Number of Clusters in Parallel 8
Operating Voltage Range 42-54.75V
Recommended Charging Voltage 51.75V
Recommended Discharge Cut-off Voltage 45V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D×W×H) 425×700×672 mm
Unit Cluster Weight 145 kg
Communication Mode CNA/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended 10-35°C)
Storage Temperature -20°C to 65°C (Recommended 10-35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
Safety & Reliability
Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe system operation, making it ideal for small commercial and residential energy storage applications.
