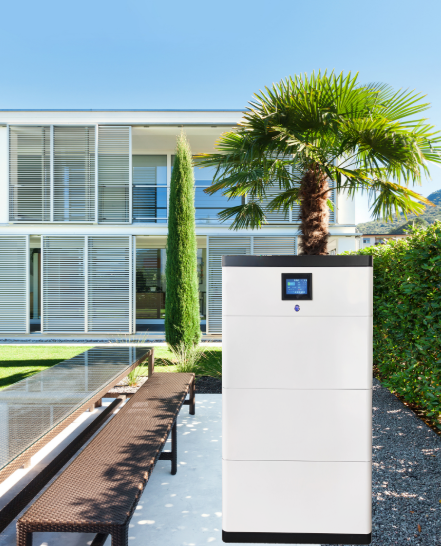

Flexible Expansion Low Voltage Battery Pack 200Ah 48V 19.2Kwh Battery PV Storage
Flexible Expansion Low Voltage Battery Pack 200Ah 48V 19.2Kwh Battery PV Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$2900-3100
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Color :
white
Rated Voltage :
48V
Description
19.2kWh Lithium-ion Battery Stack System with Flexible Expansion for Residential PV Storage
Model: CH--GLV2-P20 | Battery Module: LFP48V/200Ah
Product Overview
This advanced lithium-ion battery stack system features a modular stacked design for flexible expansion and elegant aesthetics. The system offers one-button startup with side-hidden wiring for convenient customer use. With direct compatibility for mainstream inverter protocols and comprehensive multi-level battery protection strategies, this system ensures safe operation for small commercial and residential energy storage applications.
Key Features
  • Bilingual Chinese/English display summarizing all pack information
  • Direct inverter communication protocol selection via screen interface
  • One-button system startup and shutdown functionality
  • Modular stack design enabling flexible battery capacity expansion
  • Multiple cluster parallel capability supporting up to 8 battery packs
Manufacturing Advantages
  • Factory Direct Supply: Own production base with direct order processing for optimal supply efficiency
  • Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
  • Customization Service: Product parameters including voltage and interface can be customized to customer requirements
Flexible Expansion Low Voltage Battery Pack 200Ah 48V 19.2Kwh Battery PV Storage
Technical Specifications
Parameter Specification
Battery Module Model LFP48V/200Ah
Battery Module Nominal Energy 9.6 kWh
Rated Voltage 48 V
Number of Cell Modules in Single Cluster 2
Single Cluster Battery Energy 19.2 kWh
Maximum Number of Clusters in Parallel 8
Operating Voltage Range 42-54.75 V
Recommended Charging Voltage 51.75 V
Recommended Discharge Cut-off Voltage 45 V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D*W*H) 479*700*848 mm
Unit Cluster Weight 228 kg
Communication Mode CAN/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended: 10°C to 35°C)
Storage Temperature -20°C to 65°C (Recommended: 10°C to 35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
