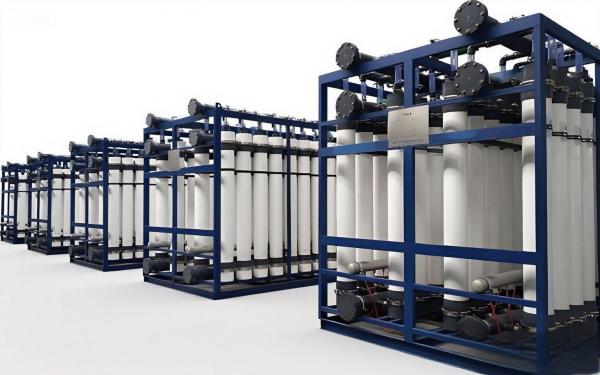

Large Scale Ultrafiltration Membrane System For Municipal Water Supply 200m3/h UF
Large Scale Ultrafiltration Membrane System For Municipal Water Supply 200m3/h UF
Specifications
Brand Name :
HJW
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,Guangdong
MOQ :
1set
Price :
US$380000~US$390000
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Capacity :
200m³/h(Customizable)
Material :
SS/ PVC/ FRP
Pump Brand :
CNP
Recovery Rate :
>90%
Operating Temperature :
5℃ - 39℃
Function :
Water Purification Plant
Description

I.Overview
Ultrafiltration systems are increasingly used in municipal water supply, and their advantages of efficient turbidity removal, microbiological safety, and low operating costs have made them a core process in modern water plants, especially for high turbidity and high microbiological risk water sources. Reasonable selection of membrane type, flux, and cleaning strategy is the key, and in the future, combined with intelligent and new material technology, will further promote the innovation of drinking water treatment technology.


II.Main Process
Raw water → pretreatment (coagulation/microfiltration) → ultrafiltration membrane → disinfection (chlorine/ultraviolet light) → fresh water tank → pipe network


III.Typical Combined Processes

Process Combination Applicable Scenarios Advantages
Coagulation + Ultrafiltration High - turbidity water sources (such as the Yellow River water) Reduce membrane fouling and improve flux
Ozone + Ultrafiltration Water sources with high organic matter content (such as eutrophic water bodies) Degrade macromolecular organic matter and reduce membrane blockage
Activated Carbon + Ultrafiltration Remove off - flavors and pesticide residues Improve taste and reduce disinfection by - products
UF + RO (Reverse Osmosis) High - standard direct drinking water or industrial reuse Deep desalination to ensure ultrapure water


IV.Core Attribute Parameters of Ultrafiltration System

Membrane Performance Parameters
Parameter Typical Value Description
Membrane Pore Size 0.01 - 0.1 μm Can retain bacteria (0.2 - 5 μm), colloids
Molecular Weight Cut - off (MWCO) 10 - 100 kDa Used to distinguish different UF membrane grades
Flux (LMH) 50 - 120 L/m²·h Affected by water quality, temperature, and operating pressure
Operating Pressure 0.5 - 2 bar Low - pressure and energy - saving, much lower than RO (>10 bar)
Recovery Rate 85 - 95% Less concentrated water discharge, suitable for water - saving water plants
Water Quality Control Standards
Index Typical Value of UF Effluent National Standard (GB 5749 - 2022)
Turbidity <0.1 NTU ≤1 NTU
Total Bacterial Count <1 CFU/mL ≤100 CFU/mL
Cryptosporidium/Giardia 100% Retention No definite limit value, but required to be "not detectable"
SDI (Silt Density Index) <3 RO inlet water requires SDI < 5


V.Core Application Scenarios
Surface Water Treatment (Reservoirs, Rivers, Lakes)
Replacement of Traditional Sand Filtration
Emergency Water Supply
Membrane Bioreactor (MBR)


VI.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
