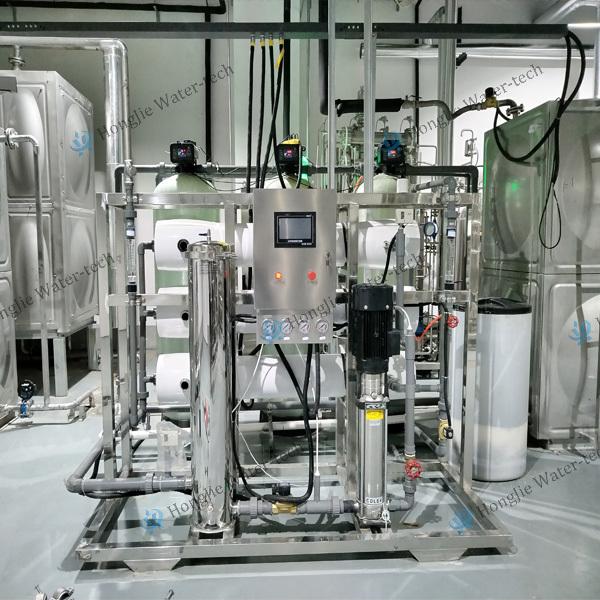

1T/H Energy Saving Drinking Water Purification System 380V/220V/50Hz
1T/H Energy Saving Drinking Water Purification System 380V/220V/50Hz
Specifications
Brand Name :
Hongjie
Model Number :
HJ-UFDr1T
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
US$1450–US$1600
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Model :
HJ-UFDr1T
Production Capacity :
1m³/h
Microbial & Bacterial Removal Rate :
99.99%
Suspended Solids Removal Rate :
99%
Backwash Pressure :
< 0.1 MPa
Backwash Flow Rate :
200 L/m²/hr
Chemical Cleaning :
Based on membrane material and fouling condition
RO system recovery rate :
96%
RO working voltage :
380V/220V/50Hz
Backwash Frequency :
Varies with feed water quality, 15 - 60 min
Description

I.Flow Chart Of UF Water Treatment Equipment
Raw water pump - Sand filter - Carbon filter -Cartridge filter - High pressure pump- UF membrane host

II.Details of Product Description

Specification Description
Model HJ-UFDr1T
Production Capacity 1m³/h
Microbial & Bacterial Removal Rate 99.99%
Suspended Solids Removal Rate 99%
Backwash Pressure < 0.1 MPa
Backwash Flow Rate 200 L/m²/hr
Chemical Cleaning Based on membrane material and fouling condition
RO system recovery rate 96%
RO working voltage 380V/220V/50Hz

III.The Core Logic of Ultrafiltration Energy Efficiency:
Ultrafiltration achieves energy savings through a combination of "low-pressure operation + high-selectivity separation + streamlined processes + efficient water reuse", reducing both direct energy consumption (pumps, equipment) and indirect energy costs (chemicals, water resources, maintenance). Its energy-saving advantages are particularly pronounced when replacing conventional filtration methods or serving as pre-treatment for reverse osmosis systems.
Key Highlights:
Low-Pressure Operation: Operates at 0.1–0.5 MPa (1–5 bar), 1/10 to 1/20 the pressure of reverse osmosis, significantly lowering pump energy requirements.
High-Selectivity Separation: Directly removes colloids, suspended solids, bacteria, and macromolecules without extensive pre-treatment or chemical additives.
Streamlined Processes: Eliminates multi-stage filtration units (e.g., sand filters, clarifiers), reducing equipment footprint and auxiliary energy consumption.
Efficient Water Reuse: Achieves water recovery rates of 90–95%, minimizing wastewater discharge and associated treatment costs.

IV.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
