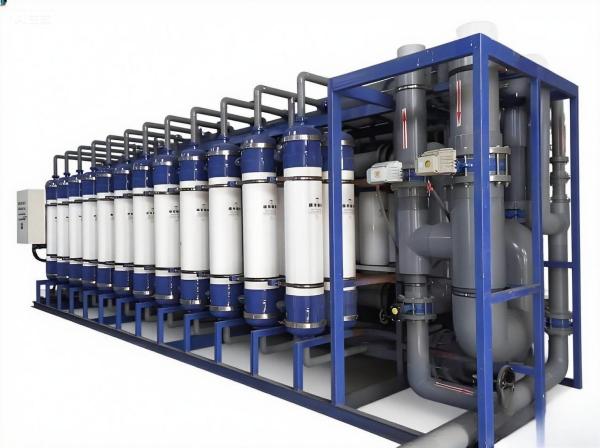

Energy-efficient Ultrafiltration Membrane System For Municipal Wastewater Treatment 150TPH UF
Energy-efficient Ultrafiltration Membrane System For Municipal Wastewater Treatment 150TPH UF
Specifications
Brand Name :
HJW
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,Guangdong
MOQ :
1set
Price :
US$300000~US$310000
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Capacity :
150m³/h(Customizable)
Operating Temperature :
Automatic Control
Recovery Rate :
50%-75%
Pretreatment :
Sand & Carbon Filter
Pump Optional :
Ling Xiao / CNP / Grundfos
Multiple -Choice Control Valve :
Automatic Control
Description

I.Overview
Ultrafiltration (UF) system in municipal wastewater treatment is mainly used for deep treatment of wastewater, reuse and membrane bioreactor (MBR), through precise control of flux, pressure, cleaning strategy, can efficiently remove suspended solids, bacteria and some viruses, the effluent quality can reach the first class A standard or reuse standard.


II.Typical process flow of ultrafiltration system in municipal wastewater

MBR process (mainstream application) :
Municipal wastewater → grid/sand sedimentation tank → biological reaction tank (AO/AAO) → ultrafiltration membrane → disinfection → reuse/discharge


Tertiary treatment (secondary effluent + UF) :
secondary effluent → coagulation/filtration (optional) → ultrafiltration → disinfection → reuse


UF + RO dual membrane process (high-end reuse) :
secondary effluent → ultrafiltration → reverse osmosis → disinfection → industrial pure water


III.Main application scenarios

Application Direction Function Effluent Standard
Membrane Bioreactor (MBR) Replaces the secondary sedimentation tank, with high sludge concentration (8~15 g/L) and small footprint Grade 1 A Standard (COD < 50 mg/L, SS < 10 mg/L)
Advanced sewage treatment + reuse Removes SS and bacteria to ensure the safety of recycled water Standards for Reuse of Urban Recycled Water (GB/T 18920-2020)
RO pretreatment Protects reverse osmosis membranes and prevents colloidal contamination SDI < 3, turbidity < 0.5 NTU
Emergency sewage treatment Rapidly realizes sewage purification (e.g., storm overflow sewage) Temporary discharge standards


IV.Core Attribute Parameters of Ultrafiltration System

Membrane Performance Parameters (MBR vs. Tertiary Treatment)
Parameter MBR Application Tertiary Treatment Application Description
Membrane Pore Size 0.03–0.1 μm 0.01–0.05 μm MBR has slightly larger pores, stronger fouling resistance
Flux (LMH) 15–25 30–50 Flux is affected by sewage pollutant concentration
Operating Pressure 0.2–0.5 bar 0.5–1.5 bar MBR often uses negative pressure suction mode
Sludge Concentration (MLSS) 8–15 g/L - Unique parameter for MBR
Backwash Frequency Every 10–30 minutes Every 30–60 minutes MBR fouls faster, requiring more frequent cleaning
Effluent Quality Comparison
Indicator MBR Effluent Tertiary Treatment UF Effluent Grade 1A Standard
COD (mg/L) <30 <40 <50
SS (mg/L) <5 <10 <10
Turbidity (NTU) <0.5 <1 -
Bacteria Removal Rate >99.99% >99.9% -


V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
