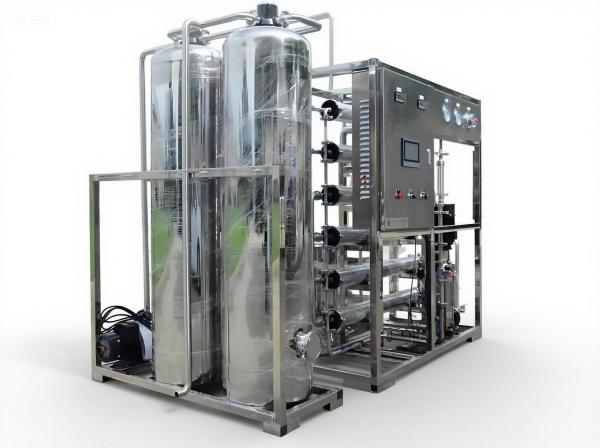

Custom Ultrafiltration Membrane Filter For Mineral Water Production 20TPH Water Purification System With UF+UV
Custom Ultrafiltration Membrane Filter For Mineral Water Production 20TPH Water Purification System With UF+UV
Specifications
Brand Name :
HJW
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,Guangdong
MOQ :
1set
Price :
US$44000~US$44500
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Capacity :
20m³/H
Tank Material :
Stainless steel， FRP
Membrane Material :
PVDF、PES
Operating Pressure :
0.5 - 2 bar
Recovery Rate :
90 - 95%
After sevice :
24/7 support ，2-Year warranty
Description

I.Overview
Ultrafiltration (UF) system plays a vital role in mineral water production, realizing the perfect balance of high efficiency sterilization and mineral retention, which is the core process of natural mineral water production, mainly used for removing suspended solids, colloids, microorganisms, and at the same time retaining the mineral content to ensure that the water quality is safe and in line with the standard of natural mineral water, with its low-energy consumption, no chemical additives, and easy automation, which is in line with the modern trend of healthy drinking water. It is characterized by low energy consumption, no chemical additives and easy automation, which is in line with the modern healthy drinking water trend.


II.Typical process

Basic process :
Raw water → rough filtration (5~50 μm) → ultrafiltration (0.01~0.1 μm) → ozone/ultraviolet disinfection → bottling

Combined process


Highly polluted water source:
Raw water → coagulation → sand filtration → ultrafiltration → activated carbon adsorption → ozone → filling

Ultrafiltration + RO process


Partial demineralization needs:
Raw water → ultrafiltration → reverse osmosis (partial water flow) → mixing → mineralization → filling


III.Core Attribute Parameters

Performance Requirements for Ultrafiltration Membranes
Parameter Typical Value Description
Membrane Material PVDF, PES Resistant to oxidation (ozone cleaning), strong anti - fouling property.
Pore Size 0.01 - 0.1 μm Retain bacteria (0.2 - 1 μm), allow mineral ions to pass through.
Flux (LMH) 80 - 150 (25℃) Flux needs to be reduced for low - temperature water sources.
Operating Pressure 0.5 - 2 bar Low - pressure operation, energy - saving.
Recovery Rate 90 - 95% Less concentrated water discharge, water - saving.
Outlet Water Quality
Index Ultrafiltration Effluent Mineral Water National Standard (GB 8537 - 2018)
Turbidity (NTU) < 0.1 ≤ 1
Total Bacteria Count < 1 CFU/mL ≤ 100 (≤ 0 before filling)
Coliform Bacteria Not detectable Not detectable
Mineral Retention Rate 100% (ion level) Comply with the mineralization degree of raw water


IV.Applicable scenarios
Natural mineral water
Mountain water/well water
Terminal filtration before filling


V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
