Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Specifications
Brand Name :
Hongjie
Model Number :
HJ-UF10T
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen ,China
MOQ :
1Set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
7-10 working days
Packaging Details :
export standard wooden case
Core components :
Pump, PLC, UF membranes, Motor...
Product name :
UF system
Application :
Water Purification
Dimension(L*W*H) :
200*80*190cm
Warranty :
1 Year
Weight (kg) :
1000
Description

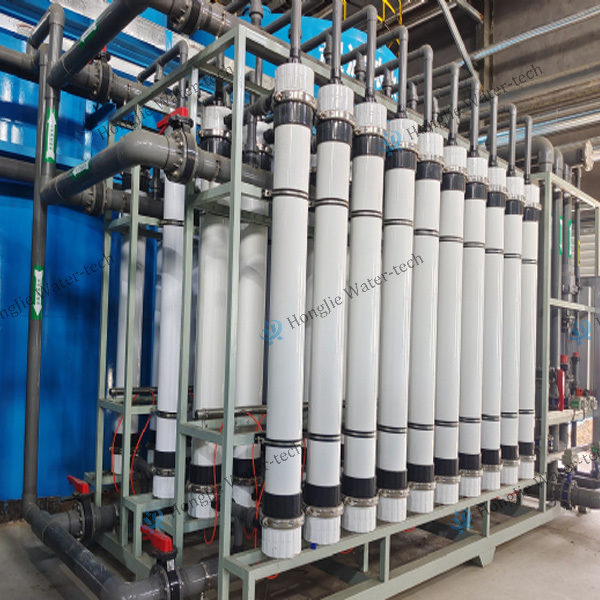

Integrated Ultrafiltration System for Efficient Domestic Sewage Treatment
The Integrated Ultrafiltration (UF) Sewage Filtration System uses ultrafiltration membranes as the filtration medium and operates under a pressure differential across the membrane. The system operates under constant pressure, with feed water flowing across the UF membrane, which has dense micropores. These micropores allow only water and small molecules to pass through, forming the permeate, while substances larger than the membrane pores are retained, creating the concentrate.
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
This system is ideal for applications like reverse osmosis (RO) pretreatment, reclaimed water reuse, and urban and rural water supply treatment. Its processing capacity can be tailored to meet specific needs, ranging from 0.5 to 100 tons per hour.
Ultrafiltration System Process Flow
Raw Water → Raw Water Pump → Quartz Sand Filter → Activated Carbon Filter → Resin Softener → Security Filter → High-Pressure Pump → Reverse Osmosis System → UV Sterilizer → Ozone Sterilizer → Finished Water Tank
Product Specifications
Item Specification
Inlet Water Pressure 0.2 ~ 0.4 MPa
pH Range 6 ~ 8.5
Water Temperature 25°C
Ion Removal Rate ≥ 99%
Bacterial & Virus Removal Rate ≥ 99%
Recovery Rate ≥ 60%
Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate Integrated UF System for Domestic Wastewater Treatment with 0.5 to 100 Tons per Hour Capacity, 99% Bacterial & Virus Removal, and 60% Recovery Rate
Frequently Asked Questions
Why did I choose your product?
We have advanced technology, can provide lower prices, better product quality, higher performance, lower maintenance costs, and perfect after-sales service.
How long does it usually take for your products to ship?
Generally, the delivery time is 1-7 working days (depending on raw materials stocking).
Do you offer OEM and ODM services?
Yes. We can customize the LOGO and products according to your needs.
Can I get a lower price?
Of course, please contact us, and we can give you a lower price.
What if the product breaks down in the future?
Don't worry, we offer a very long warranty.
What can you buy from us?
Carbon Filter, Filter Housing, Reverse Osmosis Water Purifier System, Automatic Filter Softener Valve.
Guidelines for Getting a Proper Quotation
  1. Tell us the production capacity you want (500L/H, 1T/H, 2T/H...)?
  2. What is your source water (tap water/underground water...)?
  3. What is the product water used for (drinking/bottled water...)?
  4. If you have the water report, please send it to us.
