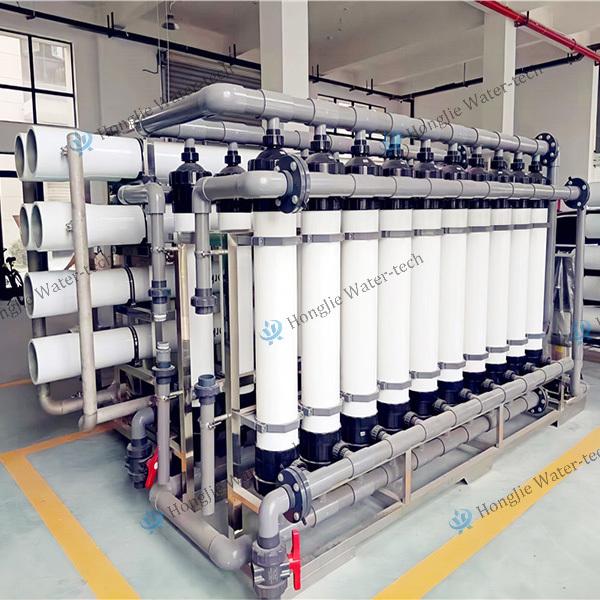

10000LPH Ultrafiltration Equipment UF RO System High Performance
10000LPH Ultrafiltration Equipment UF RO System High Performance
10000LPH Ultrafiltration Equipment UF RO System High Performance
10000LPH Ultrafiltration Equipment UF RO System High Performance
10000LPH Ultrafiltration Equipment UF RO System High Performance
10000LPH Ultrafiltration Equipment UF RO System High Performance
Specifications
Brand Name :
Hongjie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1Set
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
>300sets/month
Delivery Time :
15-20working days
Packaging Details :
export standard wooden case
Model Number :
HJ-UF10T
Model :
10000L/H
Feed Water Quality :
Municipal tap water or well water
Effluent Water Quality :
Purified water meeting customer requirements
pH Range :
2 - 13
Operating Temperature :
5 - 45°C
Microbial & Bacterial Removal Rate :
99.99%
Suspended Solids Removal Rate :
99%
Operating Mode :
< 0.1 MPa
Description

Ultrafiltration Equipment Introduction

Industrial Wastewater Treatment Plant Ultrafiltration Osmosis Grey Water Recycling System UItrafiltration ( UF ) is one of the most widely used membrane separation technology . It is mainly used for separating macromolecules in solution. UF system has a great effect in separation, concentration , deep purification , clarificatlon , sterilization and macromolecular substances. In the field of water treatment system , ultra filtration system can be used to remove colloids in water , particles , bacteria , viruses , heat and macromolecule organic matters etc.. Then product water will be fresh purified water.

Process of ultra filtration system
raw water + raw water tank + raw water pump + sand filter + carbon filter + softener (optional) + security filter + ultra filtration system + pure water tank + UV sterilizer (ozone generator) + precision filter + water point

Components of the Product:

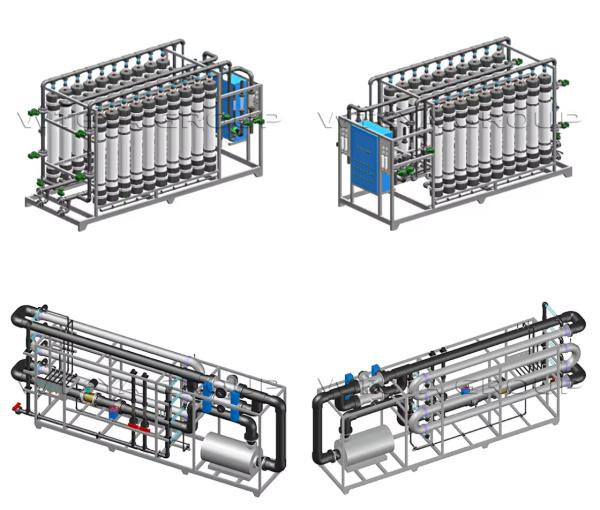

The main components of the ultrafiltration system include: pumps, bag filters, hollow fiber UF membranes, local instruments, dosing systems,a fully automatic control system, and framework platforms.

Operational Parameters

  • Filtration Mode: Cross-flow or Dead-end Filtration with Backwashing and Rapid Flushing
  • Backwash Pressure: <0.1MPa
  • Backwash Flow Rate: 200L/m²/hr
  • Backwash Frequency: Varies with Inlet Water Quality (15-60min)
  • Backwash Duration: 30-60sec
  • Chemical Cleaning: Tailored to Membrane Material and Fouling Conditions
  • Sterilization Treatment: Weekly to Monthly NaClO Flushing
  • Enhanced Regeneration: High-intensity flushing optimizes membrane recovery.

Inquiry Guides
To find the most appropriate system/machine/plant for your use, please advise the following information ready.

1-Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)·Product water purpose(drinking, irrigation, industry process orothers)·
2-Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water· Iron· Manganese· TSS(Total
Suspended Solid)· SDI(Silting Density Index)
< 3· Water must be free from oils and grease· Chlorine must be removed· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase. ·
It is necessary to make water analysis reprot for borehole water,lake water,
seawater.
