9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
9-inch PVDF Integrated Ultrafiltration (UF) System
Specifications
Model Number :
HJ-UF10T
Delivery Time :
7-15 working days
Bacteria/Colloid Removal Rate :
≥99%
Product name :
UF system
Membrane Material :
PVDF (Hydrophilic Modified)
Warranty :
1 Year
Core Membrane Type :
9-inch (225mm OD) PVDF Hollow Fiber UF Membrane
Brand Name :
Hongjie
Weight (kg) :
1000
Packaging Details :
export standard wooden case
Effluent Turbidity :
≤0.1 NTU
MOQ :
1Set
Application :
Water Purification
Certification :
ISO 14001,ISO 9001,CE,EPA
Price :
negotiation
Payment Terms :
T/T,Western Union
Filtration Precision :
0.01μm
Place of Origin :
Shenzhen ,China
Core components :
Pump, PLC, UF membranes, Motor...
Supply Ability :
>300sets/month
Control System :
PLC Automatic Intelligent Control
Description
9-inch PVDF Integrated Ultrafiltration (UF) System
Featuring 9-inch PVDF hollow fiber membranes, the unit is factory-assembled on a skid; on-site installation requires only water and power connections to produce high-quality permeate.
9-inch PVDF Integrated Ultrafiltration (UF) System
Ultrafiltration System Process Flow

Raw Water → Raw Water Tank → Self-priming Pump → 5μm Cartridge Filter → Ultrafiltration (UF) System → UF Permeate Tank → RO/EDI System→ UV Sterilizer → Ozone Sterilizer → Finished Water Tank

Process Positioning

9-inch PVDF Integrated Ultrafiltration (UF) System
Parameter
Raw Water (Influent)
After UF Pretreatment (Target)
Key Function
Turbidity
0.5–100 NTU
≤0.1 NTU
Reduce physical fouling on RO membrane
SDI
3–20
≤1.0
Reduce RO pressure drop rate
DOC
1–20 mg/L
≤ 2 mg/L
(depending on downstream process)
Minimize organic fouling; reduce RO/EDI load
Microorganisms
10²–10⁶ CFU/mL
≤ 10 CFU/mL
Prevent biofouling on RO/EDI membranes

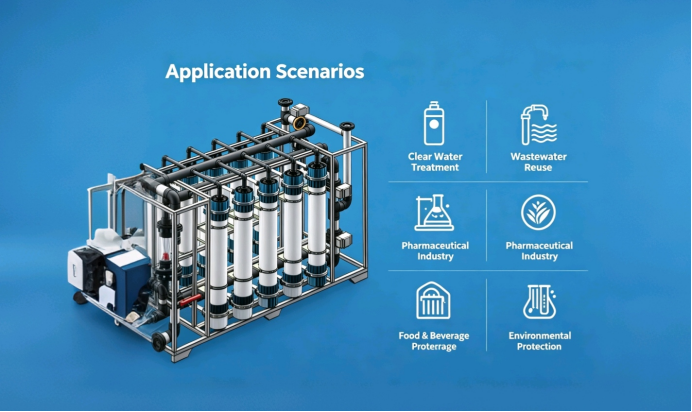

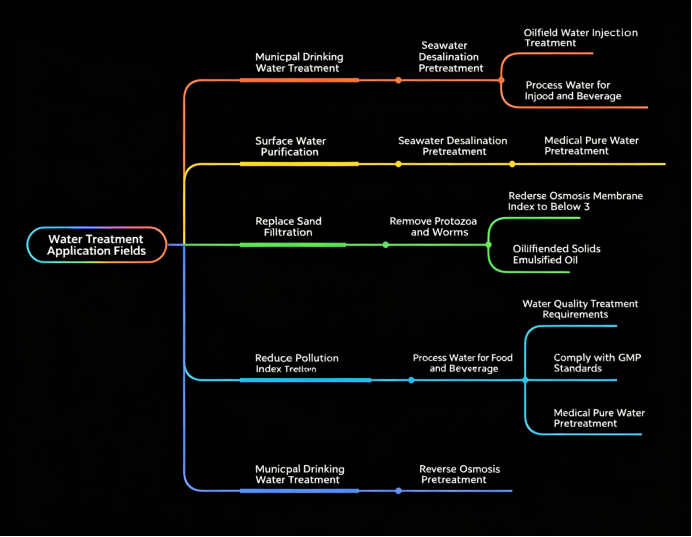

Applications

9-inch PVDF Integrated Ultrafiltration (UF) System


Why choose us?

Feature 1

The membrane elements are sourced from leading membrane manufacturers, ensuring high-quality components

Feature 2

High recovery rates and superior quality enable purification and high-fold concentration

Feature 3

The process involves no phase change, preventing damage to bioactive substances caused by high temperatures

Feature 4

Low energy consumption, short production cycles, and low operating costsWe have advanced technology, can provide lower prices, better product quality, higher performance, lower maintenance costs, and perfect after-sales service



Guidelines for Getting a Proper Quotation

Tell us the production capacity you want (500L/H, 1T/H, 2T/H...)?

What is your source water (tap water/underground water...)?

What is the product water used for (drinking/bottled water...)?

If you have the water report, please send it to us.
