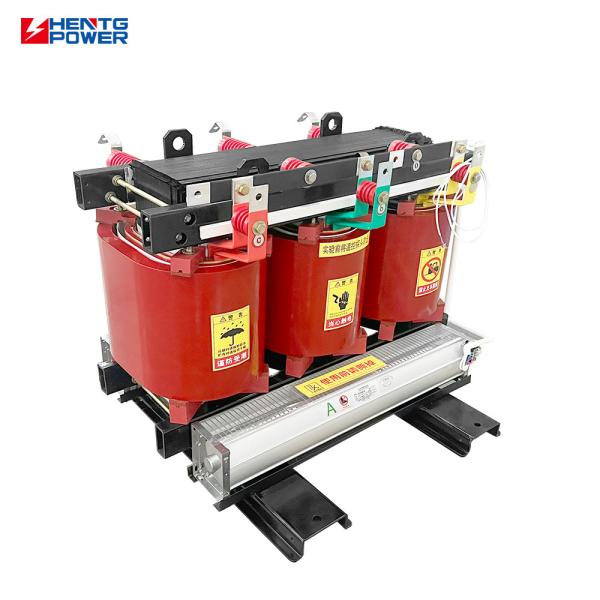

Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)11
Certification :
CE
Price :
CN¥121500/pieces
Type :
power transformer, distribution transformer, Dry TypeTransformer
Frequency :
50Hz, 60Hz
Winding Material :
Aluminum
application :
Power
Phase :
Three
Coil Structure :
Layered Winding
Coil Number :
Triple-winding coil
Input Voltage :
10kV
Output Voltage :
400V
Product name :
Three Phase Transformer
Cooling Method :
Fan System
Application :
Power Distribution System
Material :
Aluminum Winding
Transformer type :
Dry Isolation
Vector Group :
Dyn11/Yyn0
Advantage :
Customer's Requested Specifications
Usage :
Power Electronic
Transformer Type :
dry type Transformer
Applications :
Industrial, Commercial, Renewable Energy, etc.
Rated Voltage :
6-10kV
Insulation Class :
Class F or H
Temperature Rise :
Up to 150°C
Coil :
Copper/Aluminum Coil
High Voltage :
6KV To 35KV
Cool Method :
AN/AF
MOQ :
2 sets
Description
Energy Saving Dry Type Transformer Small Cast Resin 2000KVA for Efficient Power Transformer
PRODUCTS DESCRIPTION
The SCB11 Series 2000kVA epoxy resin cast dry-type transformer is engineered with premium materials and advanced manufacturing techniques. It offers high efficiency, low loss, low noise, and superior fire resistance. Ideal for power distribution systems in commercial buildings, industrial plants, hospitals, and data centers.
Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7
FEATURES
  • High-permeability cold-rolled silicon steel core minimizes no-load loss
  • Fully cast epoxy resin insulation offers excellent dielectric strength and moisture resistance
  • Optional forced-air cooling system increases load capacity
  • Oil-free and maintenance-free design, eco-friendly
  • High short-circuit withstand capacity, fire safety, and low operational noise
BENEFITS
  • Reduced long-term energy costs
  • Enhanced safety and stability of the power system
  • Avoids oil leakage and contamination associated with oil-filled transformers
  • Space-saving, suitable for indoor use
  • Zero maintenance minimizes labor costs
ADVANTAGES
  • Complies with national energy efficiency standards
  • Service life over 20 years
  • High reliability for mission-critical applications
  • Easy to transport and install, no special containment needed
  • Low operating cost and energy expenditure

Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
