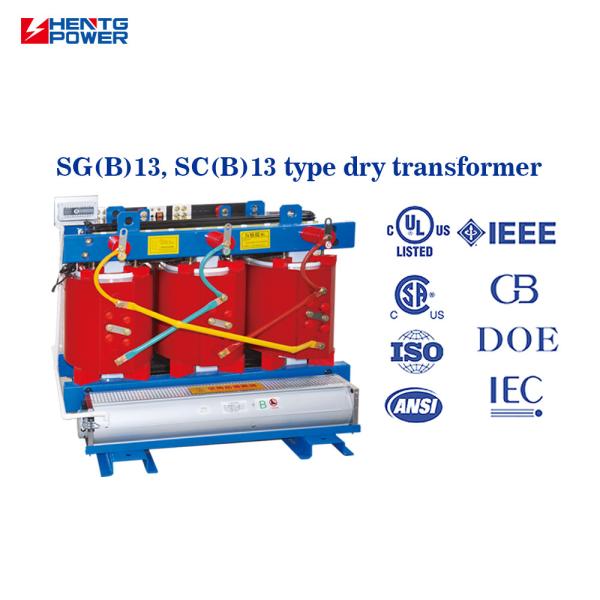

Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC (B) 13
Price :
CN¥53000/sets
Certification :
CE
Frequency :
50Hz, 60Hz, 50/60Hz
Phase :
Three
Coil Number :
Multi Winding
application :
distribution system
Output Voltage :
400V
Input Voltage :
11kV
Type :
Dry Type Transformer, Voltage Regulator Transformer, Isolation Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer, Dry
Product name :
Three Phase Transformer
Application :
Power Distribution System Power Transformer
Rated capacity :
250KVA
Cooling Method :
Air Cooling
Winding Material :
Copper
MOQ :
2 sets
Description
SCB13 Series 250kVA Dry-Type Isolation Transformer | Reliable & Safe Power Distribution for Industrial Systems
PRODUCTS DESCRIPTION
The SCB13 Series 250kVA dry-type isolation transformer is designed to provide stable and safe power distribution for industrial equipment, automation systems, and sensitive electronic devices. With its epoxy resin cast core and high-quality materials, it offers exceptional insulation performance and long-lasting durability. This transformer is ideal for commercial and industrial applications, ensuring minimal maintenance and a high degree of safety.
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Dry Type Transformer 3 Phase Isolation Transformer 250kVA For Industrial Systems
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

FEATURE

  • Electrical Isolation: Fully isolates primary and secondary circuits, preventing electrical noise and interference.

  • Epoxy Resin Insulation: Offers superior moisture resistance, high dielectric strength, and long-term durability.

  • Low Noise Level: Operating noise ≤ 50 dB, making it ideal for sensitive environments.

  • Oil-Free Design: Eco-friendly and safe for enclosed installations.

  • High Efficiency: Low no-load and load losses, reducing energy consumption.

BENEFITS

  • Protects Sensitive Equipment: Reduces the risk of power surges, transients, and harmonic distortion.

  • Minimized Maintenance Needs: No oil replacement or filter maintenance required.

  • Increases Equipment Lifespan: Protects downstream electronics and machinery from voltage spikes.

  • Safe for Indoor Applications: Suitable for office buildings, data centers, and industrial plants.

  • Enhanced Power Quality: Provides clean and stable electricity, ensuring reliable system performance.

ADVANTAGE

  • High Short-Circuit Strength: Built to withstand dynamic and thermal stresses during faults.

  • Flexible Voltage Options: Can be customized to meet specific voltage and capacity requirements.

  • Complies with International Standards: Certified according to IEC, GB, and CE standards for safety and performance.

  • Long Service Life: Durable materials and design ensure over 20 years of reliable operation.

  • Compact Design: Saves space while providing reliable power distribution.

APPLICATION SCENARIO

  • Industrial equipment power supply

  • Data centers and server rooms

  • Automation control systems

  • CNC machinery and precision devices

  • Hospitals and medical electronics

  • Commercial buildings and high-rise towers


COMPANY PROFILE
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
