SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Price :
CN¥51670/units
Certification :
CE
Frequency :
50Hz, 60Hz
Phase :
Three
Coil Number :
Three Windings, Multi Winding
application :
power transformer
Coil Structure :
round coil, Disc Coil, layer coil, Shell-Type Coil
Output Voltage :
400V
Input Voltage :
10kV
Type :
Dry Type Transformer, Isolation Transformer
Rated capacity :
500KVA 630 KVA
Vector Group :
Dyn11 / Yyn0
Tapping Range :
2*2.5%/ 5%
Advantage :
Good Thermal Stability
Winding Material :
Aluminum
Application :
Tough conditions, such as high-humidity
Product name :
3-Phase Dry Type Transformer
MOQ :
2 sets
Description
SCB13 Series 630kVA Dry-Type Isolation Transformer | Safe, Efficient, Maintenance-Free Power Distribution
PRODUCTS DESCRIPTION

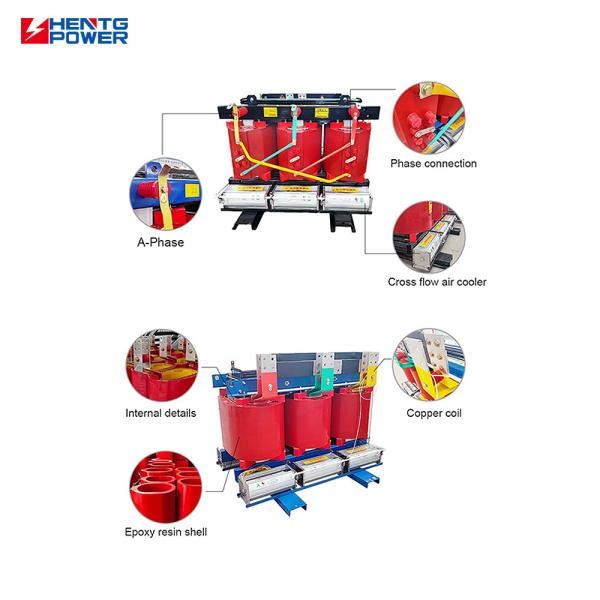

The SCB13 630kVA dry-type isolation transformer adopts high-quality epoxy resin cast insulation and flame-retardant structure, designed to deliver stable, safe, and efficient power in sensitive and demanding environments. Ideal for hospitals, data centers, commercial buildings, and industrial automation, this transformer provides full electrical isolation between input and output circuits, significantly improving system safety and power quality.SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

FEATURES

  • Electrical Isolation: Prevents interference, ground loops, and surges

  • High-Performance Core: Uses low-loss silicon steel, reducing energy loss

  • Resin Cast Insulation: Excellent thermal performance, self-extinguishing, moisture-proof

  • Quiet Operation: Noise level ≤ 50dB, suitable for indoor use

  • No Oil, No Risk: Fireproof, explosion-proof, eco-friendly

BENEFITS

  • Boost Power Quality: Reduce harmonic interference and ensure stable voltage

  • Improve Device Lifespan: Protect downstream sensitive equipment

  • Energy Cost Savings: High efficiency reduces long-term operational costs

  • Reliable for Critical Systems: Excellent for uninterrupted or mission-critical environments

ADVANTAGE

  • Maintenance-Free: No oil changing, leakage, or filtering required

  • Long Service Life: Designed for 20+ years of reliable operation

  • Safe for Human Proximity: Fully enclosed, anti-touch design

  • Adaptable Installation: Floor-mounted or cabinet-integrated options

APPLICATION SCENARIO

  • Data Centers

  • Hospitals

  • Commercial Buildings

  • Industrial Automation

  • Substations & Power Rooms

  • Public Infrastructure

FAQ
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

Q:How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide?
Accept OEM, business payment are negotiated.
