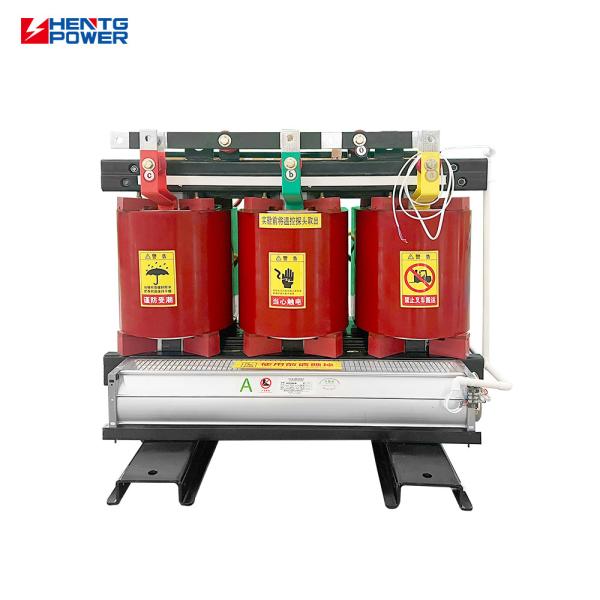

Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
MOQ :
2 sets
Price :
CN¥161500/units
Certification :
CE
Type :
distribution transformer, SC-B-13
Material :
Copper, Copper Winding
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Potential
Phase :
Three
Coil Structure :
TOROIDAL
Coil Number :
Multi-winding coil
Input Voltage :
10kV
Output Voltage :
0.4kV
Product name :
Three Phase Transformer
Rated capacity :
30KVA-2500KVA
Cooling Method :
ANAF
Feature :
High Security
Rated voltage :
6/6.3/10/10.5/11KV
Vector Group :
Dyn11/Yyn0
Working frequency :
50/60KHz
Description
SCB13 Series 1250kVA Cast Resin Dry-Type Transformer | High Efficiency | Fire-Safe | Eco-Friendly
PRODUCTS DESCRIPTION
The SCB13 1250kVA dry-type transformer is a premium cast resin transformer designed for safe, low-loss, and maintenance-free operation. With upgraded insulation and reduced losses, it is widely used in urban power distribution, commercial buildings, factories, hospitals, and energy projects. SCB13 performs exceptionally well under heavy load and fluctuating conditions, making it ideal for demanding industrial environments.Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Quiet Operation Cast Resin Dry Type Transformer Fire Safe 1250kVA Moisture Resistant
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

FEATURES

  • High-Efficiency Design: No-load and load losses significantly lower than SCB10/SCB11 series.

  • Vacuum Cast Coil: Uses F-class epoxy resin casting with excellent mechanical strength and insulation.

  • Flame-Retardant & Safe: Meets F1 fire safety standards, smokeless and non-toxic in combustion.

  • Moisture-Resistant: Operates reliably in high humidity and condensation-prone indoor locations.

  • Low Noise Operation: Designed with minimal vibration and sound (<50 dB), suitable for quiet zones.

BENEFITS

  • Ideal for Industrial and Public Facilities: Designed to handle high and unstable loads efficiently.

  • Green & Clean Power Solution: No oil fumes, no emissions, eco-compliant.

  • Reduces Operational Costs: Low loss = lower energy bills = faster return on investment.

  • Safe for Indoor Environments: Especially suitable for basements, tunnels, and sealed buildings.

ADVANTAGES

  • Long-Term Reliability: Durable structure resists cracking, aging, and electrical stress.

  • No Oil Required: Zero oil leakage risk, no fire hazard, and no pollution.

  • Minimal Maintenance: No daily inspection or oil testing needed.

  • Smart Monitoring Ready: Optional temperature control and RS485/Modbus integration for automation.

  • Flexible Configuration: Available in various voltage combinations for global markets.

APPLICATION SCENARIO

  • Industrial Plants & Workshops

  • Commercial Buildings & Shopping Malls

  • Hospitals & Medical Facilities

  • Educational Institutions

  • Renewable Energy & EV Charging Stations

FAQs
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
