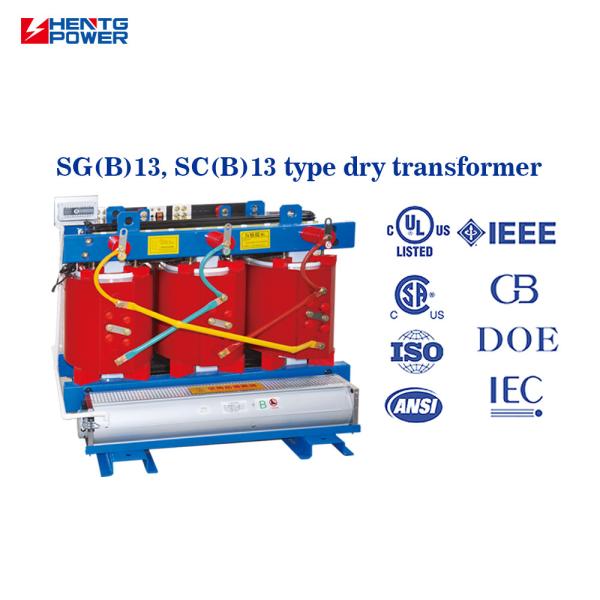

Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Certification :
CE
Price :
CN¥20000/pieces
Type :
power transformer, distribution transformer, Dry TypeTransformer
Frequency :
50Hz, 60Hz
Winding Material :
Aluminum
application :
Power
Phase :
Three
Coil Structure :
Layered Winding
Coil Number :
Triple-winding coil
Input Voltage :
10kV
Output Voltage :
400V
Cooling Method :
Fan System
Product name :
Three Phase Transformer
Material :
Aluminum Winding
Application :
Power Distribution System
Vector Group :
Dyn11/Yyn0
Transformer type :
Dry Isolation
Usage :
Power Electronic
Advantage :
Customer's Requested Specifications
MOQ :
2 sets
Description
SCB13 Series 100kVA Dry-Type Isolation Transformer | Low Noise | Safe & Stable Power for Precision Equipment
PRODUCTS DESCRIPTION
The SCB13 Series 100kVA dry-type isolation transformer is designed to provide clean, reliable power to sensitive equipment in industrial and commercial environments. With epoxy resin vacuum casting and high-performance silicon steel core, it features strong electrical isolation, fire resistance, and maintenance-free operation. Ideal for control systems, laboratories, and industrial automation setups.
Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Epoxy Resin 100kVA Dry Type Isolation Transformer Low Noise For Precision Equipment
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

FEATURE

  • Full Electrical Isolation: Separates primary and secondary circuits to eliminate electrical noise and interference.

  • Epoxy Resin Casting: Moisture-proof, dustproof, high mechanical strength.

  • High-Quality Silicon Steel Core: Reduces core loss and ensures energy efficiency.

  • Quiet Operation: Noise level ≤ 50 dB, suitable for indoor environments.

  • Environmentally Friendly: Oil-free, non-toxic, flame-retardant material.

BENEFITS


After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.

RECOMMEND PRODUCTS

  • Improves Equipment Safety: Protects electronic loads from power surges and transients.

  • No Risk of Oil Leakage: Dry-type construction eliminates environmental hazards.

  • Simplified Maintenance: No oil replacement or filtration required.

  • Ideal for Indoors: Flame-retardant and low-noise design enables placement in office or lab spaces.

  • Stable Output: Reduces harmonic distortion, suitable for precision electronics.

ADVANTAGE

  • Compact Structure: Saves installation space and supports modular setups.

  • Energy Efficient: Lower operational losses compared to older transformer models.

  • Reliable Insulation: Long-lasting, thermally stable insulation system.

  • Customizable Inputs/Outputs: Flexible voltage combinations as required.

  • Certified Quality: Meets IEC, GB, and CE standards.

APPLICATION SCENARIO

  • Industrial automation systems

  • Laboratory equipment

  • Medical electronics

  • Communication base stations

  • Educational and research institutions

  • CNC machinery and control panels
