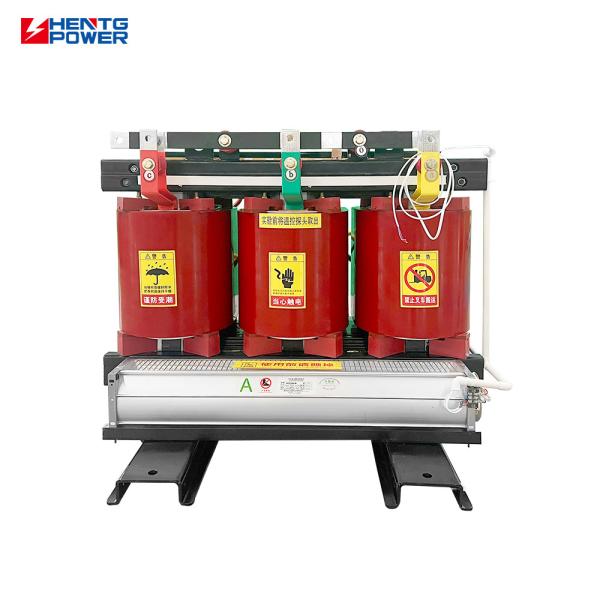

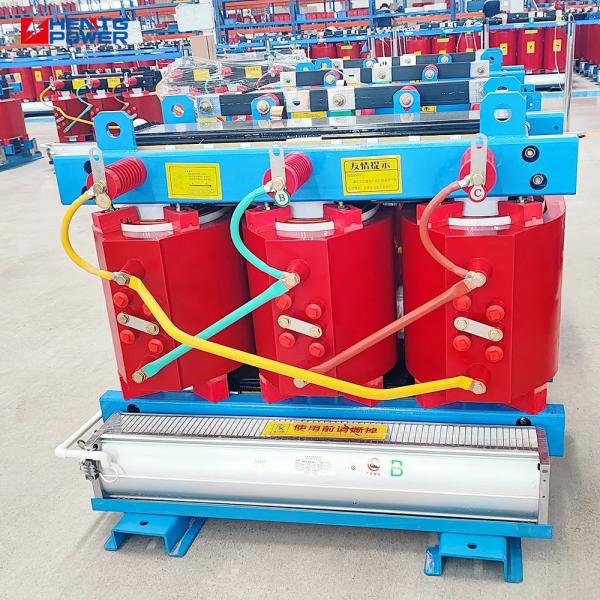

Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Certification :
CE
Price :
CN¥26170/pieces
Type :
power transformer, distribution transformer, Dry TypeTransformer
Frequency :
50Hz, 60Hz
Winding Material :
Copper
application :
Power
Phase :
Three
Coil Structure :
Layered Winding
Coil Number :
Triple-winding coil
Input Voltage :
10kV
Output Voltage :
400V
Cooling Method :
Fan System
Product name :
Three Phase Transformer
Application :
Power Distribution System
Material :
Copper Winding
Vector Group :
Dyn11/Yyn0
Advantage :
Customer's Requested Specifications
Transformer type :
Dry Isolation
Usage :
Power Electronic
Insulation Material :
epoxy resin
Standard :
IEC60076
Insulation :
B Class
Original :
China
Item :
indoor dry type transformer
Materials :
aluminum/copper
Hs Code :
85043190
Voltage :
up to 35kv
Noise Level :
Less than 60 dB
Product Application :
Power Distribution System
Capacity :
30-2500kVA
Highest Machinery Speed :
140m/min
MOQ :
2 sets
Description
Dry Type Transformer Outdoor Distribution Transformer 80 Kva 10Kv Voltage 3 Phase Transformer
PRODUCTS DESCRIPTION
The SCB13 80kVA epoxy-resin cast dry-type isolation transformer is designed to meet the demands of modern, sensitive electrical environments. Featuring compact dimensions, low noise, and high fire resistance, it’s ideal for applications such as medical devices, communication equipment, automation systems, and precision instruments. This transformer ensures galvanic isolation between primary and secondary circuits, significantly reducing electrical interference and enhancing equipment safety.Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

FEATURES

  • Compact Size: Ideal for tight spaces and indoor environments

  • Epoxy Resin Insulation: High dielectric strength, moisture-proof and dust-resistant

  • Electrical Isolation: Eliminates ground loops and reduces EMI/RFI

  • Low Noise Operation: Quiet enough for offices, labs, and medical use

  • Eco-Friendly Design: Oil-free, low-maintenance, zero pollution

BENEFITS

  • Improved Equipment Lifespan through stable power supply

  • Lower Operating Costs with high energy efficiency

  • Quiet & Safe Operation ideal for residential or office spaces

  • Peace of Mind with long-lasting, maintenance-free design

ADVANTAGE

  • Reliable Protection for Sensitive Devices

  • Minimizes Downtime Due to Power Disturbances

  • Easy Installation – No Special Foundation Needed

  • Conforms to IEC/GB Safety and Performance Standards

APPLICATION SCENARIO

  • Office Buildings

  • Hospitals

  • Telecommunication Rooms

  • Precision Laboratories

  • Industrial Control Panels

  • Educational Facilities

COMPANY PROFILE
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
