SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
SC11
Price :
CN¥50000-63200/sets
Certification :
CE
Frequency :
60Hz, 50Hz, 50/60Hz
Phase :
Three
Coil Number :
Three Windings, Multi Winding, Two Windings, Single Winding
application :
distribution system
Coil Structure :
Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil
Output Voltage :
400V
Input Voltage :
35kV
Type :
Field Adjustable Transformer, AUTOTRANSFORMER, Dry Type Transformer, Voltage Regulator Transformer, Isolation Transformer, Dual Winding Transformer, Dry
Product name :
Three Phase Transformer
Application :
Power Distribution System Power Transformer
Rated capacity :
200KVA
Material :
Copper Winding
MOQ :
2 sets
Description
SCB11 Series 200kVA Dry-Type Transformer | Safe, Efficient & Maintenance-Free Power Solution
PRODUCTS DESCRIPTION
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA

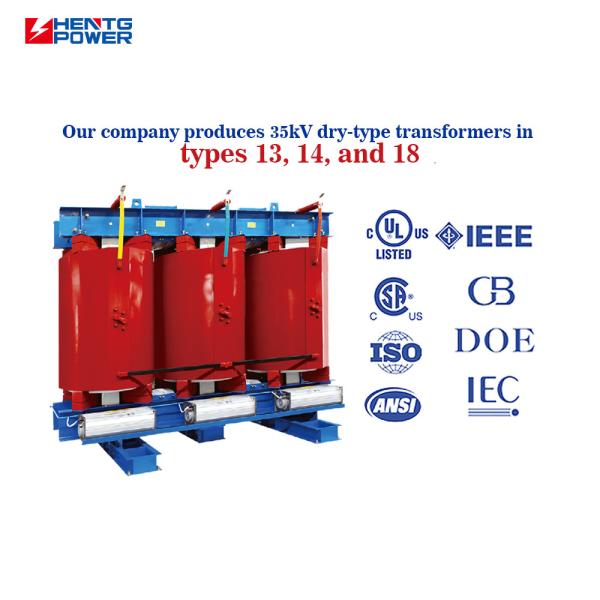

35kV dry-type power transformer




Rated Capacity
Voltage Ratio
Vector Group
No-load Losses(kw)
Inpedence
30kva
380v/3kv/6kv/11kv/33kv














Dyn11/Yd11/Yyno
0.1
4%
50kva
380v/3kv/6kv/11kv/33kv

0.13
4%
100kva
380v/3kv/6kv/11kv/33kv

0.2
4%
200kva
380v/3kv/6kv/11kv/33kv

0.34
4%
315kva
380v/3kv/6kv/11kv/33kv

0.42
4%
500kva
380v/3kv/6kv/11kv/33kv

0.6
4%
1000kva
380v/3kv/6kv/11kv/33kv

1.15
4.50%
1250kva
6kv/11kv/33kv


4.50%
2500kva
11kv/33kv

2.3

4000kva
11kv/33kv

2.8

10mva
11kv/33kv



40mva
11kv/33kv



100mva
11kv/33kv



SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA

Product Overview

The SCB11 Series 200kVA Dry-Type Transformer is engineered to deliver safe, efficient, and environmentally friendly power distribution for commercial and industrial applications. Its epoxy resin insulation and oil-free, air-cooled design ensure low maintenance, high reliability, and excellent performance in demanding indoor environments. Ideal for settings where safety, low noise, and long service life are crucial.

FEATURES

  • Epoxy Resin Cast Insulation: Enhances thermal stability and electrical insulation, offering superior resistance to dust, humidity, and fire.

  • Air-Cooled (AN): Efficient heat dissipation without the need for oil or forced ventilation.

  • Low Loss Design: Optimized magnetic core and copper windings reduce load and no-load losses.

  • Quiet Operation: Sound level ≤ 50 dB, suitable for indoor environments.

  • Flame-Retardant Materials: Meets strict fire safety standards for peace of mind in enclosed spaces.

  • Three-Phase Output: Ensures stable power delivery for balanced loads.


BENEFITS

  • Reliable Power Supply: Delivers steady voltage output with minimal fluctuations, protecting sensitive equipment.

  • Low Maintenance Costs: Dry-type construction eliminates the need for oil monitoring or fluid replacement.

  • Environmentally Friendly: Free of oil and hazardous substances, safe for schools, hospitals, and office buildings.

  • Space-Saving Design: Compact structure suitable for indoor electrical rooms and tight installation spaces.

  • Long-Lasting Performance: Heat-resistant design prevents aging and degradation over time.


ADVANTAGE

  • Excellent Safety Profile: Fireproof, explosion-proof, and non-toxic design ensures maximum operational safety.

  • IEC & CE Certified: Fully compliant with international safety and performance standards.

  • Durable Construction: High mechanical strength withstands transportation, short circuits, and voltage surges.

  • Customizable Voltage: Supports custom input/output voltage levels for specific application needs.

  • Broad Application Range: Ideal for industrial workshops, commercial buildings, schools, residential complexes, and more.

APPLICATION SCENARIO

  • Commercial Buildings: Reliable and safe power distribution for HVAC, elevators, and lighting systems.

  • Industrial Plants: Supplies clean power to motors, controls, and automated machinery.

  • Hospitals: Delivers stable voltage to sensitive diagnostic and medical equipment.

  • Data Centers & IT Rooms: Filters out harmonics and ensures uninterrupted service.

  • Educational Institutions: Quiet and safe for classrooms and lab environments.

COMPANY PROFILE
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
