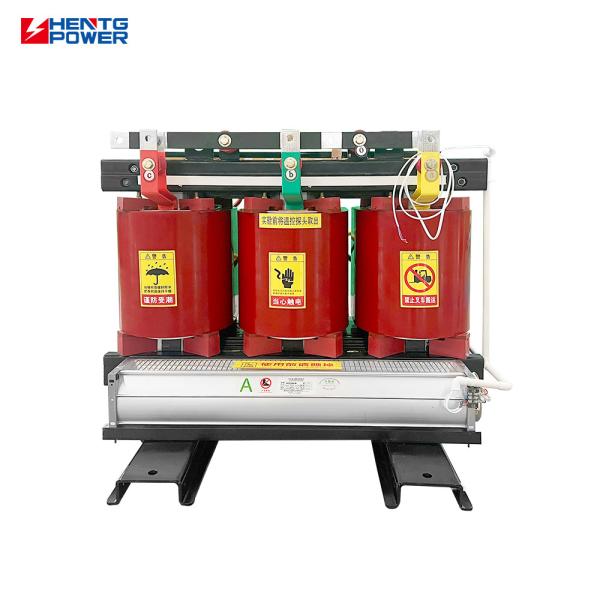

Air Cooled 1250kVA Dry Distribution Transformer Long Lasting Epoxy Resin Insulation
Air Cooled 1250kVA Dry Distribution Transformer Long Lasting Epoxy Resin Insulation
Air Cooled 1250kVA Dry Distribution Transformer Long Lasting Epoxy Resin Insulation
Air Cooled 1250kVA Dry Distribution Transformer Long Lasting Epoxy Resin Insulation
Air Cooled 1250kVA Dry Distribution Transformer Long Lasting Epoxy Resin Insulation
Air Cooled 1250kVA Dry Distribution Transformer Long Lasting Epoxy Resin Insulation
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Price :
CN¥6691/units
Certification :
CE
MOQ :
2 sets
Frequency :
50Hz, 60Hz
Phase :
Three
Coil Number :
Multi Winding, Two Windings, Three Windings, Single Winding
application :
Electronic
Coil Structure :
layer coil, Disc Coil, round coil, Shell-Type Coil
Output Voltage :
400V
Input Voltage :
10kV
Type :
Dry Type Transformer
Vector Group :
Dyn11 / Yyn0
Warranty :
36 Mon
Product name :
SC(B)13 Dry Type Transformer
Winding Material :
100% Copper
Advantage :
High Stability & Long Service Life
Type of cooling :
With Cooling Fans
Tapping Range :
2X2.5%
Working Frequency :
50/60Hz
Rated Frequency :
50Hz
Form :
Pouring Type
Use :
Airport High-rise Pier
Rated Hv Voltage :
10.5kv
Standard :
GB1094-1996/IEC
Rated Current :
92.4/2309.4A
Low Voltage :
10 - 0.4/0.23kV
Usage :
Power,Distribution Transformer
Type Of Cooling :
AN/AF
Description
SCB13 Series 1250kVA Dry-Type Transformer | High-Efficiency, Safe, and Long-Lasting Power Distribution Transformer
Product Specifications
Attribute Value
Frequency 50Hz, 60Hz
Phase Three
Winding Material 100% Copper
Output Voltage 400V
Input Voltage 10kV
Type Dry Type Transformer
Vector Group Dyn11 / Yyn0
Warranty 36 Months
Type of Cooling AN/AF
Standard GB1094-1996/IEC
Technical Performance Data
Rated Capacity (KVA) Vector Group Voltage Combination No-load Loss Load Loss No-load Current Impedance
30 Yyn0 / Dyn11 10 6.3 6 135 640 2 4.0
50 195 900 2
1250 1500 8720 0.85
Product Overview

The SCB13 Series 1250kVA Dry-Type Transformer is engineered for high-performance and reliability in medium- to large-scale power distribution systems. With its innovative epoxy resin insulation and energy-efficient design, this transformer offers safe, noise-reduced, and low-maintenance operation. It's perfect for industrial, commercial, and utility applications where consistent and clean power is critical.

Key Features
  • Rated Capacity: 1250kVA - Ideal for medium to large commercial and industrial power systems
  • Epoxy Resin Insulation - Flame-retardant, moisture-resistant insulation for improved safety and reliability
  • High-Efficiency Core - Low-loss magnetic core technology reduces operational costs and increases energy savings
  • Air-Cooled (AN) - No oil required, using natural air convection for efficient heat dissipation
  • Low Noise Operation - ≤ 55 dB, perfect for noise-sensitive environments like hospitals, schools, and offices
Key Benefits
  • Lower Energy Consumption - Reduced load and no-load losses mean lower operational costs over time
  • Zero Oil Risk - No oil leaks or fire hazards, making it an eco-friendly and safe choice for indoor environments
  • Maintenance-Free - No need for oil checks, cooling fans, or complex inspections, saving time and money
  • Longevity and Durability - The high-quality resin insulation ensures a long lifespan and protection against moisture and contamination
Applications
  • Industrial Facilities: Powers machinery, automation systems, and production lines with stable, reliable energy
  • Commercial Buildings: Ideal for large-scale HVAC systems, lighting, and office equipment
  • Data Centers: Ensures stable, clean power for servers, IT systems, and critical infrastructure
  • Renewable Energy Projects: Integrates seamlessly with wind and solar power systems to supply stable grid power
Manufacturer Information
Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

We always provide a pre-production sample before mass production and conduct final inspection before shipment. We provide QC & test reports and accept Factory Acceptance Tests (FAT). Our factory can manufacture oil type and dry type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standards.

Why choose us?

We have a professional and independent drawing team and technical team that can confirm all drawing contents within 7 days. Our technical team includes 30+ senior engineers offering 24-hour online service with responses within 30 minutes.
